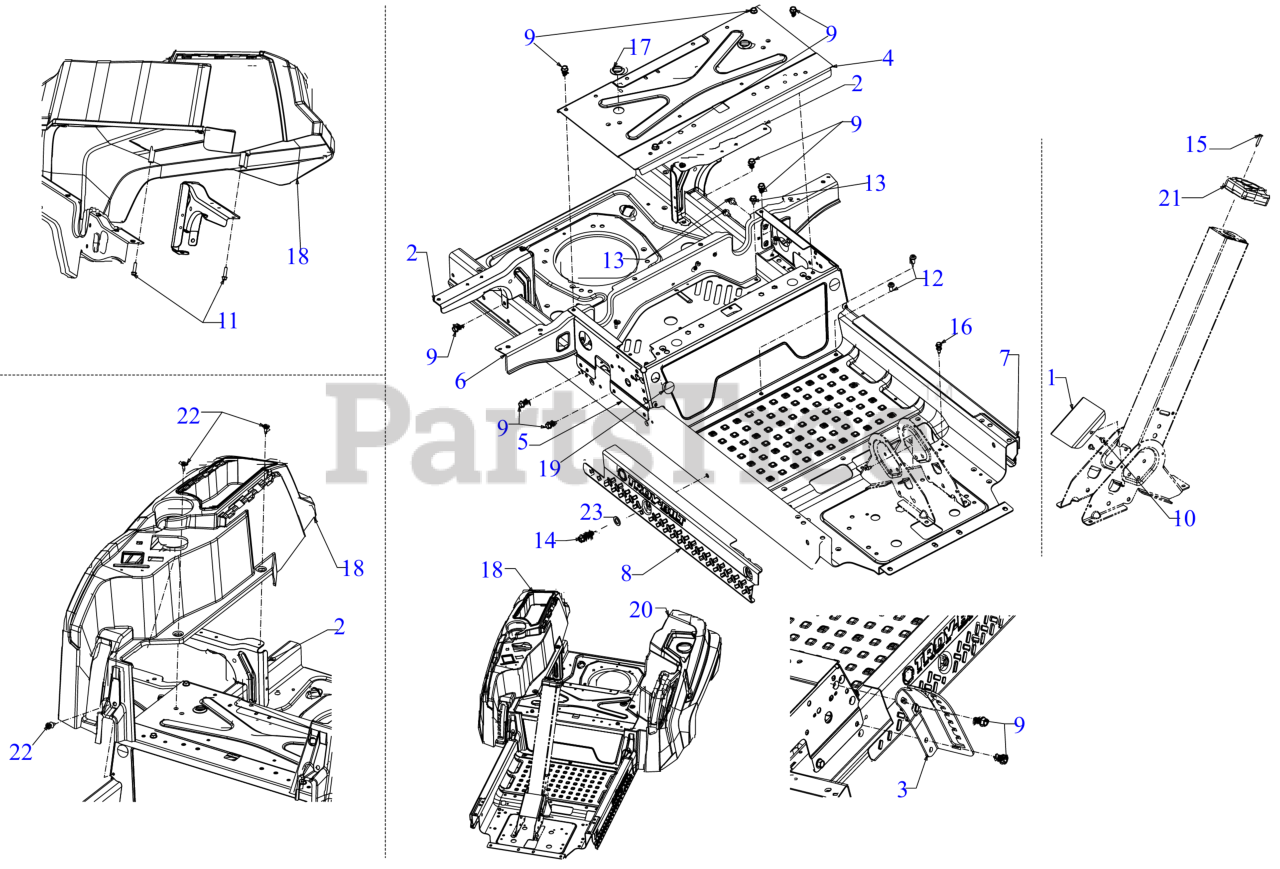

17ARCBDW309 - Troy-Bilt Mustang XP Pivot S 54" Zero-Turn Mower (2020) Platform Parts Diagram

Mustang XP Pivot S 54" Zero-Turn Mower

Platform Parts Diagram

  • Title

1

MTD 703-08622

LOWER STEERING COVER

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 703-08622-0637

COVER-STRG COLUMN - POWDER BLACK (0637)

$7.99

$

Usually ships in 3-6 days

0

MTD 703-08622-4021

CVR-STRG COLUMN - CUB YELLOW 2 (4021)

$6.49

$

Usually ships in 3-6 days

0

MTD 703-08622-4033

CVR-STRG COLUMN - FLINT MICA (4033)

$6.49

$

Usually ships in 3-6 days

0

$6.49

$

Usually ships in 3-6 days

0

2

MTD 703-08720C

REAR TANK BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

$26.99

$

Usually ships in 3-6 days

0

3

MTD 703-08762C

HEIGHT INDEX BRACKET

$16.99

$

In Stock, only 1 left!

0

4

MTD 703-09186J

SEATBOX TOP PLATE

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 703-09186J-0606

PLT-SEATBOX TOP - MAJESTIC ORANGE (0606)

$39.99

$

Usually ships in 3-6 days

0

MTD 703-09186J-0638

PLT-SEATBOX TOP - MTD/TROY-BILT RED (0638)

$39.99

$

Usually ships in 3-6 days

0

MTD 703-09186J-4021

PLT-SEATBOX TOP - CUB YELLOW 2 (4021)

$48.99

$

Usually ships in 3-6 days

0

MTD 703-09186J-4033

PLT-SEATBOX TOP - FLINT MICA (4033)

$39.99

$

Usually ships in 3-6 days

0

MTD 703-09186J-4044

PLT-SEATBOX TOP - CRAFTSMAN RED (4044)

$39.99

$

Usually ships in 3-6 days

0

$39.99

$

Usually ships in 3-6 days

0

5

MTD 703-09320F

SEAT FRAME

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 703-09320F-0606

FRAME-SEAT BOX - MAJESTIC ORANGE (0606)

$76.99

$

Usually ships in 3-6 days

0

MTD 703-09320F-0637

FRAME-SEAT BOX - POWDER BLACK (0637)

$94.99

$

Usually ships in 3-6 days

0

MTD 703-09320F-0638

FRAME-SEAT BOX - MTD/TROY-BILT RED (0638)

$76.99

$

Usually ships in 3-6 days

0

MTD 703-09320F-0662

FRAME-SEAT BOX - OYSTER GRAY (0662)

$76.99

$

Usually ships in 3-6 days

0

MTD 703-09320F-0691

FRAME-SEAT BOX - BLACK JACK (0691)

$76.99

$

Usually ships in 3-6 days

0

MTD 703-09320F-4021

FRAME-SEAT BOX - CUB YELLOW 2 (4021)

$94.99

$

Usually ships in 3-6 days

0

MTD 703-09320F-4033

FRAME-SEAT BOX - FLINT MICA (4033)

$76.99

$

Usually ships in 3-6 days

0

MTD 703-09320F-4044

FRAME-SEAT BOX - CRAFTSMAN RED (4044)

$88.99

$

Usually ships in 3-6 days

0

$76.99

$

Usually ships in 3-6 days

0

6

MTD 703-09332B

SEATBOX REAR BRACKET
(Superseded to 703-11179)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 703-09332B-0606

BRKT-SEATBOX REAR - MAJESTIC ORANGE (0606)

$47.99

$

Usually ships in 3-6 days

0

MTD 703-09332B-0637

BRKT-SEATBOX REAR - POWDER BLACK (0637)

$47.99

$

Usually ships in 3-6 days

0

MTD 703-09332B-0638

BRKT-SEATBOX REAR - MTD/TROY-BILT RED (0638)

$47.99

$

Usually ships in 3-6 days

0

MTD 703-09332B-0662

BRKT-SEATBOX REAR - OYSTER GRAY (0662)

$47.99

$

Usually ships in 3-6 days

0

MTD 703-09332B-0691

BRKT-SEATBOX REAR - BLACK JACK (0691)

$47.99

$

Usually ships in 3-6 days

0

MTD 703-09332B-4021

BRKT-SEATBOX REAR - CUB YELLOW 2 (4021)

$54.99

$

Usually ships in 3-6 days

0

MTD 703-09332B-4033

BRKT-SEATBOX REAR - FLINT MICA (4033)

$47.99

$

Usually ships in 3-6 days

0

MTD 703-09332B-4044

BRKT-SEATBOX REAR - CRAFTSMAN RED (4044)

$47.99

$

Usually ships in 3-6 days

0

$47.99

$

Usually ships in 3-6 days

0

7

MTD 703-09851B

FRAME SUPPORT (LH)

Note: *CHOOSE COLOR WHEN ORDERING*

$56.99

$

Usually ships in 3-6 days

0

8

MTD 703-09852A

FRAME SUPPORT (RH)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 703-09852A-4033

SUPPORT-FRAME RH - FLINT MICA (4033)

$56.99

$

Usually ships in 3-6 days

0

$56.99

$

Usually ships in 3-6 days

0

9

MTD 710-04484

SCREW 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

10

MTD 710-05070A

SCREW 1/4-20 x .5

$6.99

$

In Stock, Qty 7

0

11

MTD 710-05109

SCREW 5/16-14 x 1

$3.99

$

In Stock, only 3 left!

0

12

MTD 710-06096

SCREW 5/16-18 X.75

$6.99

$

Usually ships in 3-6 days

0

13

MTD 710-0607

SCREW 5/16-18 x .500

$6.99

$

In Stock, Qty 11

0

14

MTD 710-3005

SCREW 3/8-16 x 1.25 GR5

$3.99

$

In Stock, Qty 20+

0

15

MTD 710-1331

SCREW #10-16 x 1.25

$4.49

$

In Stock, only 2 left!

0

16

MTD 710-1652

SCREW 1/4-20X.625

$4.49

$

In Stock, Qty 20+

0

17

MTD 726-3045A

PLUG

$4.99

$

In Stock, Qty 6

0

18

MTD 931-09335

CONSOLE (RH)

$115.99

$

In Stock, only 1 left!

0

19

MTD 731-09477

PLASTIC PLUG

$4.49

$

Usually ships in 3-6 days

0

20

MTD 931-10106

CONSOLE (LH)

$116.99

$

Usually ships in 3-6 days

0

21

MTD 731-11491A

STEERING COLUMN COVER

$14.99

$

Usually ships in 3-6 days

0

22

MTD 738-05090

SHOULDER SCREW M6-1 .368 X.115

$3.49

$

In Stock, Qty 20+

0

23

MTD 736-0140

FLAT WASHER

$7.49

$

In Stock, Qty 7

0
