17ARCBDW011 - Troy-Bilt Mustang XP Pivot S 54" Zero-Turn Mower (2016) Seat Parts Diagram

Mustang XP Pivot S 54" Zero-Turn Mower

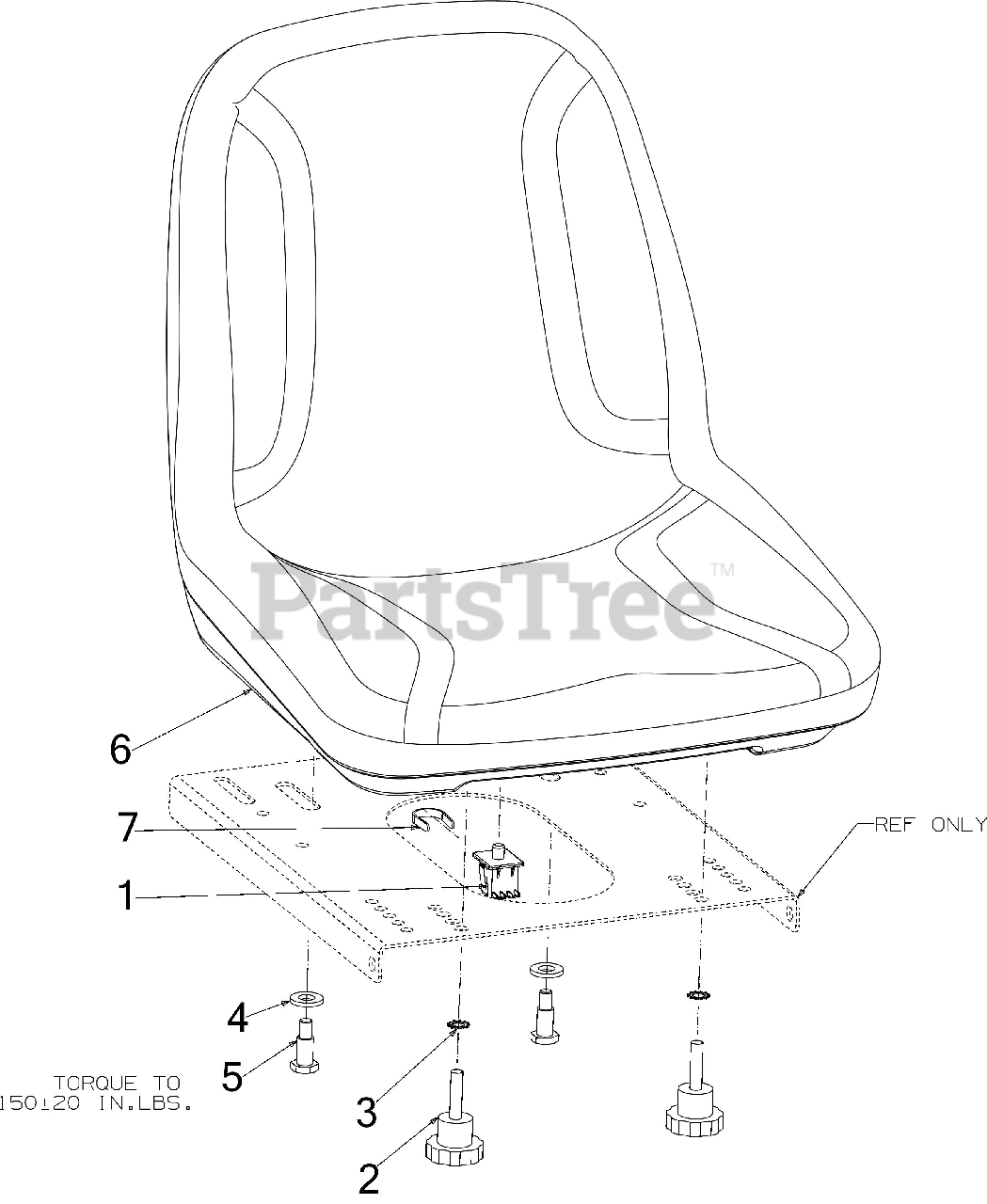

Seat Parts Diagram

  • Title
1

Troy-Bilt 925-05013

SEAT SWITCH

$31.99

$

In Stock, only 4 left!

0

2

Troy-Bilt 731-05131

SEAT ADJUST KNOB
(Superseded to 731-05131A)

$14.99

$

In Stock, only 3 left!

0

3

Troy-Bilt 736-0148

LOCK WASHER 3/8

$3.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 936-0326

FLAT WASHER .510 x 1.000 x .125
(Superseded to 736-0326)

$4.49

$

In Stock, only 2 left!

0

5

Troy-Bilt 938-0145

SHOULDER SCREW .500

$6.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 757-05004

SEAT-18" 4 PT MTG
(Superseded to 757-05368)

$269.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 783-06448

RETAINING CLIP

$5.99

$

In Stock, only 3 left!

0
