17ARCACW309 - Troy-Bilt Mustang XP 54" Zero-Turn Mower (2015) Seat Adjustment Parts Diagram
Mustang XP 54" Zero-Turn Mower

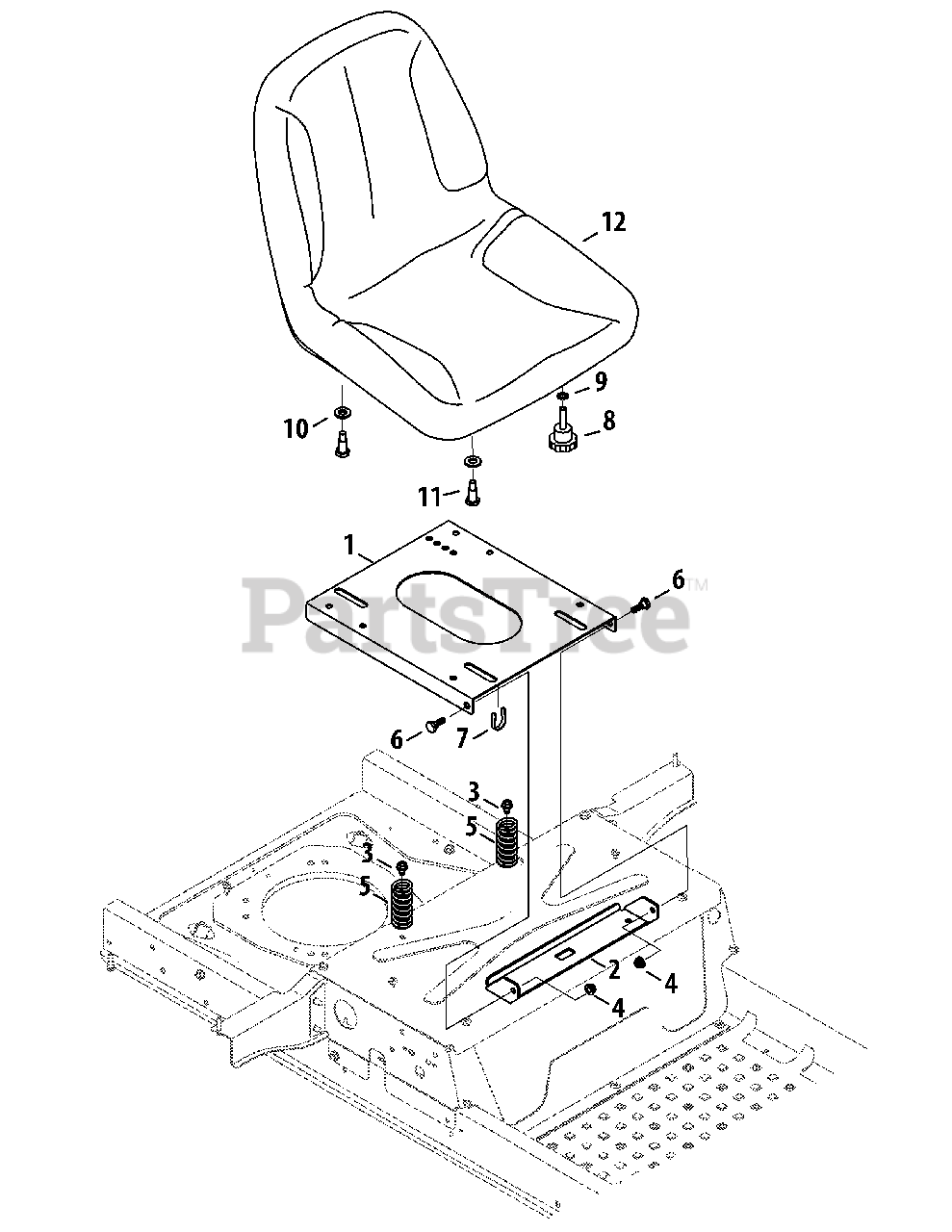

Seat Adjustment Parts Diagram
MTD 703-09603A-0637
Seat Mount Bracket
$84.99
$
Usually ships in 3-6 days
MTD 703-09633-0637
SEAT PIVOT BRACKET (POWDER BLACK)
$32.99
$
Usually ships in 3-6 days
MTD 710-1260A
Hex Washer Screw, 5/16-18 x .750
$3.99
$
In Stock, Qty 20+
MTD 712-04063
Flange Lock Nut, 5/16-18
$3.99
$
In Stock, Qty 20+
MTD 732-04035
Spring, Compression, 1.28 OD x 3.125 Lg
$10.99
$
In Stock, only 1 left!
$4.49
$
In Stock, Qty 20+
MTD 783-06448
Clip
$5.99
$
In Stock, only 3 left!
$14.99
$
In Stock, only 3 left!
MTD 736-0148
External Tooth Lock Washer, 3/8
$3.99
$
In Stock, Qty 20+
$4.49
$
In Stock, only 2 left!
MTD 938-0145
Shoulder Screw, 3/8-16
$6.99
$
Usually ships in 3-6 days
$269.99
$
Usually ships in 3-6 days
