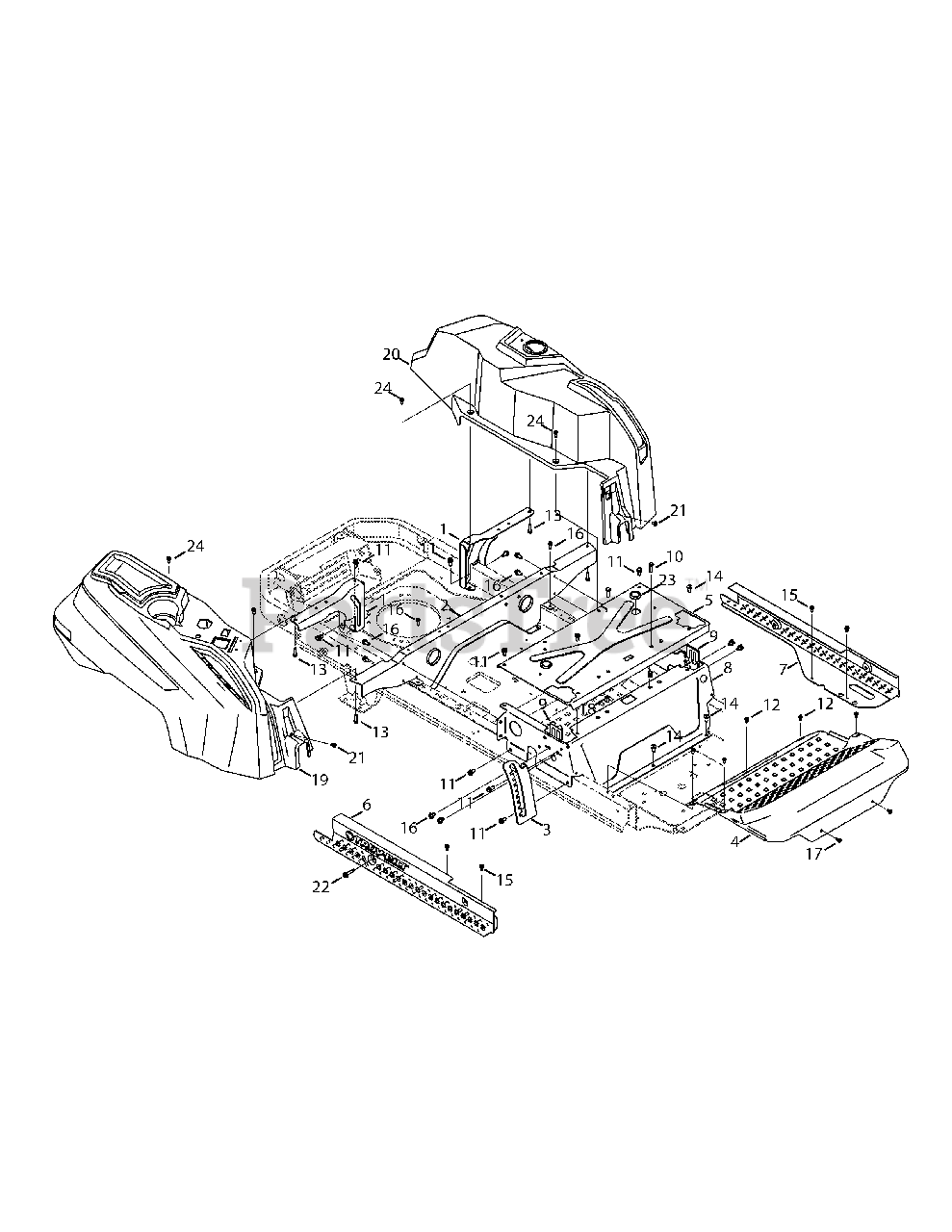

17ARCACW309 - Troy-Bilt Mustang XP 54" Zero-Turn Mower (2015) Operators Platform Parts Diagram

Mustang XP 54" Zero-Turn Mower

Operators Platform Parts Diagram

  • Title

1

MTD 703-08720A-0638

Rear Tank Bracket
(Superseded to 703-08720B-0638)

$32.99

$

Usually ships in 3-6 days

0

2

MTD 703-09332A-0638

Rear Seatbox Brace
(Superseded to 703-11179)

$47.99

$

Usually ships in 3-6 days

0

3

MTD 703-08762C

Height Index Bracket

$16.99

$

In Stock, only 1 left!

0

4

MTD 703-08902A-0637

Floor Board

$167.99

$

Usually ships in 3-6 days

0

5

MTD 703-09045D-0638

Seatbox Plate
(Superseded to 703-09045J-0637)

$45.99

$

Usually ships in 3-6 days

0

6

MTD 703-09119-0638

Frame Support, RH
(Superseded to 703-09119B-0638)

$49.99

$

Usually ships in 3-6 days

0

7

MTD 703-09139-0638

Frame Support, LH
(Superseded to 703-09139C-0638)

$42.99

$

Usually ships in 3-6 days

0

8

MTD 703-09320

Seat Frame

Variations

MTD 703-09320-0606

FRAME-SEAT BOX - MAJESTIC ORANGE (0606)

$76.99

$

Usually ships in 3-6 days

0

MTD 703-09320-0637

FRAME-SEAT BOX - POWDER BLACK (0637)

$94.99

$

Usually ships in 3-6 days

0

MTD 703-09320-0638

FRAME-SEAT BOX - MTD/TROY-BILT RED (0638)

$76.99

$

Usually ships in 3-6 days

0

MTD 703-09320-0691

FRAME-SEAT BOX - BLACK JACK (0691)

$76.99

$

Usually ships in 3-6 days

0

MTD 703-09320-4021

FRAME-SEAT BOX - CUB YELLOW 2 (4021)

$94.99

$

Usually ships in 3-6 days

0

MTD 703-09320-4033

FRAME-SEAT BOX - FLINT MICA (4033)

$76.99

$

Usually ships in 3-6 days

0

MTD 703-09320-4044

FRAME-SEAT BOX - CRAFTSMAN RED (4044)

$88.99

$

Usually ships in 3-6 days

0

$77.99

$

Usually ships in 3-6 days

0

9

MTD 703-09211A-0637

Lapbar Brace Bracket

$7.99

$

Usually ships in 3-6 days

0

10

MTD 710-0643

Hex Cap Screw, 5/16-18 x 1.00

$6.99

$

In Stock, Qty 5

0

11

MTD 710-04484

SCREW 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

12

MTD 710-05070A

Self Tapping Screw, 1/4-20 x .50

$6.99

$

In Stock, Qty 7

0

13

MTD 710-05109

Hex Washer Screw, 5/16-14 x 1.00

$3.99

$

In Stock, only 3 left!

0

14

MTD 710-05424

Self Tapping Screw, 5/16-18 x .750

$3.49

$

In Stock, only 3 left!

0

15

MTD 710-0599

Hex Washer Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

16

MTD 710-0607

Hex Washer Screw, 5/16-18 x .50

$6.99

$

In Stock, Qty 11

0

17

MTD 710-06096

Screw, Self-Tapping, 5/16-18, 0.750

$6.99

$

Usually ships in 3-6 days

0

18

MTD 728-04068

Nut, 5/16-18

$4.49

$

Usually ships in 3-6 days

0

19

MTD 931-09040

RH Console

$116.99

$

In Stock, only 1 left!

0

20

MTD 931-10106

LH Console

$116.99

$

Usually ships in 3-6 days

0

21

MTD 738-04549A

TORX SHOULDER SCREW 1/4-20

$7.49

$

In Stock, only 2 left!

0

22

MTD 710-1315

Hex Washer Screw, 3/8-16 x 1.25

$4.49

$

In Stock, Qty 20+

0

23

MTD 726-3045A

Button Plug

$4.99

$

In Stock, Qty 6

0

24

MTD 738-05090

Shoulder Screw, .368 x .115, M6-1

$3.49

$

In Stock, Qty 20+

0
