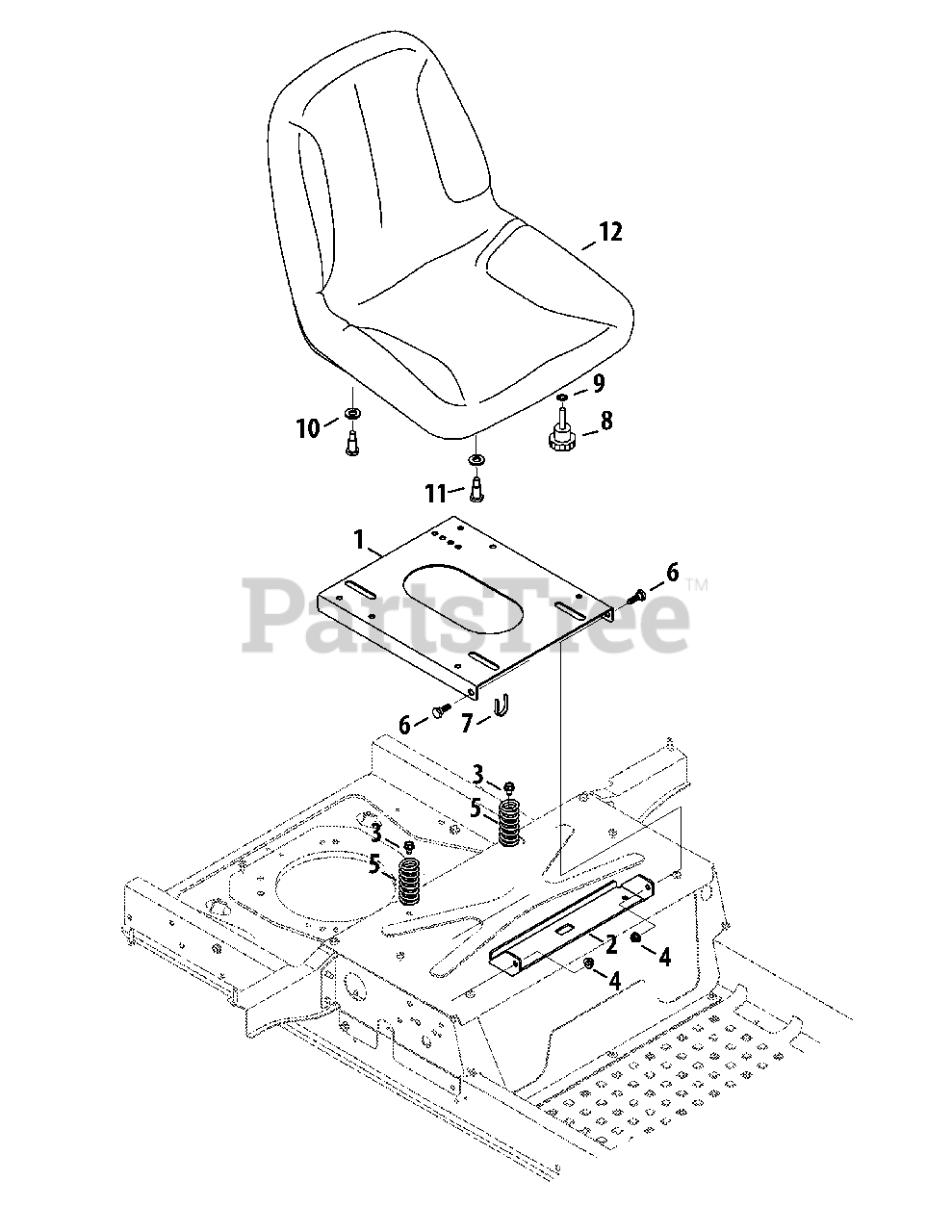

17ARCACP211 - Troy-Bilt Mustang XP 50" Zero-Turn Mower (2014) Seat Adjustment Parts Diagram

Mustang XP 50" Zero-Turn Mower

Seat Adjustment Parts Diagram

  • Title

1

Troy-Bilt 703-09603-0637

Seat Mount Bracket
(Superseded to 703-09603A-0637)

$84.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 703-09633-0637

Seat Bracket

$32.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 710-1260A

Hex Washer Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

5

Troy-Bilt 732-04035

Spring, Compression, 1.28 OD x 3.125 Lg

$10.99

$

In Stock, only 3 left!

0

6

Troy-Bilt 938-0296

Shoulder Screw, .437 x .268, 5/16-18
(Superseded to 738-0296)

$4.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 783-06448

Clip

$5.99

$

In Stock, only 3 left!

0

8

Troy-Bilt 731-05131

Knob Assembly
(Superseded to 731-05131A)

$14.99

$

In Stock, only 3 left!

0

9

Troy-Bilt 736-0148

External Tooth Lock Washer, 3/8

$3.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 936-0326

Flat Washer, .510 x 1.00 x .125
(Superseded to 736-0326)

$4.49

$

In Stock, only 2 left!

0

11

Troy-Bilt 938-0145

Shoulder Screw, 3/8-16

$6.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 757-05004

Seat
(Superseded to 757-05368)

$269.99

$

Usually ships in 3-6 days

0
