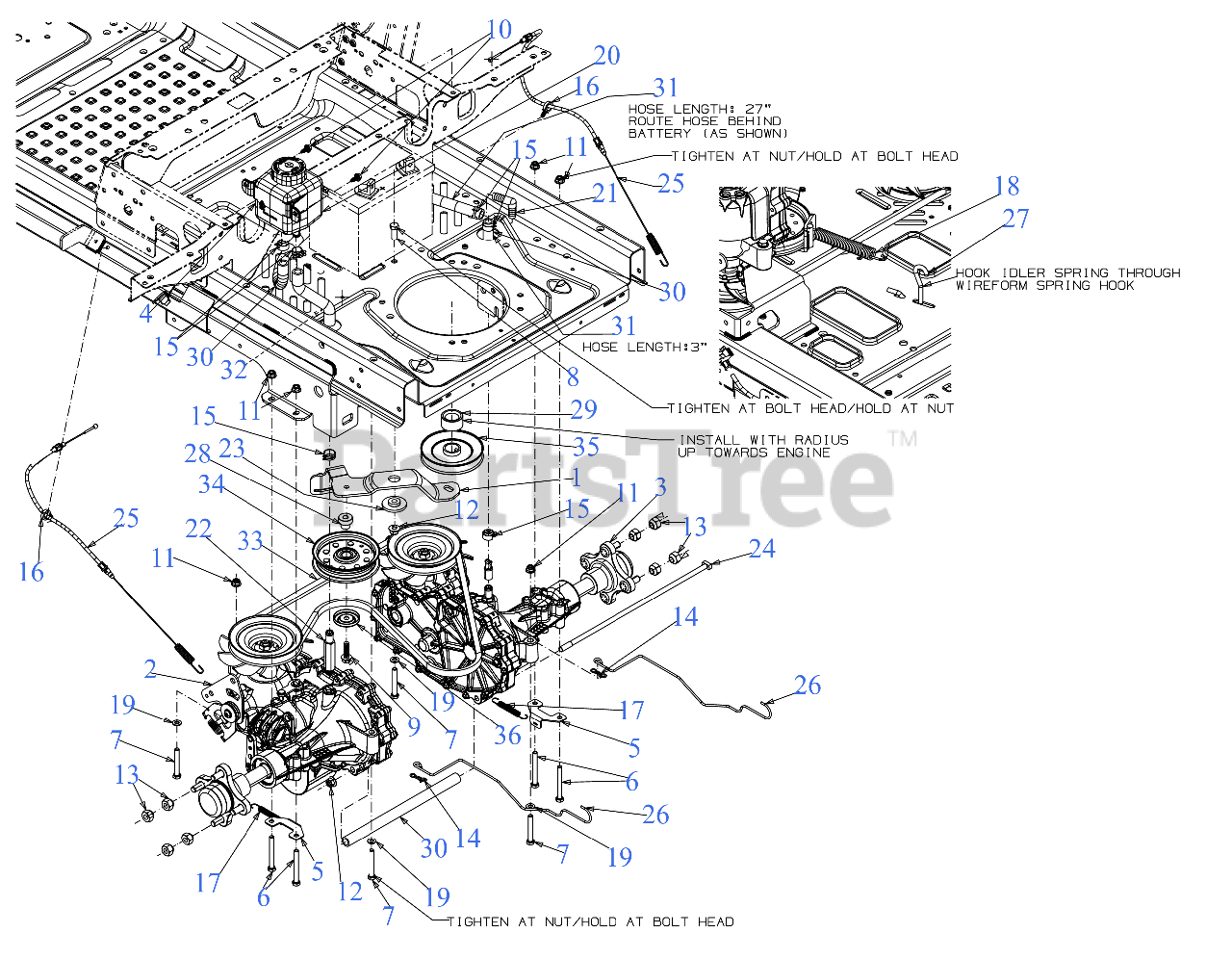

17ANDALD066 - Troy-Bilt Mustang XP 60" Zero-Turn Mower (2019) Drive Parts Diagram

Mustang XP 60" Zero-Turn Mower

Drive Parts Diagram

  • Title

1

Troy-Bilt 903-05256

IDLER BRACKET ASSEMBLY
(Superseded to 603Z05256)

$42.99

$

In Stock, only 2 left!

0

2

Troy-Bilt 918-06020B

TRANSMISSION (LH)

$1796.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 918-06021B

TRANSMISSION (RH)

$1796.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 631-04286

HYDRAULIC TANK

$41.99

$

In Stock, only 1 left!

0

5

Troy-Bilt 703-09323

BRAKE RETURN BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Troy-Bilt 703-09323-0637

BRACKET-BRAKE RETU - POWDER BLACK (0637)

$9.99

$

In Stock, only 1 left!

0

Troy-Bilt 703-09323-0691

BRACKET-BRAKE RETURN - BLACK JACK (0691)

$9.99

$

In Stock, only 1 left!

0

$8.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 710-0176

HEX SCREW 5/16-18 x 2.75

$4.49

$

In Stock, only 2 left!

0

7

Troy-Bilt 710-0395

HEX SCREW 5/16-18 x 2.25 GR5

$4.99

$

In Stock, only 1 left!

0

8

Troy-Bilt 710-0514

SCREW 3/8-16 x 1 GR5

$4.49

$

In Stock, Qty 20+

0

9

Troy-Bilt 710-1315

SCREW 3/8-16 X1.250

$4.49

$

In Stock, only 2 left!

0

10

Troy-Bilt 710-1652

SCREW 1/4-20X.625

$4.49

$

In Stock, Qty 20+

0

11

Troy-Bilt 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 5

0

12

Troy-Bilt 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 712-3050

LUG NUT 7/16-14

$9.99

$

In Stock, Qty 5

0

14

Troy-Bilt 714-04040

BOW TIE COTTER PIN 1/4-5/16

$1.49

$

In Stock, Qty 20+

0

15

Troy-Bilt 926-0324

FUEL HOSE CLAMP .75

$7.49

$

Usually ships in 3-6 days

0

16

Troy-Bilt 726-3055

CABLE RETAINER CLIP

$6.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 732-04488

EXTENSION SPRING .38 OD x 3.25 LG

$6.49

$

In Stock, only 3 left!

0

18

Troy-Bilt 732-05559

EXTENSION SPRING .75 DIA x 5.87

$14.99

$

In Stock, only 1 left!

0

19

Troy-Bilt 936-0264

FLAT WASHER .344 x .62

$6.99

$

In Stock, only 3 left!

0

20

OIL 20W50

$

$

Not available

21

Troy-Bilt 737-04342

90 DEGREE NYLON FITTING

$8.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 737-05023

EXTENSION FITTING 9/16-18

$19.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 738-04162C

SHOULDER SPACER

$13.99

$

In Stock, Qty 20+

0

24

Troy-Bilt 738-04251A

SUPPORT TUBE ROD

$14.99

$

Usually ships in 3-6 days

0

25

Troy-Bilt 946-05068

PARK BRAKE CABLE

$34.99

$

Usually ships in 3-6 days

0

26

Troy-Bilt 747-05657B

HYDRO BYPASS ROD

$14.99

$

Usually ships in 3-6 days

0

27

Troy-Bilt 747-06074

IDLER SPRING HOOK

$23.99

$

In Stock, only 2 left!

0

28

Troy-Bilt 748-05029A

SHOULDER SPACER

$4.99

$

In Stock, Qty 20+

0

29

Troy-Bilt 748-05079

ENGINE PULLEY SPACER

$7.49

$

In Stock, only 1 left!

0

30

Troy-Bilt 750-06147A

TRANSMISSION SPACER .75OD x 11.31

$23.99

$

Usually ships in 3-6 days

0

31

Troy-Bilt 751-0588-30

FUEL LINE 1/2"ID x 30"

$43.99

$

Usually ships in 3-6 days

0

32

Troy-Bilt 751-15123B

EXPANSION TANK HOSE

$19.99

$

Usually ships in 3-6 days

0

33

Troy-Bilt 954-04317A

TRANSMISSION DRIVE BELT A x 67

$50.99

$

In Stock, only 2 left!

0

33

Troy-Bilt 490-501-C069

Cub Cadet TRANS DRIVE BELT A x 67 RZT

Note: Retail Packaged Part

$50.99

$

In Stock, only 1 left!

0

33

Troy-Bilt 490-501-Y069

Troy-Bilt TRANSMISSION DRIVE BELT

Note: Retail Packaged Part

$50.99

$

In Stock, only 2 left!

0

34

Troy-Bilt 756-05042

IDLER PULLEY 4.25 DIA

$31.99

$

In Stock, Qty 20+

0

35

Troy-Bilt 756-05623

TRANSMISSION DRIVE PULLEY
(Superseded to 756-05623A)

$32.99

$

In Stock, only 1 left!

0

36

Troy-Bilt 783-08389

IDLER PULLEY CAP

$5.99

$

In Stock, Qty 20+

0
