17ANCACZ066 - Troy-Bilt Mustang XP 50" Zero-Turn Mower, FAB Deck (2017) Deck Parts Diagram

Mustang XP 50" Zero-Turn Mower, FAB Deck

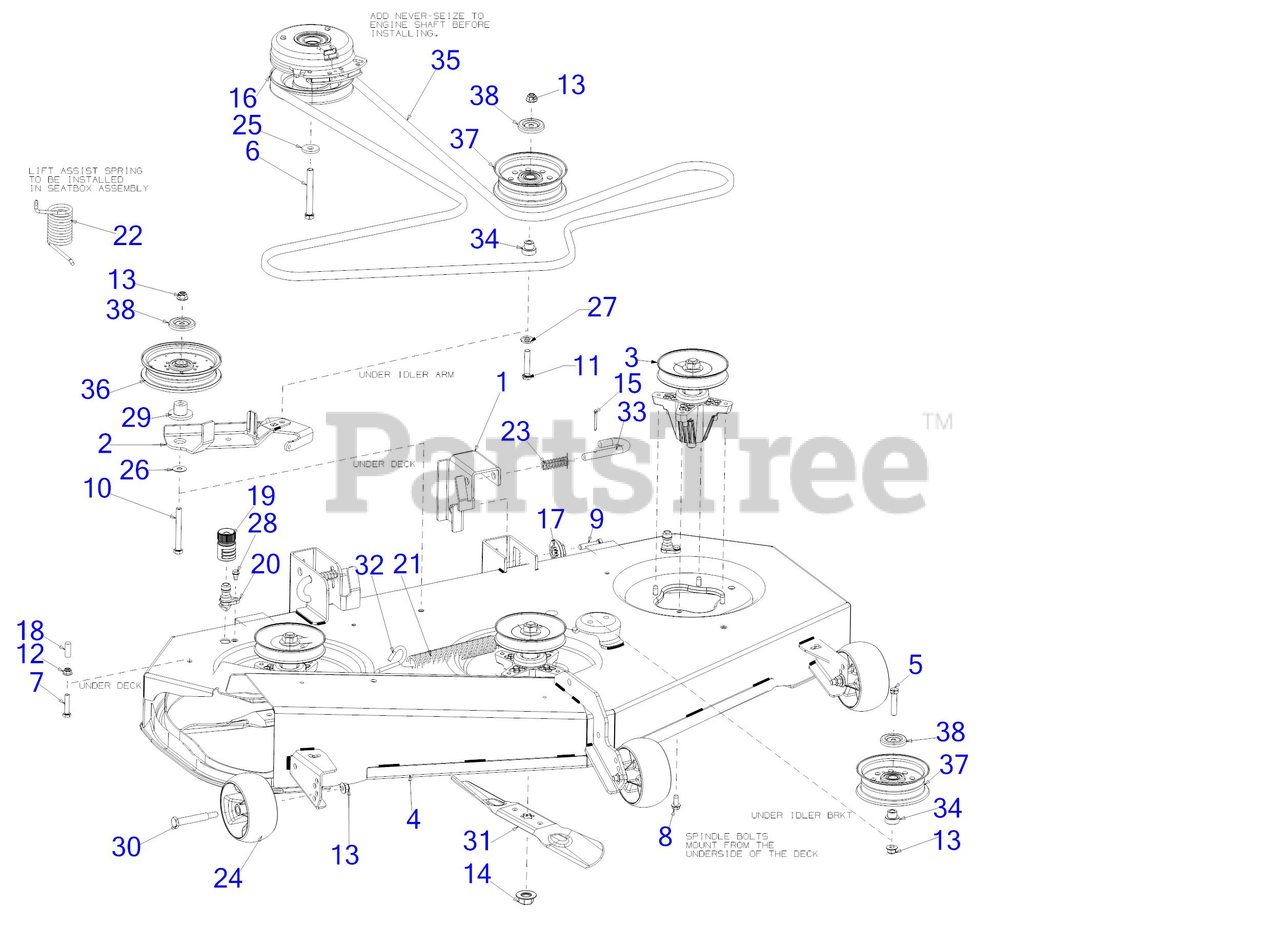

Deck Parts Diagram

  • Title

1

MTD 603-05303

DECK HANGER BRACKET (LH)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Troy-Bilt 603-05303-0606

DECK HANGER BRACKET (LH) (MAJESTIC ORANGE) - MAJESTIC ORANGE (0606)

$65.99

$

Usually ships in 3-6 days

0

Troy-Bilt 603-05303-4033

DECK HANGER BRACKET (LH) (FLINT MICA) - FLINT MICA (4033)

$65.99

$

Usually ships in 3-6 days

0

$56.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 603-05350

DECK IDLER BRACKET ASSEMBLY
(Superseded to 603-05350B)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Troy-Bilt 603-05350-0637

Deck Idler Bracket Assembly - POWDER BLACK (0637)

$69.99

$

Usually ships in 3-6 days

0

$56.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 783-08690

BELT KEEPER
(Superseded to 783-08690A)

Note: *CHOOSE COLOR WHEN ORDERING*(Not Shown)

Variations

Troy-Bilt 783-08690-0637

Belt Keeper, Black - POWDER BLACK (0637)

$12.99

$

In Stock, Qty 20+

0

$11.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 918-06980

SPINDLE ASSEMBLY

Note: (See Separate Breakdown)

$126.99

$

In Stock, Qty 20+

0

4

MTD 983-05312

50"FAB DECK SHELL
(Superseded to 983-05374A)

Note: *CHOOSE COLOR WHEN ORDERING*

$906.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 710-0347

HEX SCREW 3/8-16 x 1.75 GR5

$5.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 710-04379A

SCREW 7/16-20 x 3.5 GR5

$6.49

$

In Stock, only 3 left!

0

7

Troy-Bilt 710-0805A

SCREW 5/16-18 x 1.5 LG

$4.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 710-1260A

SCREW 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 710-3120

SCREW 3/8-16X1.5 GR5

$3.99

$

In Stock, Qty 19

0

10

Troy-Bilt 710-3130

SCREW 3/8-16 x 3.25 GR8

$10.99

$

In Stock, only 4 left!

0

11

Troy-Bilt 710-3144

SCREW 3/8-16 x 2.0 GR5

$4.49

$

In Stock, Qty 20+

0

12

Troy-Bilt 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

14

Troy-Bilt 712-0417A

HEX NUT

$6.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 714-0162

COTTER PIN-5/32 DIA

$4.99

$

In Stock, Qty 20+

0

16

Troy-Bilt 917-05209

ELECTRIC PTO CLUTCH

$545.99

$

In Stock, only 1 left!

0

17

Troy-Bilt 917-05298

DECK ADJUSTMENT GEAR

$13.99

$

In Stock, Qty 16

0

18

Troy-Bilt 720-05075

VINYL CAP

$4.49

$

In Stock, only 2 left!

0

19

Troy-Bilt 921-04041

WATER NOZZLE

$23.99

$

In Stock, Qty 20+

0

20

Troy-Bilt 731-07487

DECK WASH NOZZLE

$4.49

$

In Stock, only 1 left!

0

21

Troy-Bilt 732-04927

EXTENSION SPRING

$22.99

$

In Stock, Qty 20+

0

22

Troy-Bilt 732-04947A

TORSION SPRING

$18.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 932-3127

COMPRESSION SPRING

$4.49

$

In Stock, Qty 20+

0

24

Troy-Bilt 734-04155

DECK WHEEL

$20.99

$

In Stock, Qty 20+

0

25

Troy-Bilt 736-0322

FLAT WASHER .445 x 1.248 x .170

$9.49

$

In Stock, Qty 8

0

26

Troy-Bilt 936-0344

FLAT WASHER
(Superseded to 736-0344)

$4.99

$

In Stock, Qty 20+

0

27

Troy-Bilt 736-3072

WASHER

$4.49

$

In Stock, Qty 20+

0

28

Troy-Bilt 738-04502

SHOULDER SCREW 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

29

Troy-Bilt 738-05081

SHOULDER SPACER

$7.49

$

In Stock, Qty 20+

0

30

Troy-Bilt 938-3056

SHOULDER BOLT

$9.49

$

In Stock, Qty 20+

0

31

Troy-Bilt 942-05052A

17.27" BLADE (2N1)

$28.99

$

In Stock, Qty 20+

0

32

Troy-Bilt 747-05608

DECK SPRING HOOK
(Superseded to 747-05608A)

$3.49

$

In Stock, Qty 20+

0

33

Troy-Bilt 747-06292

DECK RELEASE PIN

$11.99

$

In Stock, only 2 left!

0

34

Troy-Bilt 748-05029A

SHOULDER SPACER

$4.99

$

In Stock, Qty 20+

0

35

Troy-Bilt 954-05078

V-BELT B SEC x 143.5 LG

$111.99

$

In Stock, Qty 20+

0

36

Troy-Bilt 756-04511B

FLAT IDLER PULLEY

$53.99

$

In Stock, Qty 20+

0

37

Troy-Bilt 756-05034A

IDLER PULLEY 4.50" DIA

$45.99

$

In Stock, Qty 20+

0

38

Troy-Bilt 783-08389

IDLER PULLEY CAP

$5.99

$

In Stock, Qty 20+

0
