17AL3AGV099 - White Outdoor Zero-Turn Mower (2012) Mower Spindle Assembly Parts Diagram

Zero-Turn Mower

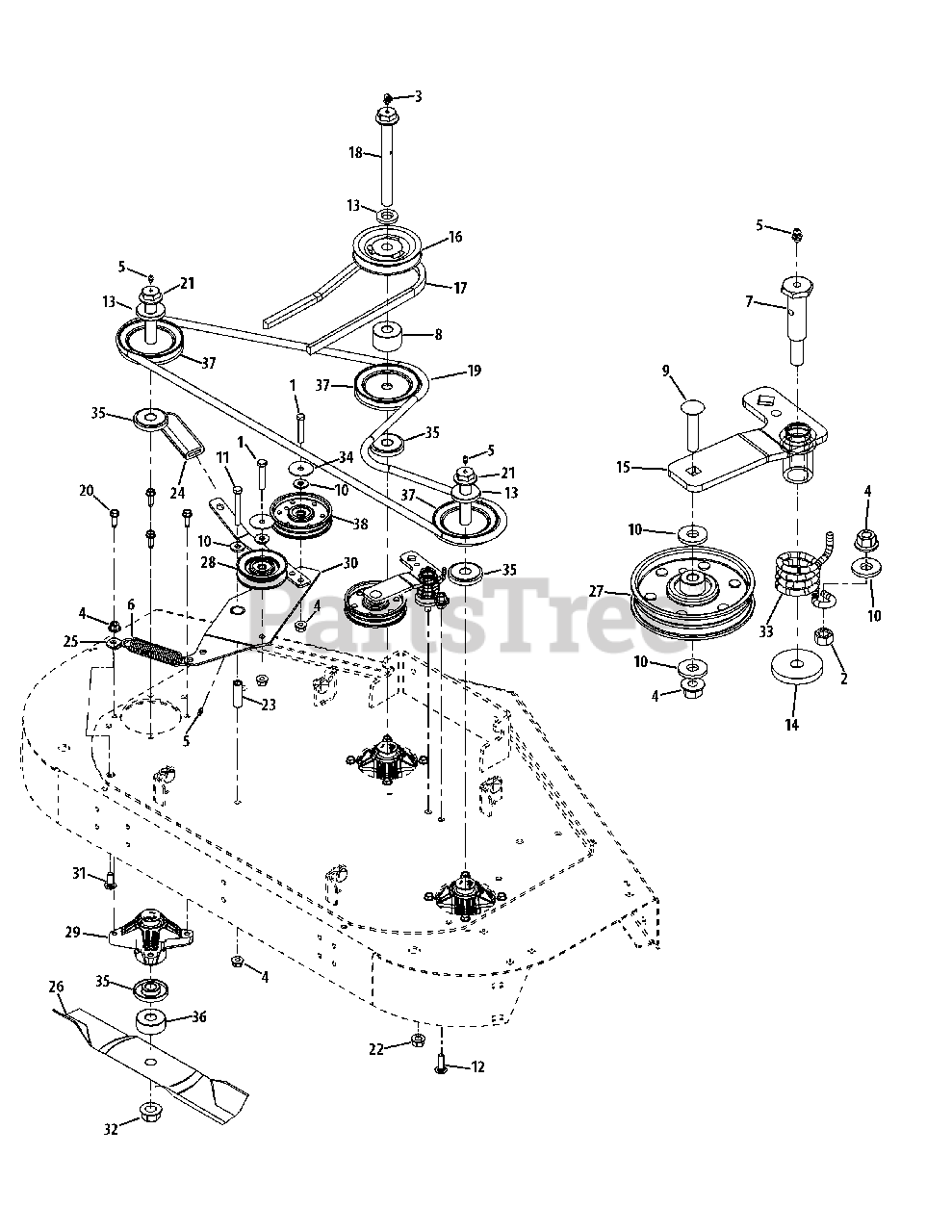

Mower Spindle Assembly Parts Diagram

  • Title

1

MTD 710-3011

Hex Screw, 3/8-16 x 2.00

$6.99

$

In Stock, Qty 20+

0

2

MTD 912-3017

Nut, 3/8-16
(Superseded to 712-3017)

$4.49

$

In Stock, Qty 20+

0

3

MTD 737-3004

Grease Fitting, 1/4-28 x .788

$11.99

$

In Stock, Qty 6

0

4

MTD 00022560

Flange Counter Lock Nut, 3/8-16
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

5

MTD 00060078

Grease Fitting, 1/4-28
(Superseded to 737-04345)

$4.99

$

In Stock, Qty 6

0

6

MTD 01000199

Extension Spring, 1.00 x 5.00 x .125

$17.99

$

In Stock, only 4 left!

0

7

MTD 01000302

Shoulder Bolt, .625 x 1.95
(Superseded to 738-3102)

$21.99

$

In Stock, only 1 left!

0

8

MTD 750-05518

Spacer, .760 x 2.00 x 1.27

$

$

Not available

9

MTD 710-0560

Carriage Bolt, 3/8-18 x 1.75

$6.99

$

In Stock, Qty 11

0

10

MTD 736-3052

Washer, .406 x 1.00 x .105

$4.49

$

In Stock, Qty 20+

0

11

MTD 01004127

Hex Screw, 3/8-16 x 3.00
(Superseded to 710-0521)

$5.49

$

In Stock, Qty 11

0

12

MTD 710-3034

Carriage Bolt, 3/8-16 x 1.25

$3.99

$

In Stock, Qty 5

0

13

MTD 748-3101A

Spacer, 2.0 x .75 ID x .31

$23.99

$

In Stock, only 3 left!

0

14

MTD 01003269

Washer, .438 x 1.75 x .250
(Superseded to 736-3082A)

$9.99

$

In Stock, Qty 16

0

15

MTD 01005737

Idler Arm Assembly

$108.99

$

In Stock, only 2 left!

0

15

MTD 01000308

Sleeve Bearing, .628 x .753 x .625
(Superseded to 741-04555)

Note: Not shown

$16.99

$

In Stock, Qty 18

0

16

MTD 01005202

Pulley

$126.99

$

Usually ships in 3-6 days

0

17

MTD 01009787

V-Belt, PTO
(Superseded to 01009787P)

$114.99

$

In Stock, only 1 left!

0

18

MTD 710-05110A

Hex Bolt, 3/4-16 x 7.7"

Note: Center Spindle bolt

$56.99

$

In Stock, only 3 left!

0

19

MTD 02000154

V-Belt, Deck
(Superseded to 02000154P)

$89.99

$

In Stock, only 1 left!

0

20

MTD 02000762

Hex Flange Screw, 5/16-18 x 1.00
(Superseded to 710-0602)

$4.49

$

In Stock, Qty 20+

0

21

MTD 710-05417

Hex Flange Bolt, 3/4-16 x 5.85"

Note: Outside Spindle bolt

$38.99

$

In Stock, only 1 left!

0

22

MTD 02000948

Flange Counter Lock Nut, 7/16-14
(Superseded to 712-04337)

$3.99

$

Usually ships in 3-6 days

0

23

MTD 02003640

Spacer, .390 x .625 x 1.88

$6.99

$

In Stock, Qty 10

0

24

MTD 02003740

Flat Grip, 1.0 x 3.2 x .25

$10.99

$

In Stock, only 1 left!

0

25

MTD 02004195

Spring Mount Bracket

$31.99

$

Usually ships in 3-6 days

0

26

MTD 02005017

Hi-Lift Blade, 17.0
(Superseded to 942-04417)

$28.99

$

In Stock, Qty 20+

0

27

MTD 02005077

Idler Pulley

$35.99

$

In Stock, Qty 20+

0

28

MTD 02005078

Idler Pulley

$36.99

$

In Stock, only 4 left!

0

29

MTD 918-04426

Spindle Assembly

Note: (Contains seals & bearings)

$112.99

$

In Stock, Qty 20+

0

29

MTD 921-3018A

Seal, Oil, Single Lip

Note: (Not shown)

$8.49

$

In Stock, Qty 20+

0

29

MTD 750-04409

Bearing Spacer

Note: (Not shown)

$20.99

$

In Stock, only 1 left!

0

29

MTD 941-04091

Bearing, Cup
(Superseded to 941-04299)

Note: (Not shown)

$6.99

$

In Stock, Qty 20+

0

29

MTD 941-04089

Bearing, Cone, .750" Tapered Roller
(Superseded to 941-04298)

Note: (Not shown)

$16.99

$

In Stock, Qty 19

0

29

MTD 737-3000

Fitting, Lube, 3/16 Drive
(Superseded to 937-3000)

Note: (Not shown) If equipped

$4.99

$

In Stock, Qty 20+

0

30

MTD 853-000029

Double Idler

$

$

Not available

31

MTD 710-3168

Carriage Bolt, 3/8-16 x 1.00

$3.99

$

In Stock, Qty 20+

0

32

MTD 712-3078

Flange Lock Nut, 3/4-16

$9.99

$

In Stock, Qty 20+

0

33

MTD 732-3067

Torsion Spring

$23.99

$

In Stock, only 1 left!

0

34

MTD 736-3040

Washer, .406 x 1.92 x .060

$6.49

$

In Stock, Qty 8

0

35

MTD 748-3065A

Deck Spindle Spacer

$13.99

$

In Stock, Qty 14

0

36

MTD 750-05184

Spacer, .760 x 2.000 x .790

$37.99

$

In Stock, only 4 left!

0

37

MTD 756-3089

Pulley

$36.99

$

In Stock, only 3 left!

0

38

MTD 02004447

Idler Pulley

$57.99

$

In Stock, Qty 20+

0
