17AL3AGV099 - White Outdoor Zero-Turn Mower (2012) Mower Deck Assembly Parts Diagram

Zero-Turn Mower

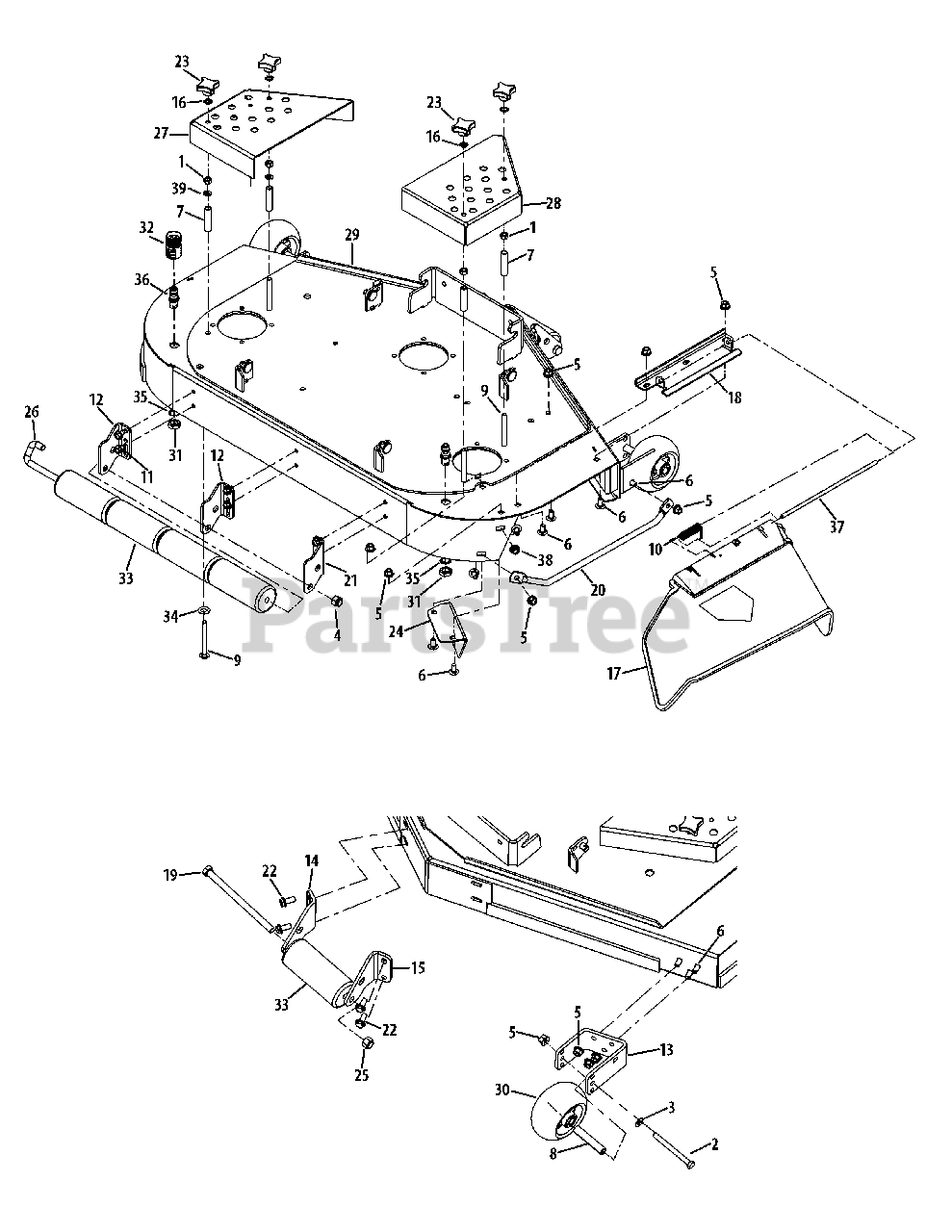

Mower Deck Assembly Parts Diagram

  • Title

1

MTD 912-3017

Nut, 3/8-16
(Superseded to 712-3017)

$4.49

$

In Stock, Qty 20+

0

2

MTD 00011925

Hex Screw, 3/8-16 x 4.00
(Superseded to 710-0411)

$8.49

$

In Stock, Qty 17

0

3

MTD 00012158

Washer, .406 x .813 x .063

$4.49

$

In Stock, Qty 9

0

4

MTD 712-3083

Hex Lock Nut, 1/2-13

$4.49

$

In Stock, Qty 20+

0

5

MTD 00022560

Flange Counter Lock Nut, 3/8-16
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

6

MTD 710-3178

Carriage Bolt, 3/8-16 x .75

$4.49

$

In Stock, Qty 20+

0

7

MTD 01000395

Spacer, .400 x .560 x 2.45

$

$

Not available

8

MTD 750-3193

Spacer, .390 x .620 x 3.04

$18.99

$

In Stock, Qty 20+

0

9

MTD 710-0521

Carriage Bolt, 3/8-16 x 3.50

$5.49

$

In Stock, Qty 11

0

10

MTD 732-04797

Torsion Spring, .639 x 2.16 x .12

$11.99

$

In Stock, only 4 left!

0

11

MTD 01004304

Flange Screw, 3/8-16 x .500
(Superseded to 710-0773)

$7.49

$

In Stock, only 3 left!

0

12

MTD 01004707-0637

Roller Mount Bracket

$23.99

$

In Stock, Qty 13

0

13

MTD 01005243-0637

Anit-Scalp Front Mount Bracket

$57.99

$

In Stock, only 2 left!

0

14

MTD 02004497-0637

LH Front Roller Mount Bracket

$32.99

$

In Stock, only 1 left!

0

15

MTD 02004500-0637

RH Front Roller Mount Bracket

$19.99

$

Usually ships in 3-6 days

0

16

MTD 01005851

Washer, .398 x .694 x .032
(Superseded to 736-0148)

$3.99

$

In Stock, Qty 20+

0

17

MTD 01006693P

Chute Deflector

$68.99

$

In Stock, Qty 8

0

18

MTD 01006748-0637

Chute Deflector Bracket

$35.99

$

In Stock, Qty 10

0

19

MTD 01006961

Hex Screw, 1/2-20 x 7.50
(Superseded to 710-05385)

$11.99

$

In Stock, Qty 10

0

20

MTD 01008644

Finger Guard

$36.99

$

In Stock, only 1 left!

0

21

MTD 01008790-0637

RH Roller Mt. Bracket

$37.99

$

Usually ships in 3-6 days

0

22

MTD 01009243

Flange Screw, 3/8-16 x .875

$14.99

$

Usually ships in 3-6 days

0

23

MTD 02000040

Plastic Knob, 3/8-16

$20.99

$

In Stock, only 2 left!

0

24

MTD 02001235-0637

Micro Chute Baffle

$31.99

$

In Stock, only 3 left!

0

25

MTD 02002299

Nut, 1/2-20
(Superseded to 712-04316)

$3.99

$

In Stock, Qty 20+

0

26

MTD 02002799

J-Hook
(Superseded to 711-05664)

$22.99

$

In Stock, only 1 left!

0

27

MTD 02003605-0637

LH Belt Cover

$

$

Not available

28

MTD 02003606-0637

RH Belt Cover

$118.99

$

Usually ships in 3-6 days

0

29

MTD 02005231-0637

Deck Assembly

$

$

Not available

30

MTD 634-3159

Wheel

$34.99

$

In Stock, Qty 20+

0

31

MTD 912-0641

Hex Nut
(Superseded to 712-0641)

$6.49

$

In Stock, Qty 7

0

32

MTD 921-04041

Water Nozzle Adapter

$23.99

$

In Stock, Qty 20+

0

33

MTD 731-3005

Front Roller

$28.99

$

In Stock, Qty 20+

0

34

MTD 936-0272

Flat Washer, .510 x 1.00 x .060
(Superseded to 736-0272)

$4.99

$

In Stock, Qty 20+

0

35

MTD 936-0760

Lock Washer, 17 x 23.8 x 1.95

$4.49

$

In Stock, Qty 13

0

36

MTD 737-04003D

Water Deck Nozzle

$23.99

$

In Stock, Qty 6

0

37

MTD 747-3384

Chute Deflector Rod

$27.99

$

In Stock, only 1 left!

0

38

MTD 712-04065

Nut, Flange Lock, 3/8-16

$3.99

$

In Stock, Qty 20+

0

39

MTD 936-0169

Lock Washer, 3/8
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0
