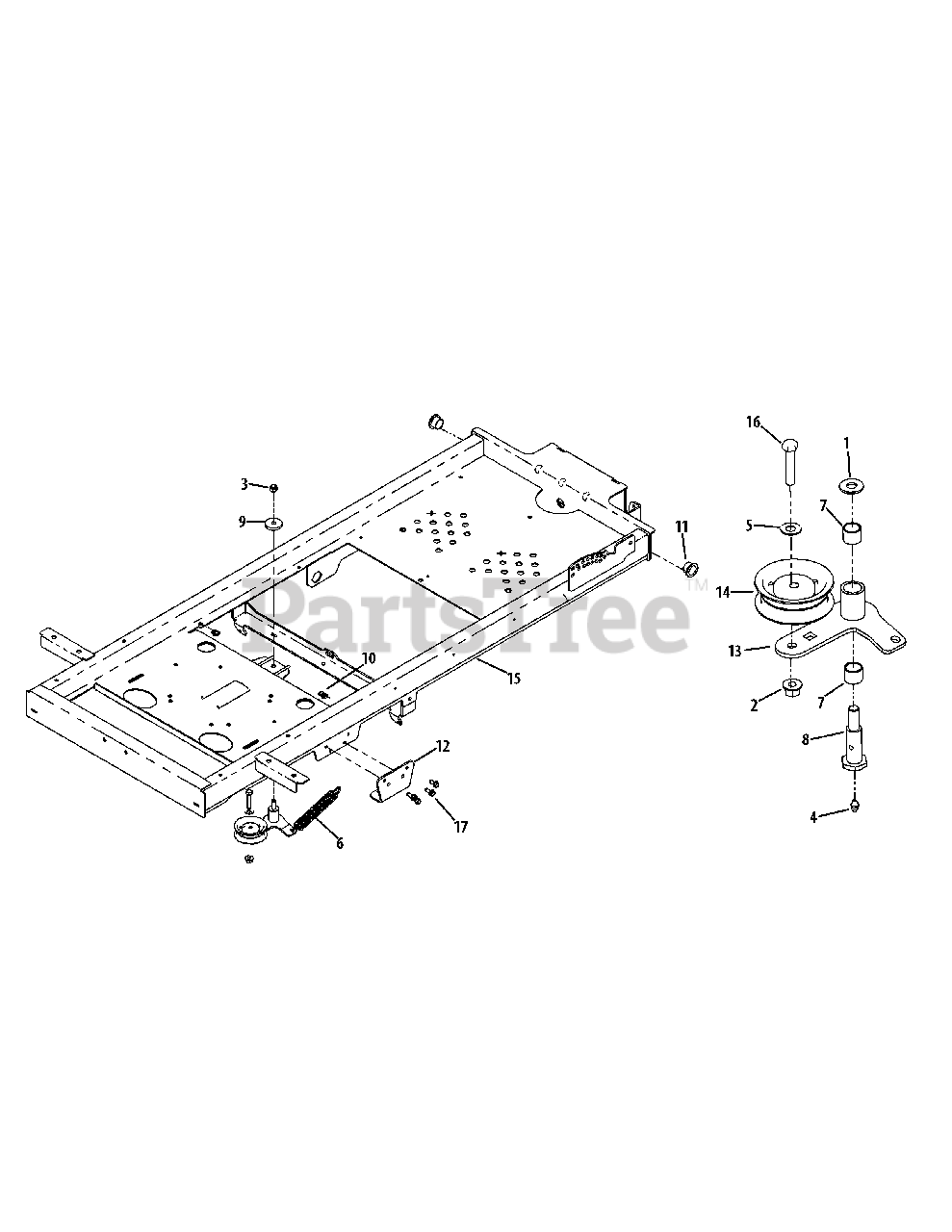

17AL3AGV099 - White Outdoor Zero-Turn Mower (2012) Frame & PTO Parts Diagram

Zero-Turn Mower

Frame & PTO Parts Diagram

  • Title

1

MTD 00006168

Flat Washer, 3/8
(Superseded to 936-3015)

$4.49

$

In Stock, Qty 20+

0

2

MTD 00022560

Flange Lock Nut, 3/8-16
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

3

MTD 712-0290

Nylock Nut, 7/16-14

$4.99

$

In Stock, Qty 11

0

4

MTD 00060078

Grease Fitting, 1/4-28 x 3/16
(Superseded to 737-04345)

$4.99

$

In Stock, Qty 6

0

5

MTD 00061053

Washer, 3/8

$3.99

$

Usually ships in 3-6 days

0

6

MTD 01000199

Extension Spring, 1.00 x 5.00

$17.99

$

In Stock, only 4 left!

0

7

MTD 01000308

Bearing Sleeve
(Superseded to 741-04555)

$16.99

$

In Stock, Qty 18

0

8

MTD 738-3108

Shoulder Bolt
(Superseded to 738-05004)

$22.99

$

In Stock, Qty 6

0

9

MTD 01003269

Flat Washer, 7/16 x 1.75
(Superseded to 736-3082A)

$9.99

$

In Stock, Qty 16

0

10

MTD 01008539P

U-Nut, 1/4-20
(Superseded to 726-3054)

$4.99

$

Usually ships in 3-6 days

0

11

MTD 02002628

Bronze Bushing, .875 x 1.50
(Superseded to 741-04552)

$9.49

$

In Stock, only 2 left!

0

12

MTD 02002641-0637

Transmission Mounting Bracket

$22.99

$

In Stock, only 1 left!

0

13

MTD 02003641

Idler Arm

$136.99

$

Usually ships in 3-6 days

0

14

MTD 02004558

Flat Idler Pully

$22.99

$

In Stock, only 2 left!

0

15

MTD 02004865-0637

Frame Assembly

$

$

Not available

16

MTD 710-0347

Hex Cap Screw, 3/8-16 x 1-3/4

$5.49

$

In Stock, Qty 20+

0

17

MTD 710-04484

Self Tapping Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0
