17AL3AGV099 - White Outdoor Zero-Turn Mower (2012) Engine Accessories Parts Diagram

Zero-Turn Mower

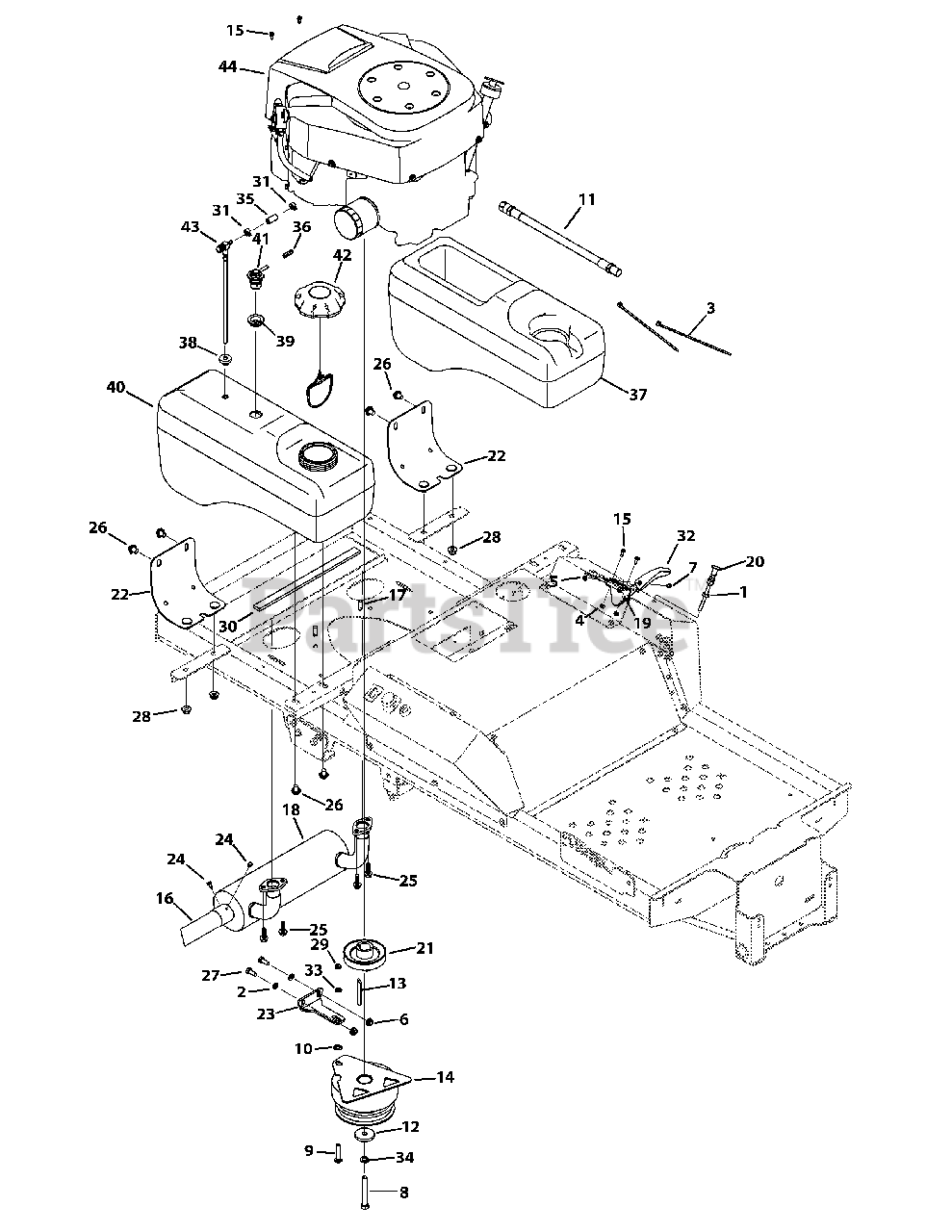

Engine Accessories Parts Diagram

  • Title

1

MTD 00011453

Jam Nut, 3/8-24

$3.99

$

Usually ships in 3-6 days

0

2

MTD 00012169

Washer, 344 x .688 x .063

$4.49

$

In Stock, only 2 left!

0

3

MTD 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

4

MTD 00014608

Nylock Nut, #10-32
(Superseded to 712-05003)

$3.49

$

In Stock, only 3 left!

0

5

MTD 00060056

Nut, #8-32

$6.99

$

In Stock, only 1 left!

0

6

MTD 712-3004A

Flange Counter Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

7

MTD 710-3217

Machine Screw, #8-32 x .356

$6.99

$

In Stock, Qty 7

0

8

MTD 710-0510

Hex Screw, 7/16-20 x 3.00

$11.99

$

In Stock, only 1 left!

0

9

MTD 710-0458

Carriage Bolt, 5/16-18 x 1.75

$4.49

$

In Stock, only 4 left!

0

10

MTD 01002710

Washer, .406 x .750 x .063

$6.49

$

Usually ships in 3-6 days

0

11

MTD 01003283

Oil Drain Hose

$84.99

$

Usually ships in 3-6 days

0

12

MTD 736-04131

Washer, .438 x 1.745 x .250

$15.99

$

In Stock, only 1 left!

0

13

MTD 01007533

Bevel Key, .250 x .250 x 2.75

$11.99

$

In Stock, only 1 left!

0

14

MTD 01008434P

PTO
(Superseded to 759-05064)

$514.99

$

In Stock, only 1 left!

0

15

MTD 01008531P

Screw, #10-32 x .500

$5.99

$

Usually ships in 3-6 days

0

16

MTD 01008623

Straight Exhaust Pipe

$

$

Not available

17

MTD 01009243

Flange Screw, 3/8-16 x .875

$14.99

$

Usually ships in 3-6 days

0

18

MTD 02000456

Kohler Muffler
(Superseded to 02000456P)

$

$

Not available

19

MTD 02000477

Throttle Control Cable
(Superseded to 02000477P)

$51.99

$

In Stock, Qty 7

0

20

MTD 02000478

Choke Cable
(Superseded to 02000478P)

$41.99

$

In Stock, only 1 left!

0

21

MTD 02003417

Transmission Pulley

$62.99

$

In Stock, Qty 9

0

22

MTD 603-04912-0637

Fuel Tank Mounting Bracket Assembly

$44.99

$

Usually ships in 3-6 days

0

23

MTD 703-07213

PTO Retainer Bracket

Variations

MTD 703-07213-0637

RETAINER ASM - CLU - POWDER BLACK (0637)

$26.99

$

Usually ships in 3-6 days

0

$24.99

$

Usually ships in 3-6 days

0

24

MTD 910-0224

Hex Washer Screw, #10-16 x .500

$3.99

$

In Stock, Qty 20+

0

25

MTD 710-04048

Hex Flange Screw, 5/16-18 x 1.0

$4.99

$

In Stock, Qty 7

0

26

MTD 710-05361

Hex Flange Screw, M10-1.5 x .500 x 8.8

$3.99

$

Usually ships in 3-6 days

0

27

MTD 710-3008

Hex Screw, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

28

MTD 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

29

MTD 712-3007

Jam Nut, 5/16-18

$6.99

$

In Stock, only 2 left!

0

30

MTD 721-04382

Foam Tape .75 x 25

$6.99

$

Usually ships in 3-6 days

0

31

MTD 726-0205

Hose Clamp, .490

$3.99

$

In Stock, Qty 20+

0

32

MTD 731-04914

Throttle Control Knob

$13.99

$

Usually ships in 3-6 days

0

33

MTD 936-0119

Lock Washer, 5/16

$4.99

$

In Stock, Qty 20+

0

34

MTD 936-0171

Lock Washer, 7/16
(Superseded to 736-0171)

$4.49

$

In Stock, Qty 5

0

35

MTD 751-10349

Low Permeation Fuel Hose, 1/4

$9.49

$

Usually ships in 3-6 days

0

36

MTD 751-12089

Mono Vent Hose, 3/16

$5.49

$

Usually ships in 3-6 days

0

37

MTD 951-12559

Utility Bin

$112.99

$

Usually ships in 3-6 days

0

38

MTD 735-04065

Fuel Tank Bushing

$14.99

$

In Stock, only 1 left!

0

39

MTD 735-04081

Rubber Grommet, 23.0 x 3.55

$4.99

$

In Stock, Qty 20+

0

40

MTD 951-04318A

Fuel Tank

$

$

Not available

41

MTD 751-12118

Fuel Rollover Valve

$35.99

$

In Stock, only 2 left!

0

42

MTD 951-12193A

Fuel Cap

$57.99

$

In Stock, only 4 left!

0

43

MTD 751-12478

Fuel Pick-Up Fitting (On/Off)

$52.99

$

In Stock, only 2 left!

0

44

MTD n/a

Engine SV840-3021

Note: Purchase locally

$

$

Currently unavailable
