17AFCACS011 - Troy-Bilt Mustang XP 42" Zero-Turn Mower (2013) Mower Deck Parts Diagram

Mustang XP 42" Zero-Turn Mower

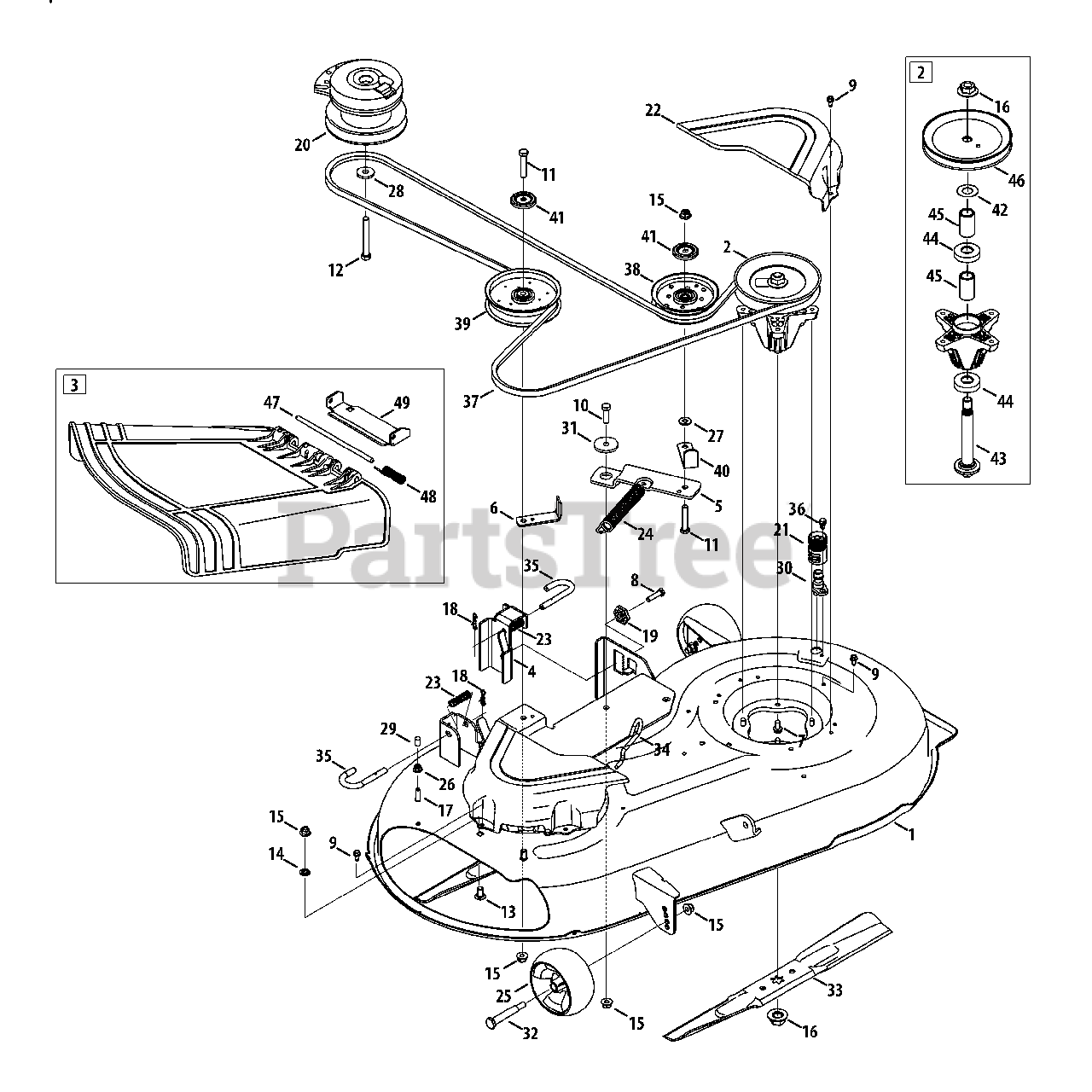

Mower Deck Parts Diagram

  • Title
1

Troy-Bilt 903-04927A-4033

42" Deck shell
(Superseded to 903-04927B-4033)

$753.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 918-04822A

Spindle Assembly
(Superseded to 918-04822B)

$121.99

$

In Stock, only 1 left!

0

3

Troy-Bilt 631-04288

Discharge Chute Assembly
(Superseded to 631-05191A)

$56.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 683-05031-4033

Deck Lift Bracket

$

$

Not available

5

Troy-Bilt 703-08336C-0637

Pivot Idler Bracket
(Superseded to 703-08336E)

$31.99

$

In Stock, only 1 left!

0

6

Troy-Bilt 703-08705-0637

Bracket, Belt Guard

$13.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 710-1260A

Hex Washer Head Screw, 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 710-0573

Hex Cap Screw, 5/16-18 x 1.25

$6.49

$

In Stock, Qty 13

0

9

Troy-Bilt 710-1652

Hex Washer Screw, 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

10

Troy-Bilt 710-3005

Hex Cap Screw, 3/8-16 x 1.25

$3.99

$

In Stock, Qty 20+

0

11

Troy-Bilt 710-3144

Hex Cap Screw, 3/8-16 x 2.00

$4.49

$

In Stock, Qty 20+

0

12

Troy-Bilt 710-3157A

Screw, 7/16-20 x 3.25

$10.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 710-3178

Carriage Screw, 3/8-16 x .75

$4.49

$

In Stock, Qty 20+

0

14

Troy-Bilt 712-0229

Push Nut, 3/8

$3.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

16

Troy-Bilt 712-0417A

Hex Flange Nut, 5/8-18

$6.99

$

In Stock, Qty 20+

0

17

Troy-Bilt 710-0376

Hex Cap Screw, 5/16-18 x 1.00

$3.99

$

In Stock, Qty 20+

0

18

Troy-Bilt 714-04040

Bow-Tie Cotter Pin, 72

$1.49

$

In Stock, Qty 20+

0

19

Troy-Bilt 917-04074

Deck Adjustment Gear

$13.99

$

In Stock, Qty 14

0

20

Troy-Bilt 917-05121

Electric PTO Clutch

$477.99

$

In Stock, only 2 left!

0

21

Troy-Bilt 921-04041

Water Nozzle Adapter

$23.99

$

In Stock, Qty 20+

0

22

Troy-Bilt 731-08698

Belt Cover
(Superseded to 731-08698B)

$21.99

$

In Stock, only 3 left!

0

23

Troy-Bilt 732-04652

Compression Spring, .535 x 1.751

$6.99

$

In Stock, only 3 left!

0

24

Troy-Bilt 732-04960

Extension Spring, .94 Dia. x 7.57

$14.99

$

In Stock, only 3 left!

0

25

Troy-Bilt 734-04155

Deck Ball Wheel, 5.0

$20.99

$

In Stock, Qty 20+

0

26

Troy-Bilt 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

27

Troy-Bilt 736-0262

Flat Washer, .385 x .870 x .092

$3.99

$

In Stock, Qty 20+

0

28

Troy-Bilt 736-0322

Flat Washer, .450 x 1.25 x .164

$9.49

$

In Stock, Qty 7

0

29

Troy-Bilt 720-05010

Cap, .290 x .500

$4.49

$

In Stock, Qty 7

0

30

Troy-Bilt 731-07487

Deck Wash Nozzle

$4.49

$

In Stock, only 1 left!

0

31

Troy-Bilt 738-04162C

Shoulder Spacer, .884 x .190

$13.99

$

In Stock, Qty 20+

0

32

Troy-Bilt 938-3056

Shoulder Screw, .5 x 2.5 x 3/8-16

$9.49

$

In Stock, Qty 20+

0

33

Troy-Bilt 942-04312

Blade, 2 in 1, 21.23
(Superseded to 942-04308A)

$31.99

$

In Stock, Qty 20+

0

34

Troy-Bilt 747-05608

Deck Spring Rod
(Superseded to 747-05608A)

$3.49

$

In Stock, Qty 20+

0

35

Troy-Bilt 747-06082

Deck Hanger Rod

$10.99

$

In Stock, Qty 7

0

36

Troy-Bilt 738-04278

Shoulder Screw, .500 x 1/4-20

$6.99

$

In Stock, Qty 5

0

$50.99

$

In Stock, only 3 left!

0

38

Troy-Bilt 756-04129B

Idler Pulley, 4.25 Dia.
(Superseded to 753-08171)

$35.99

$

In Stock, Qty 20+

0

39

Troy-Bilt 756-04511A

Idler Pulley, 5.00 Dia.
(Superseded to 756-04511B)

$53.99

$

In Stock, Qty 20+

0

40

Troy-Bilt 783-06368A-0637

Bracket Belt Guard

$21.99

$

In Stock, Qty 20+

0

41

Troy-Bilt 783-07236

Pulley Cap

$5.49

$

In Stock, only 4 left!

0

42

Troy-Bilt 936-0351

Washer, .760 x 1.50 x .030
(Superseded to 736-0351)

$4.49

$

In Stock, Qty 20+

0

43

Troy-Bilt 738-1186A

Spindle Shaft

$49.99

$

In Stock, Qty 14

0

44

Troy-Bilt 941-0919A

Ball Bearing
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

45

Troy-Bilt 750-04936

Spacer, .792 x 1.060 x 1.860

$6.99

$

In Stock, Qty 20+

0

46

Troy-Bilt 956-1227

Deck Pulley

$26.99

$

In Stock, only 4 left!

0

47

$8.99

$

In Stock, Qty 7

0

48

Troy-Bilt 732-04372

Torsion Spring

$10.99

$

In Stock, Qty 8

0

49

Troy-Bilt 783-06074A

Chute Bracket

$32.99

$

In Stock, only 1 left!

0
