17AFCACS011 - Troy-Bilt Mustang XP 42" Zero-Turn Mower (2013) Front Axle Parts Diagram

Mustang XP 42" Zero-Turn Mower

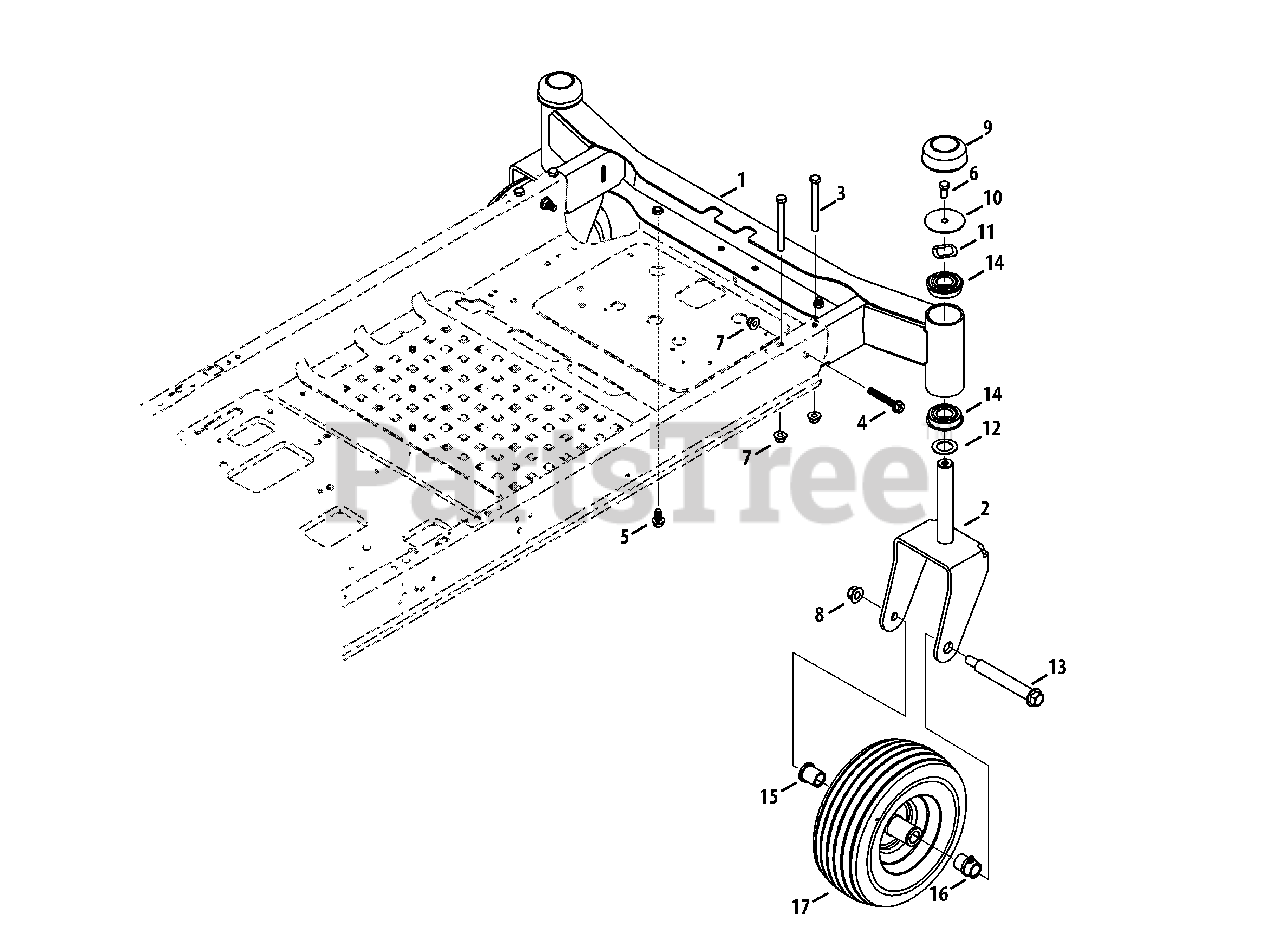

Front Axle Parts Diagram

  • Title

1

Troy-Bilt 603-05053-0638

Front Axle

$211.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 603-05057A-0638

Caster Wheel Bracket
(Superseded to 603-05057D-0638)

$105.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 710-04576

Hex Cap Screw, 3/8-16 x 3.75

$4.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 710-06045

Hex Flange Screw, 3/8-16 x 2.25

$5.49

$

In Stock, only 3 left!

0

5

Troy-Bilt 710-0623

Screw TT, 3/8-16 x .750

$4.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 710-3119

Hex Cap Screw, 3/8-16 x .750

$6.99

$

In Stock, only 1 left!

0

7

Troy-Bilt 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 712-04150

Flange Lock Nut, 1/2-13

$4.49

$

In Stock, Qty 20+

0

9

Troy-Bilt 731-09347

Cap

$5.99

$

In Stock, only 3 left!

0

10

Troy-Bilt 736-05022

Flat Washer, .406 x 2.50 x .060

$4.49

$

Usually ships in 3-6 days

0

11

Troy-Bilt 736-05033

Wave Washer, 1.25 x 1.00 x .300
(Superseded to 736-05033A)

$4.99

$

In Stock, Qty 17

0

12

Troy-Bilt 736-0745

Flat Washer, 1.010 x 1.56 x .060

$12.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 738-04182B

Shoulder Screw, 1/2-13

$26.99

$

In Stock, Qty 19

0

14

Troy-Bilt 941-05022

Ball Bearing
(Superseded to 941-05022A)

$20.99

$

In Stock, only 1 left!

0

15

Troy-Bilt 741-0516B

Flange Bearing, .76 x 1.0 x 1.2

$6.49

$

In Stock, Qty 20+

0

16

Troy-Bilt 741-0990B

Flange Bearing, .76 ID w/Lube Ftg.

$10.99

$

In Stock, Qty 20+

0

17

Troy-Bilt 634-04237B

Wheel Assembly, 11.0 x 4.0 x 5.0
(Superseded to 634-04237C)

$162.99

$

In Stock, Qty 6

0
