17AFCACS011 - Troy-Bilt Mustang XP 42" Zero-Turn Mower (2013) Controls Parts Diagram

Mustang XP 42" Zero-Turn Mower

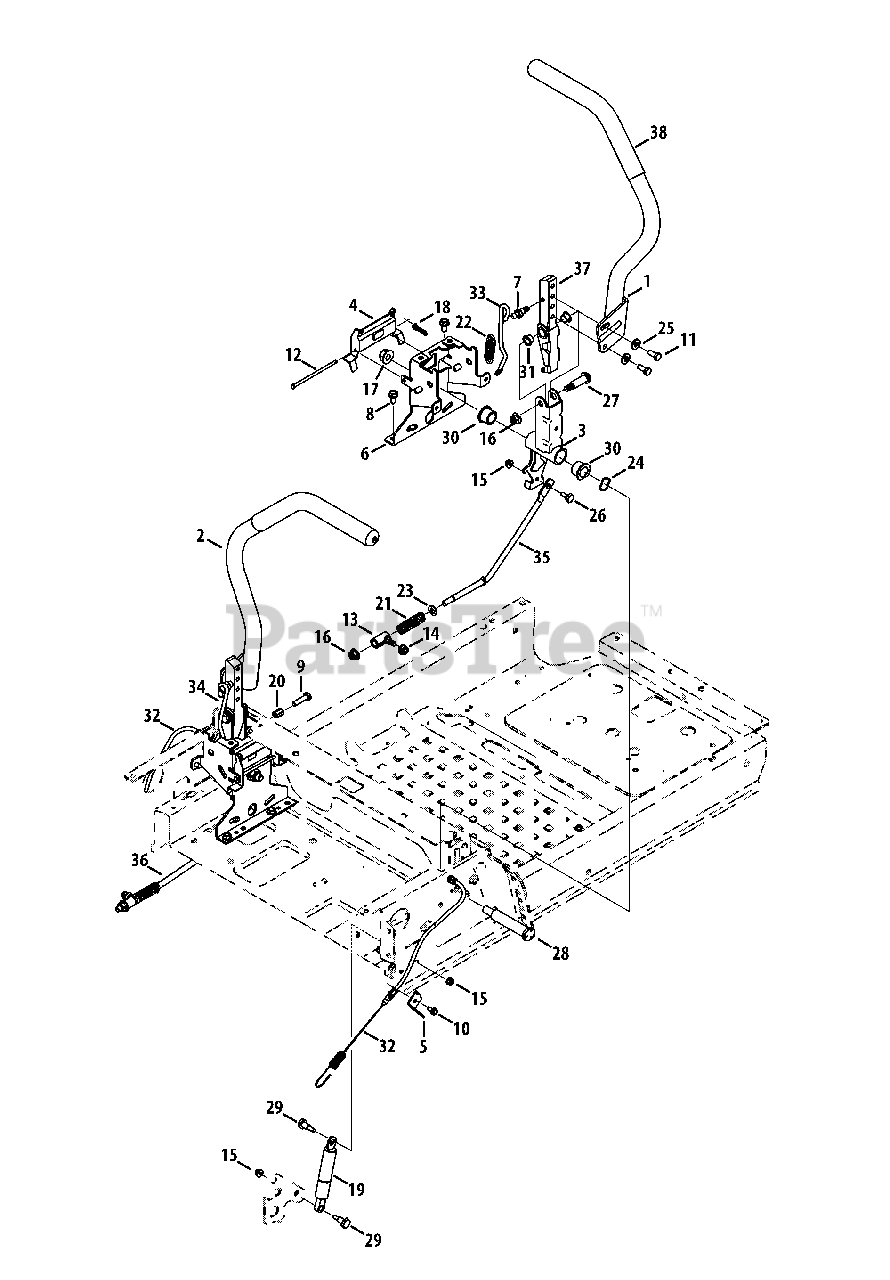

Controls Parts Diagram

  • Title

1

Troy-Bilt 603-05016A-0638

RH Lapbar Lever Assembly

$54.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 603-05019A-0638

LH Labpar Lever Assembly

$63.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 603-05033A-0637

Lapbar Pivot bracket

$42.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 703-09069-0637

Brake Lever Actuator

$6.49

$

Usually ships in 3-6 days

0

5

Troy-Bilt 703-09220-0637

Brake Cable Bracket

$4.49

$

Usually ships in 3-6 days

0

6

Troy-Bilt 703-09325-0637

Lapbar Pivot Support Bracket
(Superseded to 703-09325C-0637)

$32.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 710-04471

Screw, Shoulder Ball, 5/16-18 x .48

$27.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 710-04484

Hex Washer Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 710-0528

Hex Cap Screw, 5/16-18 x 1.25

$4.49

$

In Stock, Qty 20+

0

10

Troy-Bilt 710-0599

Hex Washer Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

11

Troy-Bilt 710-1880

Hex Head Screw, 5/16-18 x .75, Patch

$4.99

$

In Stock, Qty 11

0

12

Troy-Bilt 711-06068

Pin, .188 x 4.1

$6.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 711-06094A

Ferrule, 3/8 ID x .420 Shldr

$15.99

$

In Stock, only 1 left!

0

14

Troy-Bilt 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

16

Troy-Bilt 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

17

Troy-Bilt 712-04150

Flange Lock Nut, 1/2-13

$4.49

$

In Stock, only 1 left!

0

18

Troy-Bilt 714-04040

Bow-Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

19

Troy-Bilt 727-04400A

Dampener, .87 OD x 7.06 Lg

$63.99

$

In Stock, only 1 left!

0

20

Troy-Bilt 728-05012

Nut, 5/16-18

$5.49

$

Usually ships in 3-6 days

0

21

Troy-Bilt 732-05075

Compression Spring, .45 x 3.215

$4.49

$

In Stock, only 2 left!

0

22

Troy-Bilt 732-1162

Extension Spring, .56 x 2.31 x .105

$8.99

$

In Stock, only 3 left!

0

23

Troy-Bilt 936-0140

Flat Washer, .385 x .62 x .063
(Superseded to 736-0140)

$

$

Not available

24

Troy-Bilt 736-0621

Washer, Wave, .785 x 1.0 x .012

$17.99

$

In Stock, only 1 left!

0

25

Troy-Bilt 936-3008

Flat Washer, .344 x .750 x .120

$6.99

$

Usually ships in 3-6 days

0

26

Troy-Bilt 738-04419A

Shoulder Screw, .375 x .148 x 1/4-20

$4.49

$

In Stock, Qty 14

0

27

Troy-Bilt 738-05025

Shoulder Screw, .498 Dia. x 1.296

$7.49

$

Usually ships in 3-6 days

0

28

Troy-Bilt 738-05033

Shoulder Screw, .75 x 3.25 x 1/2-13

$16.99

$

In Stock, only 3 left!

0

29

Troy-Bilt 738-05034

Shoulder Screw, .395 Dia. x .56

$7.49

$

In Stock, only 1 left!

0

30

Troy-Bilt 741-04050

Bearing, .75 x 1.00 x .73

$4.49

$

Usually ships in 3-6 days

0

31

Troy-Bilt 741-0491

Flange Bearing, .500 x .34

$5.49

$

In Stock, only 3 left!

0

32

Troy-Bilt 946-05008

Park Brake Cable

$35.99

$

In Stock, Qty 7

0

33

Troy-Bilt 747-06085

Lapbar Detent Rod, RH

$6.49

$

Usually ships in 3-6 days

0

34

Troy-Bilt 747-06086

Lapbar Detent Rod, LH

$6.49

$

Usually ships in 3-6 days

0

35

Troy-Bilt 753-08201

Hydro Control Rod, Service Kit (not shown)

Note: (Replaces 747-05727, Built October 09, 2012 through January 25, 2013 (S/N 1J092H through 1A253H)) (Model 17AFCACS011)

$31.99

$

Usually ships in 3-6 days

0

35

Troy-Bilt 747-06149

Hydro Control Rod, RH
(Superseded to 747-06149A)

Note: (S/N 1A263H & after)

$15.99

$

Usually ships in 3-6 days

0

36

Troy-Bilt 753-08201

Hydro Control Rod, Service Kit (not shown)

Note: (Replaces 747-06003, Built October 09, 2012 through January 25, 2013 (S/N 1J092H through 1A253H)) (Model 17AFCACS011)

$31.99

$

Usually ships in 3-6 days

0

36

Troy-Bilt 747-06160

Hydro Control Rod, LH
(Superseded to 747-06160A)

Note: (S/N 1A263H & after)

$15.99

$

Usually ships in 3-6 days

0

37

Troy-Bilt 748-05000

Lower Arm

$69.99

$

Usually ships in 3-6 days

0

38

Troy-Bilt 720-05008

Lapbar Grip

$25.99

$

Usually ships in 3-6 days

0
