17AF2ACP711 - Troy-Bilt Mustang RZT 50" Zero-Turn Mower (2007) Engine Connections Parts Diagram

Mustang RZT 50" Zero-Turn Mower

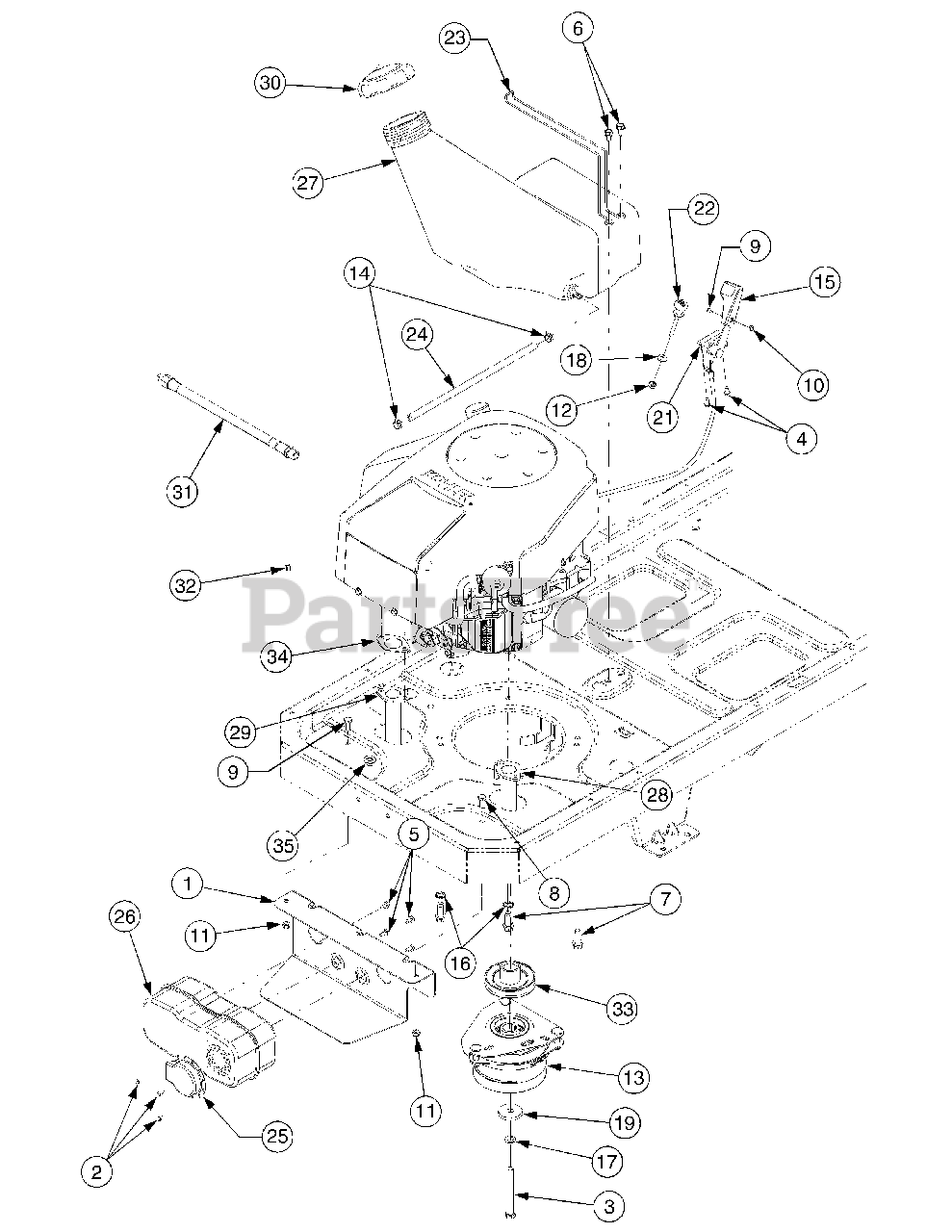

Engine Connections Parts Diagram

  • Title

1

Troy-Bilt 703-05441A

Bracket, Muffler Mounting

$52.99

$

In Stock, only 2 left!

0

2

Troy-Bilt 710-0227

Screw, Hex Wash. Hd. Tapp #8-18 x .5

$4.49

$

In Stock, Qty 20+

0

3

Troy-Bilt 710-04248

Screw, Hex Cap, 7/16-20 x 4.0 GR5

$10.99

$

In Stock, only 1 left!

0

4

Troy-Bilt 710-04261

Screw, Hex Wash. Hd. Tapp #12-16 x .5

$6.49

$

In Stock, only 3 left!

0

5

Troy-Bilt 710-0599

Screw, Hex Wash. Hd. Tapp 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 710-0726

Screw, Hex Wash. Hd. Tapp 5/16-12 x .75

$4.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 710-0654A

Screw, Hex Wash. Hd. Tapp Sems 3/8-16 x 1.0

$4.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 710-3008

Screw, Hex Cap, 5/16-18 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

9

Troy-Bilt 710-3217

Screw, Truss Hd. Mach. #8-32 x .375

$6.99

$

In Stock, Qty 7

0

10

Troy-Bilt 712-0142

Nut, Hex, #8-32

$4.49

$

In Stock, Qty 10

0

11

Troy-Bilt 712-0429

Nut, Hex Insert Lock, 5/16-18 GR5 ..

$4.49

$

In Stock, Qty 20+

0

12

Troy-Bilt 712-3005

Nut, Hex Jam, 3/8-16 GR2

$6.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 717-04183

Clutch Assembly, Electric PTO
(Superseded to 917-04622)

$600.99

$

In Stock, only 1 left!

0

13

Troy-Bilt 726-0197

Tie, Clutch Wire

Note: Not shown

$3.99

$

In Stock, only 1 left!

0

14

Troy-Bilt 726-0205

Clamp, Hose

$3.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 731-04914

Knob, Throttle Control

$13.99

$

Usually ships in 3-6 days

0

16

Troy-Bilt 736-0148

Washer, External Tooth Lock, 3/8

$3.99

$

In Stock, Qty 20+

0

17

Troy-Bilt 736-0171

Washer, Lock, 7/16

$4.49

$

In Stock, Qty 5

0

18

Troy-Bilt 736-0300

Washer, Flat, .406 x .875 x .059

$4.49

$

In Stock, Qty 20+

0

19

Troy-Bilt 736-04131

Washer, Flat, .438 x 1.75 x .25

$15.99

$

In Stock, only 1 left!

0

21

Troy-Bilt 746-04066

Cable, Throttle, 34.25 Lg
(Superseded to 946-04066)

$34.99

$

In Stock, only 2 left!

0

22

Troy-Bilt 746-04214

Cable, Choke, 61Lg
(Superseded to 946-04214)

$47.99

$

In Stock, only 1 left!

0

23

Troy-Bilt 747-04228A

Wire, Tank Mounting

$

$

Not available

24

Troy-Bilt 751-10349-13

Hose, Fuel Line 10 Inches

$17.99

$

In Stock, only 3 left!

0

25

Troy-Bilt 751-0564B

Deflector, Muffler

$13.99

$

In Stock, only 3 left!

0

26

Troy-Bilt 751-0616A

Muffler
(Superseded to 951-0616B)

$163.99

$

In Stock, Qty 16

0

27

Troy-Bilt 751-10057C

Tank, Fuel, 3.0 Gal.
(Superseded to 751-10057D)

$309.99

$

Usually ships in 3-6 days

0

28

Troy-Bilt 751-10254

Pipe, Exhaust RH

$94.99

$

In Stock, only 1 left!

0

29

Troy-Bilt 751-10253

Pipe, Exhaust LH

$72.99

$

In Stock, only 1 left!

0

30

Troy-Bilt 751-3124B

Cap, Fuel
(Superseded to 951-3124E)

$36.99

$

In Stock, only 1 left!

0

31

Troy-Bilt 751-10291

Hose, Oil Drain Extension
(Superseded to 751-10291C)

$52.99

$

Usually ships in 3-6 days

0

32

Troy-Bilt 712-0271

Nut, Hex Sems, 1/4-20

$4.49

$

In Stock, Qty 19

0

33

Troy-Bilt 756-0978B

Pulley, Drive

$66.99

$

In Stock, Qty 13

0

34

Troy-Bilt KH-20-041-12-S

Gasket, Muffler

$4.99

$

Usually ships in 2-5 days

0
