17AF2ACP711 - Troy-Bilt Mustang RZT 50" Zero-Turn Mower (2007) Deck Lift & Controls Parts Diagram

Mustang RZT 50" Zero-Turn Mower

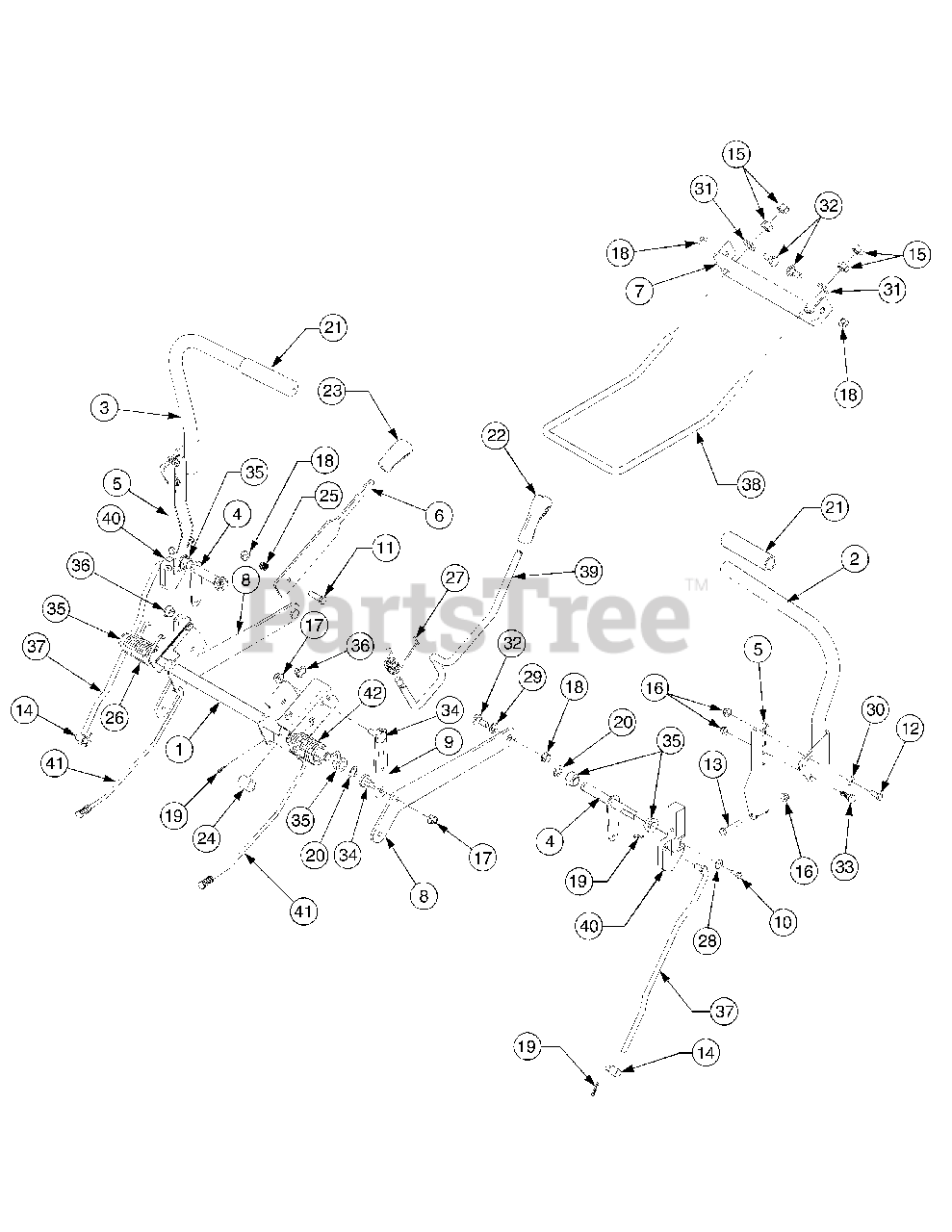

Deck Lift & Controls Parts Diagram

  • Title

1

Troy-Bilt 603-04160B

Shaft Assembly, Deck Lift
(Superseded to 603-04160C-0637)

Variations

Troy-Bilt 603-04160B-0637

SHAFT ASM-DECK LIF - POWDER BLACK (0637)

$161.99

$

Usually ships in 3-6 days

0

$161.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 603-04387

Lever, Lapbar, RH

Variations

Troy-Bilt 603-04387-0637

HANDLE-RH LAPBAR - POWDER BLACK (0637)

$

$

Not available

Troy-Bilt 603-04387-0638

HANDLE-RH LAPBAR - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

3

Troy-Bilt 603-04388

Lever, Lapbar, LH

Variations

Troy-Bilt 603-04388-0637

Left Lapbar Handle - POWDER BLACK (0637)

$

$

Not available

Troy-Bilt 603-04388-0638

HANDLE-LH LAPBAR - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

4

Troy-Bilt 647-04099

Shaft, Control
(Superseded to 647-04099A)

$91.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 703-05387A

Bracket, Lapbar Pivot
(Superseded to 703-05387B)

$28.99

$

In Stock, Qty 5

0

6

Troy-Bilt 703-05396

Handle, Brake
(Superseded to 703-05396A-0637)

Variations

Troy-Bilt 703-05396-0637

Brake Handle - POWDER BLACK (0637)

$37.99

$

Usually ships in 3-6 days

0

$37.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 703-05414A

Bracket, Front Deck Hanger

Variations

Troy-Bilt 703-05414A-0606

BRACKET-DECK HANGER - MAJESTIC ORANGE (0606)

$66.99

$

Usually ships in 3-6 days

0

Troy-Bilt 703-05414A-4021

Hanger Deck Bracket - CUB YELLOW 2 (4021)

$66.99

$

Usually ships in 3-6 days

0

Troy-Bilt 703-05414A-0650

BRACKET-DECK HANGER - RED METALLIC (0650)

$66.99

$

Usually ships in 3-6 days

0

Troy-Bilt 703-05414A-0691

BRACKET-DECK HANGER - BLACK JACK (0691)

$66.99

$

Usually ships in 3-6 days

0

Troy-Bilt 703-05414A-4033

Hanger Deck Bracket - FLINT MICA (4033)

$66.99

$

Usually ships in 3-6 days

0

Troy-Bilt 703-05414A-4044

BRACKET-DECK HANGER - CRAFTSMAN RED (4044)

$66.99

$

Usually ships in 3-6 days

0

Troy-Bilt 703-05414A-0637

BRACKET-DECK HANGER - POWDER BLACK (0637)

$66.99

$

Usually ships in 3-6 days

0

Troy-Bilt 703-05414A-0638

BRACKET-DECK HANGER - MTD/TROY-BILT RED (0638)

$66.99

$

Usually ships in 3-6 days

0

Troy-Bilt 703-05414A-0674

BRACKET-DECK HANGER - YARDMAN YELLOW (0674)

$66.99

$

Usually ships in 3-6 days

0

Troy-Bilt 703-05414A-0709

BRACKET-DECK HANGER - MASTERCRAFT GREEN (0709)

$66.99

$

Usually ships in 3-6 days

0

Troy-Bilt 703-05414A-0716

BRACKET-DECK HANGER - CUB YELLOW-99 (0716)

$66.99

$

Usually ships in 3-6 days

0

Troy-Bilt 703-05414A-4015

BRACKET-DECK HANGER - FIRE RED (4015)

$66.99

$

Usually ships in 3-6 days

0

$53.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 703-05793A

Arm, Deck Lift

Variations

Troy-Bilt 703-05793A-0637

Deck Lift Arm - POWDER BLACK (0637)

$53.99

$

In Stock, only 1 left!

0

Troy-Bilt 703-05793A-0606

Deck Lift Arm - MAJESTIC ORANGE (0606)

$53.99

$

In Stock, only 1 left!

0

Troy-Bilt 703-05793A-0638

ARM-DECK LIFT - MTD/TROY-BILT RED (0638)

$53.99

$

In Stock, only 1 left!

0

Troy-Bilt 703-05793A-0674

ARM-DECK LIFT - YARDMAN YELLOW (0674)

$53.99

$

Usually ships in 3-6 days

0

Troy-Bilt 703-05793A-0691

Deck Lift Arm - BLACK JACK (0691)

$49.99

$

Usually ships in 3-6 days

0

Troy-Bilt 703-05793A-0716

Deck Lift Arm - CUB YELLOW-99 (0716)

$53.99

$

In Stock, only 1 left!

0

Troy-Bilt 703-05793A-4015

ARM-DECK LIFT - FIRE RED (4015)

$49.99

$

Usually ships in 3-6 days

0

Troy-Bilt 703-05793A-4021

Deck Lift Arm - CUB YELLOW 2 (4021)

$53.99

$

In Stock, only 1 left!

0

Troy-Bilt 703-05793A-4033

ARM-DECK LIFT - FLINT MICA (4033)

$53.99

$

In Stock, only 1 left!

0

Troy-Bilt 703-05793A-4044

ARM-DECK LIFT - CRAFTSMAN RED (4044)

$53.99

$

In Stock, only 1 left!

0

Troy-Bilt 703-05793A-0650

ARM-DECK LIFT - RED METALLIC (0650)

$53.99

$

In Stock, only 1 left!

0

Troy-Bilt 703-05793A-0665

ARM-DECK LIFT - YARDMAN GREEN (0665)

$53.99

$

In Stock, only 1 left!

0

$43.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 703-05907

Plate, Lift Link

Variations

Troy-Bilt 703-05907-0637

Lift Arm Link - POWDER BLACK (0637)

$28.99

$

Usually ships in 3-6 days

0

Troy-Bilt 703-05907-0606

LINK-LIFT ARM - MAJESTIC ORANGE (0606)

$

$

Not available

Troy-Bilt 703-05907-0638

LINK-LIFT ARM - MTD/TROY-BILT RED (0638)

$

$

Not available

Troy-Bilt 703-05907-0716

LINK-LIFT ARM - CUB YELLOW-99 (0716)

$

$

Not available

Troy-Bilt 703-05907-0650

LIFT LINK ARM - RED METALLIC (0650)

$

$

Not available

Troy-Bilt 703-05907-0665

LIFT LINK ARM - YARDMAN GREEN (0665)

$

$

Not available

Troy-Bilt 703-05907-4015

LINK-LIFT ARM - FIRE RED (4015)

$

$

Not available

Troy-Bilt 703-05907-4021

LINK-LIFT ARM - CUB YELLOW 2 (4021)

$

$

Not available

$24.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 710-0433

Screw, Hex Lock, 1/4-20 x .62 GR5

$4.49

$

In Stock, only 2 left!

0

11

Troy-Bilt 710-3005

Screw, Hex Cap, 3/8-16 x 1.25 GR5

$3.99

$

In Stock, Qty 10

0

12

Troy-Bilt 710-3008

Screw, Hex Cap, 5/16-18 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

13

Troy-Bilt 710-3180

Screw, Hex Cap, 5/16-18 x 1.75 GR5

$5.49

$

In Stock, Qty 15

0

14

Troy-Bilt 711-0832

Ferrule, 3/8-24 x .375
(Superseded to 911-0832)

$15.99

$

In Stock, only 4 left!

0

15

Troy-Bilt 712-0206

Nut, Hex, 1/2-13 GR5

$4.49

$

In Stock, Qty 20+

0

16

Troy-Bilt 712-04063

Nut, Hx Flange Insert Lck, 5/16-18 GrF

$3.99

$

In Stock, Qty 20+

0

17

Troy-Bilt 712-04065

Nut, Hx Flange Insert Lck, 3/8-16GrF

$3.99

$

In Stock, Qty 20+

0

18

Troy-Bilt 712-0431

Nut, Hex Flange Lock, 3/8-16 GRF
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

19

Troy-Bilt 714-0104

Pin, Internal Cotter

$4.49

$

In Stock, Qty 20+

0

20

Troy-Bilt 716-0106

E-Ring , .625 Dia. Shaft

$4.49

$

In Stock, only 2 left!

0

21

Troy-Bilt 720-0274

Grip, Hand

$11.99

$

In Stock, only 2 left!

0

22

Troy-Bilt 720-0311

Grip, Handle

$15.99

$

In Stock, only 2 left!

0

23

Troy-Bilt 731-04735

Grip, Handle

$20.99

$

In Stock, only 1 left!

0

24

Troy-Bilt 731-05732

Spacer, .62 x 1.0

$3.49

$

Usually ships in 3-6 days

0

25

Troy-Bilt 732-0334

Spring, Compression

$3.99

$

In Stock, Qty 19

0

26

Troy-Bilt 732-04420

Spring, Torsion LH

$20.99

$

In Stock, only 1 left!

0

27

Troy-Bilt 732-04869A

Spring, Torsion RZT

Note: (Replaces 732-0874 & 732-04422 in this application)

$4.49

$

In Stock, Qty 5

0

28

Troy-Bilt 736-0270

Washer, Bell, .265 x .75 x .062

$3.99

$

In Stock, Qty 20+

0

29

Troy-Bilt 736-0272

Washer, Flat, .51 x 1.0 x .06

$4.99

$

In Stock, Qty 20+

0

30

Troy-Bilt 736-0275

Washer, Flat, .344 x .688 x .065

$6.99

$

Usually ships in 3-6 days

0

31

Troy-Bilt 736-3019

Washer, Flat, .531 x 1.062 x .134 HT

$5.99

$

In Stock, Qty 11

0

32

Troy-Bilt 738-0143

Screw, Shoulder, .498 x .340:3/8-16

$4.49

$

In Stock, Qty 20+

0

33

Troy-Bilt 738-0296

Screw, Shoulder, .437 x .268:5/16-18

$4.49

$

In Stock, Qty 20+

0

34

Troy-Bilt 738-0507B

Screw, Shoulder, .5 x .434:3/8-16

$4.49

$

In Stock, only 4 left!

0

35

Troy-Bilt 741-0225

Bearing, Hex Flange
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 20+

0

36

Troy-Bilt 741-3074

Bearing, Flange, .626 x .938 x .344

$4.99

$

In Stock, Qty 18

0

37

Troy-Bilt 747-04225A

Rod, Lapbar Control

$42.99

$

In Stock, only 1 left!

0

38

Troy-Bilt 747-04401A

Rod, Deck Front Hanger

$58.99

$

In Stock, only 1 left!

0

39

Troy-Bilt 747-04637

Rod, Deck Lift Handle

$51.99

$

In Stock, only 1 left!

0

40

Troy-Bilt 748-04052

Hub, Control

$70.99

$

Usually ships in 3-6 days

0

41

Troy-Bilt 947-04065

Rod, Brake

$39.99

$

In Stock, only 1 left!

0

42

Troy-Bilt 732-04421

Spring, Torsion RH

$20.99

$

Usually ships in 3-6 days

0
