17AF2ACP211 - Troy-Bilt Mustang RZT 50" Zero-Turn Mower (2008) Mower Deck Parts Diagram

Mustang RZT 50" Zero-Turn Mower

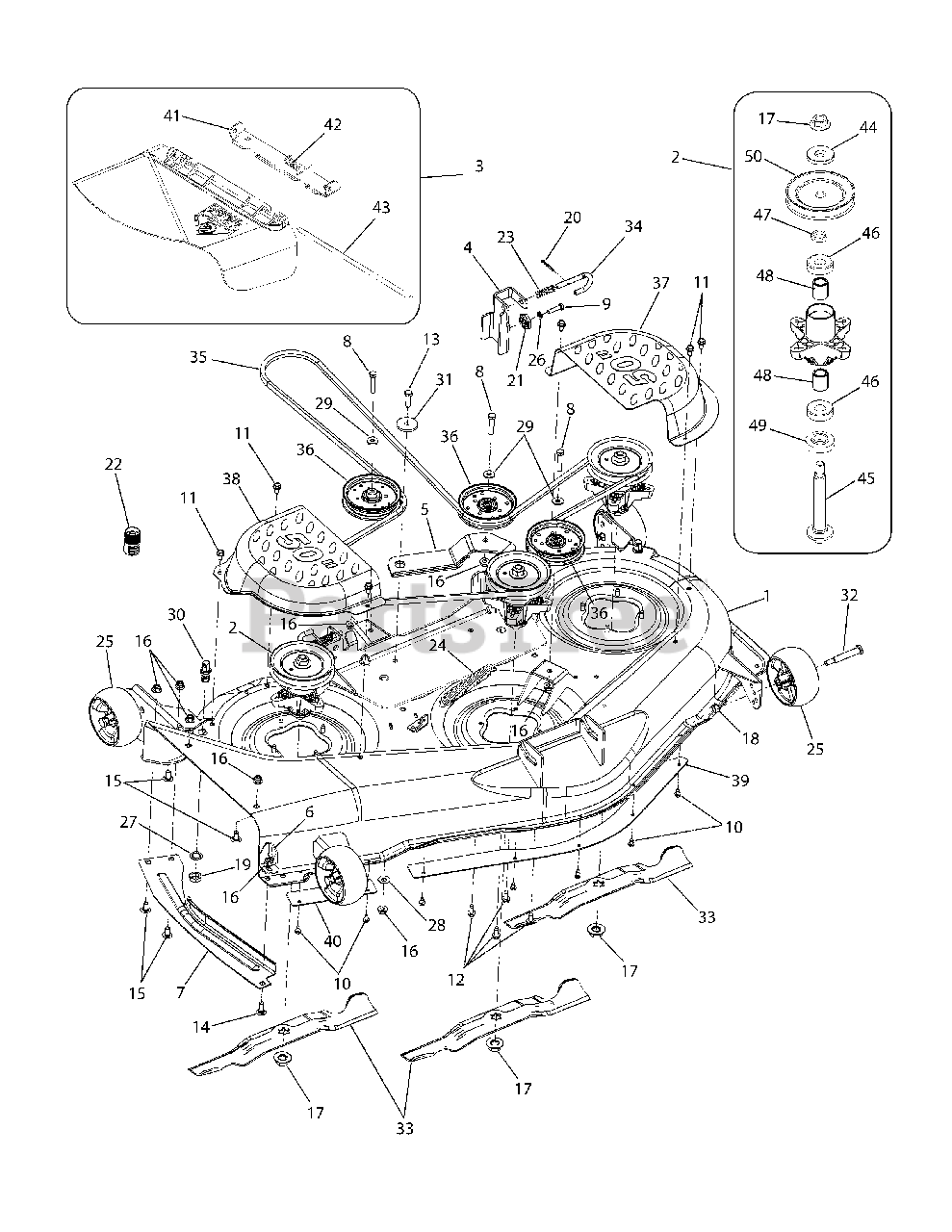

Mower Deck Parts Diagram

  • Title

1

Troy-Bilt 603-04328A

Housing, Deck

Variations

Troy-Bilt 603-04328A-0637

Mower Deck Shell, 42" - POWDER BLACK (0637)

$1128.99

$

Usually ships in 3-6 days

0

Troy-Bilt 603-04328A-0638

Mower Deck Shell, 42" - MTD/TROY-BILT RED (0638)

$1128.99

$

Usually ships in 3-6 days

0

Troy-Bilt 603-04328A-0650

Mower Deck Shell, 50" - RED METALLIC (0650)

$1128.99

$

Usually ships in 3-6 days

0

Troy-Bilt 603-04328A-0606

SHELL-50" DECK - MAJESTIC ORANGE (0606)

$1128.99

$

Usually ships in 3-6 days

0

Troy-Bilt 603-04328A-0691

SHELL-50" DECK - BLACK JACK (0691)

$1128.99

$

Usually ships in 3-6 days

0

Troy-Bilt 603-04328A-0716

SHELL-50" DECK - CUB YELLOW-99 (0716)

$1128.99

$

Usually ships in 3-6 days

0

Troy-Bilt 603-04328A-4021

Mower Deck Shell, 50" - CUB YELLOW 2 (4021)

$1128.99

$

Usually ships in 3-6 days

0

Troy-Bilt 603-04328A-4033

Mower Deck Shell, 50" - FLINT MICA (4033)

$1128.99

$

Usually ships in 3-6 days

0

Troy-Bilt 603-04328A-4044

SHELL-50" DECK - CRAFTSMAN RED (4044)

$1128.99

$

Usually ships in 3-6 days

0

$913.99

$

Usually ships in 3-6 days

0

1

Troy-Bilt 777S32598

Graphic, Danger

Note: Not shown

$9.99

$

Usually ships in 3-6 days

0

1

Troy-Bilt 777S30503

Graphic, Danger

Note: Not shown

$11.99

$

In Stock, only 2 left!

0

1

Troy-Bilt 777I22282

Graphic, Instruction
(Superseded to 977I22282)

Note: Not shown

$20.99

$

In Stock, only 1 left!

0

1

Troy-Bilt 777D11833

Graphic, 50"

Note: Not shown

$

$

Not available

2

Troy-Bilt 618-04125A

Spindle Assembly
(Superseded to 918-04125C)

$133.99

$

In Stock, Qty 20+

0

3

Troy-Bilt 631-04070A

Chute Assembly, Discharge
(Superseded to 631-04070C)

$122.99

$

In Stock, only 1 left!

0

3

Troy-Bilt 777S30284

Graphic, Danger
(Superseded to 977S30145)

Note: Not shown

$10.99

$

In Stock, only 1 left!

0

4

Troy-Bilt 683-0254

Bracket, Deck Hanger
(Superseded to 683-0254B)

Variations

Troy-Bilt 683-0254-0498

Deck Bracket Assembly, LH - OLD CUB YELLOW (0498)

$49.99

$

Usually ships in 3-6 days

0

Troy-Bilt 683-0254-0716

Deck Bracket Assembly, LH - CUB YELLOW-99 (0716)

$49.99

$

Usually ships in 3-6 days

0

Troy-Bilt 683-0254-0637

Deck Bracket Assembly, LH - POWDER BLACK (0637)

$36.99

$

In Stock, only 1 left!

0

Troy-Bilt 683-0254-0691

Deck Bracket Assembly, LH - BLACK JACK (0691)

$36.99

$

In Stock, only 1 left!

0

Troy-Bilt 683-0254-0650

BRACKET ASM-DECK LH - RED METALLIC (0650)

$49.99

$

In Stock, only 1 left!

0

Troy-Bilt 683-0254-0665

BRACKET ASM-DECK LH - YARDMAN GREEN (0665)

$49.99

$

Usually ships in 3-6 days

0

$46.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 703-05825B

Arm, Idler

Variations

Troy-Bilt 703-05825B-4021

Idler Arm Bracket - CUB YELLOW 2 (4021)

$54.99

$

In Stock, only 3 left!

0

Troy-Bilt 703-05825B-0637

Idler Arm Bracket - POWDER BLACK (0637)

$54.99

$

In Stock, only 3 left!

0

Troy-Bilt 703-05825B-0638

Idler Arm Bracket - MTD/TROY-BILT RED (0638)

$54.99

$

In Stock, only 3 left!

0

Troy-Bilt 703-05825B-0691

BRACKET-IDLER ARM - BLACK JACK (0691)

$54.99

$

In Stock, only 3 left!

0

Troy-Bilt 703-05825B-4033

Idler Arm Bracket - FLINT MICA (4033)

$54.99

$

In Stock, only 3 left!

0

Troy-Bilt 703-05825B-0650

BRACKET-IDLER ARM - RED METALLIC (0650)

$

$

Not available

$43.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 703-3279

Bracket, Stop

Variations

Troy-Bilt 703-3279-0606

Chute Deflector Stop - MAJESTIC ORANGE (0606)

$40.99

$

Usually ships in 3-6 days

0

Troy-Bilt 703-3279-0650

Chute Deflector Stop - RED METALLIC (0650)

$40.99

$

Usually ships in 3-6 days

0

Troy-Bilt 703-3279-4033

Chute Deflector Stop - FLINT MICA (4033)

$40.99

$

Usually ships in 3-6 days

0

Troy-Bilt 703-3279-0637

Chute Deflector Stop - POWDER BLACK (0637)

$40.99

$

Usually ships in 3-6 days

0

Troy-Bilt 703-3279-0638

Chute Deflector Stop - MTD/TROY-BILT RED (0638)

$40.99

$

Usually ships in 3-6 days

0

Troy-Bilt 703-3279-4021

Chute Deflector Stop - CUB YELLOW 2 (4021)

$40.99

$

Usually ships in 3-6 days

0

Troy-Bilt 703-3279-0498

Chute Deflector Stop - OLD CUB YELLOW (0498)

$40.99

$

Usually ships in 3-6 days

0

Troy-Bilt 703-3279-0665

Chute Deflector Stop - YARDMAN GREEN (0665)

$40.99

$

Usually ships in 3-6 days

0

Troy-Bilt 703-3279-0691

Chute Deflector Stop - BLACK JACK (0691)

$40.99

$

Usually ships in 3-6 days

0

Troy-Bilt 703-3279-4008

Chute Deflector Stop - WINE RED (4008)

$40.99

$

Usually ships in 3-6 days

0

Troy-Bilt 703-3279-4028

Chute Deflector Stop - SEARS YELLOW (4028)

$40.99

$

Usually ships in 3-6 days

0

Troy-Bilt 703-3279-4044

Chute Deflector Stop - CRAFTSMAN RED (4044)

$40.99

$

Usually ships in 3-6 days

0

$40.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 703-3511A

Guard, Finger
(Superseded to 703-3511B-0637)

Variations

Troy-Bilt 703-3511A-0637

Finger Guard, Black - POWDER BLACK (0637)

$69.99

$

In Stock, Qty 20+

0

$69.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 710-0347

Screw, Hex Cap, 3/8-16 x 1.75 GR5

$5.49

$

In Stock, Qty 20+

0

9

Troy-Bilt 710-0528

Screw, Hex Cap, 5/16-18 x 1.25 GR5

$4.49

$

In Stock, Qty 20+

0

10

Troy-Bilt 710-0599

Screw, Hex Wash. Hd. Tapp,1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

11

Troy-Bilt 710-0726

Screw, Hex Wash. Hd. Tapp, 5/16-12 x .75

$4.49

$

In Stock, Qty 20+

0

12

Troy-Bilt 710-1260A

Screw, Hex Wash. Hd. Tapp, 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 710-3005

Screw, Hex Cap, 3/8-16 x 1.25 GR5

$3.99

$

In Stock, Qty 10

0

14

Troy-Bilt 710-3168

Screw, Carriage, 3/8-16 x 1.0

$3.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 710-3178

Screw, Carriage, 3/8-16 x .75

$4.49

$

In Stock, Qty 20+

0

16

Troy-Bilt 712-04065

Nut, Hx Insert Flange Lck, 3/6-16 GrF

$3.99

$

In Stock, Qty 20+

0

17

Troy-Bilt 712-0417A

Nut, Hex Flange, 5/8-18

$6.99

$

In Stock, Qty 20+

0

18

Troy-Bilt 712-0431

Nut, Hex Flange Lock, 3/8-16 GRF
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

19

Troy-Bilt 712-0641

Nut, Hex, M16-1.5

$6.49

$

In Stock, Qty 7

0

20

Troy-Bilt 714-0470

Pin, Cotter, 1/8 x 1.25

$4.49

$

In Stock, Qty 20+

0

21

Troy-Bilt 717-04074

Gear, Deck Adjustment
(Superseded to 917-04074)

$13.99

$

In Stock, Qty 20+

0

22

Troy-Bilt 721-04041

Adapter, Water Nozzle
(Superseded to 921-04041)

$23.99

$

In Stock, Qty 20+

0

23

Troy-Bilt 732-0306A

Spring, Compression
(Superseded to 932-0306A)

$8.49

$

In Stock, only 4 left!

0

24

Troy-Bilt 732-0459

Spring, Extension, .94 Dia. x 6.74
(Superseded to 732-0459C)

$18.99

$

In Stock, only 1 left!

0

25

Troy-Bilt 734-04155

Wheel, Deck Ball, 5.0

$20.99

$

In Stock, Qty 20+

0

26

Troy-Bilt 736-0119

Washer, Lock, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

27

Troy-Bilt 736-0407

Washer, Bell, .45 x 1.0 x .062

$3.99

$

In Stock, only 2 left!

0

28

Troy-Bilt 736-0225

Washer, Internal Tooth Lock, 5/8

$4.49

$

In Stock, only 2 left!

0

29

Troy-Bilt 736-3072

Washer, Flat, .38 x .93 x .110 HT

$4.49

$

In Stock, Qty 20+

0

30

Troy-Bilt 737-04003C

Nozzle, Deck Wash
(Superseded to 737-04003D)

$23.99

$

In Stock, Qty 6

0

31

Troy-Bilt 738-04162A

Spacer, Shoulder, .884 x .190
(Superseded to 738-04162C)

$13.99

$

In Stock, Qty 20+

0

32

Troy-Bilt 738-3056

Screw, Shoulder, .5 x 2.5:3/8-16
(Superseded to 938-3056)

$9.49

$

In Stock, Qty 20+

0

33

Troy-Bilt 742-04053A

Blade, 2 in 1, 17.9 Lg
(Superseded to 942-04053C)

$28.99

$

In Stock, Qty 20+

0

34

Troy-Bilt 747-1116

Rod, Deck Hanger

$12.99

$

Usually ships in 3-6 days

0

35

MTD 754-04044A

Belt V, Type A Sec x 134
(Superseded to 954-04044A)

$63.99

$

In Stock, Qty 20+

0

36

Troy-Bilt 756-04129

Pulley, Idler, 4.25 Dia
(Superseded to 753-08171)

$35.99

$

In Stock, Qty 20+

0

37

Troy-Bilt 783-04399

Cover, Belt LH

Variations

Troy-Bilt 783-04399-0637

Belt Cover, LH Black - POWDER BLACK (0637)

$95.99

$

In Stock, only 2 left!

0

Troy-Bilt 783-04399-0606

Belt Cover, LH Orange - MAJESTIC ORANGE (0606)

$95.99

$

In Stock, only 2 left!

0

Troy-Bilt 783-04399-0650

Belt Cover, LH - RED METALLIC (0650)

$95.99

$

In Stock, only 2 left!

0

Troy-Bilt 783-04399-0691

Belt Cover, LH Black - BLACK JACK (0691)

$95.99

$

In Stock, only 2 left!

0

Troy-Bilt 783-04399-0716

Belt Cover, LH - CUB YELLOW-99 (0716)

$95.99

$

In Stock, only 2 left!

0

Troy-Bilt 783-04399-4008

COVER-BELT LH - WINE RED (4008)

$71.99

$

In Stock, only 1 left!

0

Troy-Bilt 783-04399-4021

Belt Cover, LH Yellow - CUB YELLOW 2 (4021)

$95.99

$

In Stock, only 2 left!

0

Troy-Bilt 783-04399-4033

Belt Cover, LH Flint - FLINT MICA (4033)

$95.99

$

In Stock, only 2 left!

0

Troy-Bilt 783-04399-4044

COVER-BELT LH - CRAFTSMAN RED (4044)

$95.99

$

In Stock, only 2 left!

0

Troy-Bilt 783-04399-0638

COVER-BELT LH - MTD/TROY-BILT RED (0638)

$95.99

$

In Stock, only 2 left!

0

Troy-Bilt 783-04399-0665

COVER-BELT LH - YARDMAN GREEN (0665)

$

$

Not available

$95.99

$

In Stock, only 2 left!

0

38

Troy-Bilt 783-04400

Cover, Belt RH

Variations

Troy-Bilt 783-04400-4021

Belt Cover, RH Yellow - CUB YELLOW 2 (4021)

$95.99

$

In Stock, Qty 5

0

Troy-Bilt 783-04400-0606

Belt Cover, RH Orange - MAJESTIC ORANGE (0606)

$95.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-04400-0637

Belt Cover, RH Black - POWDER BLACK (0637)

$95.99

$

In Stock, Qty 5

0

Troy-Bilt 783-04400-0638

COVER-BELT RH - MTD/TROY-BILT RED (0638)

$95.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-04400-0650

COVER-BELT RH - RED METALLIC (0650)

$88.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-04400-4033

COVER-BELT RH - FLINT MICA (4033)

$95.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-04400-0665

COVER-BELT RH - YARDMAN GREEN (0665)

$95.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-04400-4008

COVER-BELT RH - WINE RED (4008)

$95.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-04400-0691

Belt Cover, RH Black - BLACK JACK (0691)

$

$

Not available

Troy-Bilt 783-04400-0716

BELT COVER (RH) (CUB YELLOW-99) - CUB YELLOW-99 (0716)

$

$

Not available

Troy-Bilt 783-04400-4044

COVER-BELT RH - CRAFTSMAN RED (4044)

$

$

Not available

$95.99

$

Usually ships in 3-6 days

0

39

Troy-Bilt 783-04414

Skirt, Center
(Superseded to 783-04414A)

Variations

Troy-Bilt 783-04414-0637

Center Deck Skirt, 50" - POWDER BLACK (0637)

$35.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-04414-4008

SKIRT-CENTER 50" - WINE RED (4008)

$35.99

$

Usually ships in 3-6 days

0

$35.99

$

Usually ships in 3-6 days

0

40

Troy-Bilt 783-04415

Skirt, RH

Variations

Troy-Bilt 783-04415-4021

Right Skirt for 50" Deck - CUB YELLOW 2 (4021)

$30.99

$

In Stock, only 1 left!

0

Troy-Bilt 783-04415-0606

Right Skirt for 50" Deck - MAJESTIC ORANGE (0606)

$30.99

$

In Stock, Qty 5

0

Troy-Bilt 783-04415-0637

Right Skirt for 50" Deck - POWDER BLACK (0637)

$30.99

$

In Stock, only 4 left!

0

Troy-Bilt 783-04415-0665

SKIRT-RH 50" - YARDMAN GREEN (0665)

$30.99

$

In Stock, only 4 left!

0

Troy-Bilt 783-04415-0691

SKIRT-RH 50" - BLACK JACK (0691)

$30.99

$

In Stock, only 4 left!

0

Troy-Bilt 783-04415-0716

Right Skirt for 50" Deck - CUB YELLOW-99 (0716)

$30.99

$

In Stock, only 4 left!

0

Troy-Bilt 783-04415-4008

SKIRT-RH 50" - WINE RED (4008)

$30.99

$

In Stock, only 1 left!

0

Troy-Bilt 783-04415-4028

Right Skirt for 50" Deck - SEARS YELLOW (4028)

$30.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-04415-4033

Right Skirt for 50" Deck - FLINT MICA (4033)

$30.99

$

In Stock, only 4 left!

0

Troy-Bilt 783-04415-4044

SKIRT-RH 50" - CRAFTSMAN RED (4044)

$28.99

$

Usually ships in 3-6 days

0

$28.99

$

Usually ships in 3-6 days

0

41

Troy-Bilt 783-05030

Bracket, Chute Mounting

$29.99

$

In Stock, Qty 5

0

42

Troy-Bilt 732-04372

Spring, Torsion

$10.99

$

In Stock, Qty 9

0

43

Troy-Bilt 711-04565

Pin, Hinge

$15.99

$

In Stock, only 3 left!

0

44

Troy-Bilt 736-0315

Washer, Flat, .76 x 1.50 x .12

$6.99

$

In Stock, Qty 6

0

45

Troy-Bilt 738-1010A

Shaft, Spindle, 5.75

$46.99

$

In Stock, only 2 left!

0

46

Troy-Bilt 741-0919

Bearing, Ball
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

47

Troy-Bilt 748-0160A

Spacer, .79 x 1.25 x .175

$6.99

$

In Stock, only 3 left!

0

48

Troy-Bilt 750-1000

Spacer, .80 x 1.10 x 1.32

$4.49

$

In Stock, Qty 7

0

49

Troy-Bilt 750-1349A

Spacer, .79 x 1.82 x .55

$13.99

$

In Stock, only 3 left!

0

50

Troy-Bilt 756-04216

Pulley, V Type, 5.39

$33.99

$

In Stock, only 1 left!

0
