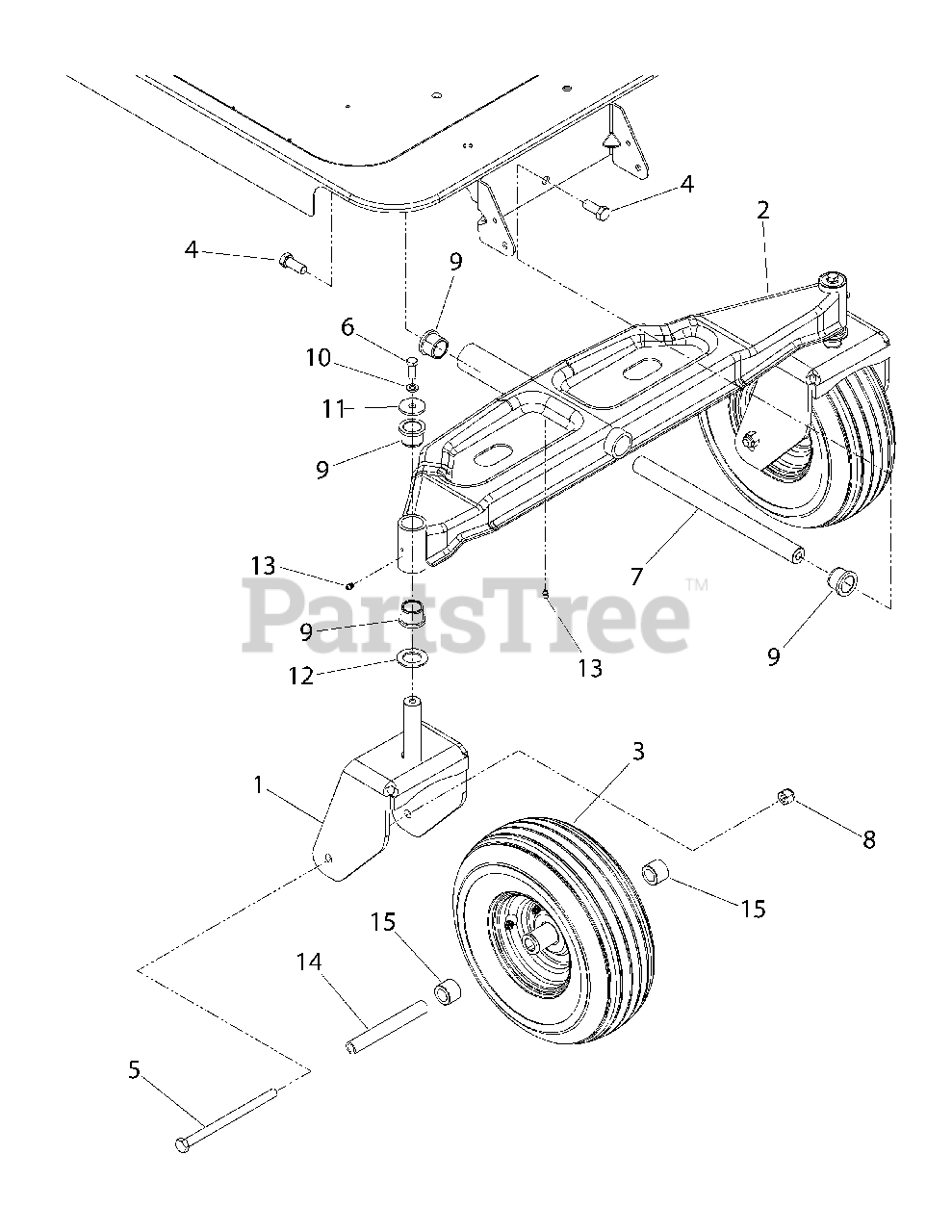

17AF2ACP211 - Troy-Bilt Mustang RZT 50" Zero-Turn Mower (2008) Front Axle Parts Diagram

Mustang RZT 50" Zero-Turn Mower

Front Axle Parts Diagram

  • Title

1

Troy-Bilt 603-04370

Bracket, Castor Wheel
(Superseded to 603-04370A)

Variations

Troy-Bilt 603-04370-0638

Caster Wheel Yoke, Red - MTD/TROY-BILT RED (0638)

$120.99

$

Usually ships in 3-6 days

0

Troy-Bilt 603-04370-4021

Caster Wheel Yoke, Yellow - CUB YELLOW 2 (4021)

$120.99

$

Usually ships in 3-6 days

0

Troy-Bilt 603-04370-0606

Caster Wheel Yoke - MAJESTIC ORANGE (0606)

$120.99

$

Usually ships in 3-6 days

0

Troy-Bilt 603-04370-0650

Caster Wheel Yoke, Red - RED METALLIC (0650)

$97.99

$

Usually ships in 3-6 days

0

Troy-Bilt 603-04370-0691

Caster Wheel Yoke - BLACK JACK (0691)

$120.99

$

Usually ships in 3-6 days

0

Troy-Bilt 603-04370-4015

Caster Wheel Yoke - FIRE RED (4015)

$97.99

$

Usually ships in 3-6 days

0

Troy-Bilt 603-04370-4038

Caster Wheel Yoke - DAY ORANGE (4038)

$120.99

$

Usually ships in 3-6 days

0

Troy-Bilt 603-04370-0709

Caster Wheel Yoke - MASTERCRAFT GREEN (0709)

$120.99

$

Usually ships in 3-6 days

0

Troy-Bilt 603-04370-0716

YOKE-CASTER WHEEL - CUB YELLOW-99 (0716)

$120.99

$

Usually ships in 3-6 days

0

Troy-Bilt 603-04370-4044

YOKE-CASTER WHEEL - CRAFTSMAN RED (4044)

$97.99

$

Usually ships in 3-6 days

0

$97.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 603-04385A

Axle, Front Pivot

Variations

Troy-Bilt 603-04385A-0606

AXLE ASM-FRONT PIV - MAJESTIC ORANGE (0606)

$453.99

$

Usually ships in 3-6 days

0

Troy-Bilt 603-04385A-0638

Front Axle Pivot Assembly, Red - MTD/TROY-BILT RED (0638)

$453.99

$

Usually ships in 3-6 days

0

Troy-Bilt 603-04385A-0650

AXLE ASM-FRONT PIV - RED METALLIC (0650)

$453.99

$

Usually ships in 3-6 days

0

Troy-Bilt 603-04385A-0691

AXLE ASM-FRONT PIV - BLACK JACK (0691)

$453.99

$

Usually ships in 3-6 days

0

Troy-Bilt 603-04385A-0709

AXLE ASM-FRONT PIV - MASTERCRAFT GREEN (0709)

$453.99

$

Usually ships in 3-6 days

0

Troy-Bilt 603-04385A-4015

AXLE ASM-FRONT PIV - FIRE RED (4015)

$453.99

$

Usually ships in 3-6 days

0

Troy-Bilt 603-04385A-4038

AXLE ASM-FRONT PIV - DAY ORANGE (4038)

$453.99

$

Usually ships in 3-6 days

0

Troy-Bilt 603-04385A-4044

AXLE ASM-FRONT PIV - CRAFTSMAN RED (4044)

$453.99

$

Usually ships in 3-6 days

0

Troy-Bilt 603-04385A-4021

Front Axle Pivot Assembly - CUB YELLOW 2 (4021)

$

$

Not available

$

$

3

Troy-Bilt 634-04323A

Wheel Assembly, 13 x 5-6
(Superseded to 634-04321A-0911)

$

$

Not available

3

Troy-Bilt 734-04255

Tire, 13 x 5-6
(Superseded to 734-04255A)

Note: Not shown

$

$

Not available

4

Troy-Bilt 710-04186

Screw, Hex Lock, 1/2-13 x 1.25 GR5

$7.49

$

In Stock, only 1 left!

0

5

Troy-Bilt 710-04652

Screw, Hex Cap, 1/2-20 x 7.25 Gr5
(Superseded to 710-11661)

$6.49

$

In Stock, only 2 left!

0

6

Troy-Bilt 710-0514

Screw, Hex Cap, 3/8-16 x 1.0 GR5

$4.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 711-04228

Shaft, Axle
(Superseded to 911-04228)

$77.99

$

In Stock, only 1 left!

0

8

Troy-Bilt 712-3058

Nut, Hex Insert Lock, 1/2-13 GRB
(Superseded to 912-3058)

$5.99

$

In Stock, Qty 16

0

9

Troy-Bilt 731-05500

Bearing, Flange, 1.0 x 1.246

$10.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 736-0169

Washer, Lock, 3/8

$3.99

$

In Stock, Qty 20+

0

11

Troy-Bilt 736-0227

Washer, Flat, .39 x 1.5 x .134

$6.49

$

In Stock, Qty 13

0

12

Troy-Bilt 736-0250

Washer, Flat, 1.0 x 1.75 x .10

$4.49

$

Usually ships in 3-6 days

0

13

Troy-Bilt 737-3000

Fitting, Lube, 3/16 Drive
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

14

Troy-Bilt 750-04775A

Spacer, .51 x .75 x 5.825

$28.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 750-04792

Hub, .76 x 1.23 x .92

$7.99

$

In Stock, Qty 20+
