17AF2ACP066 - Troy-Bilt Mustang XP 50" Zero-Turn Mower (2012) Front Axle, 50-inch Deck Parts Diagram

Mustang XP 50" Zero-Turn Mower

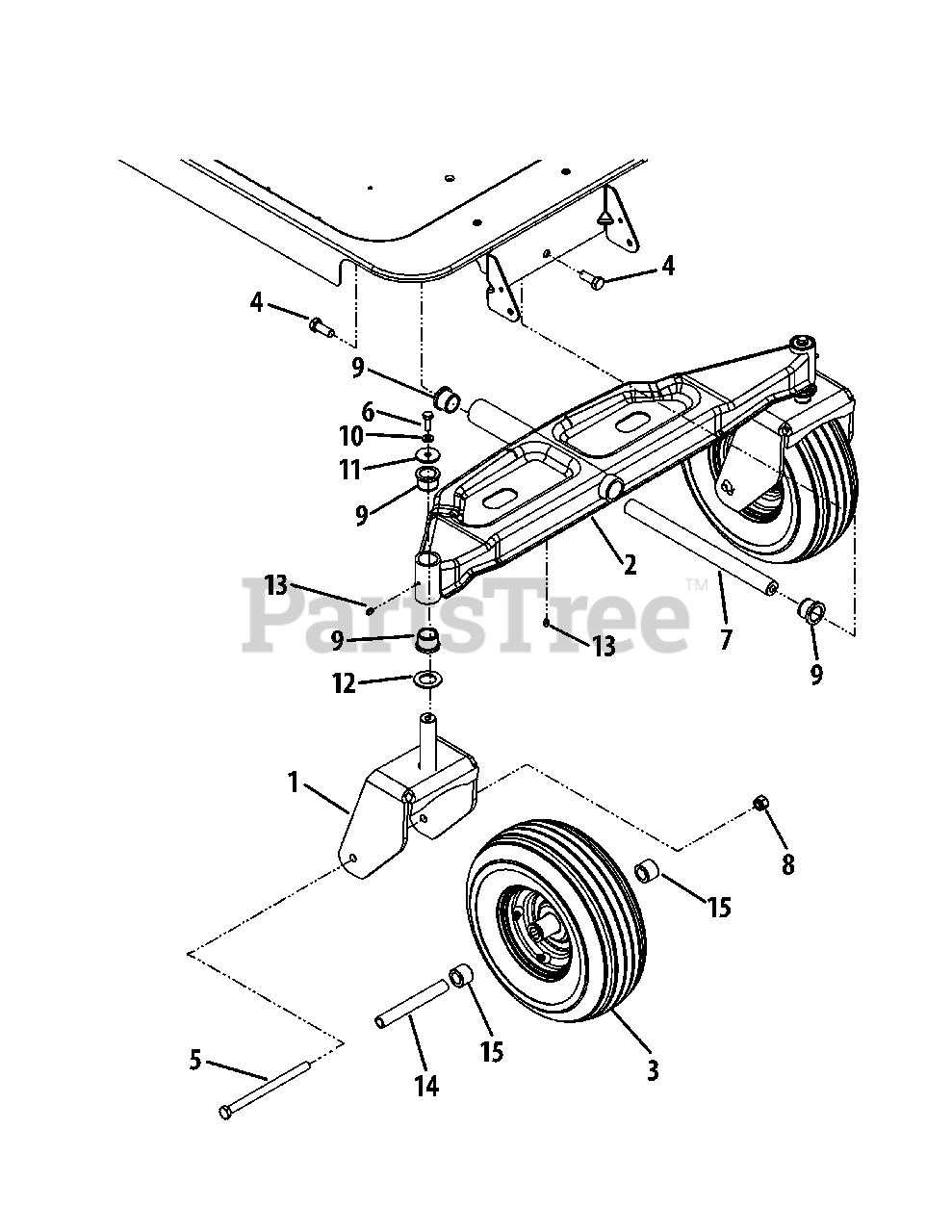

Front Axle, 50-inch Deck Parts Diagram

  • Title

1

Troy-Bilt 603-04370-0638

Castor Wheel Bracket
(Superseded to 603-04370A-0691)

$120.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 603-04385A-0638

Front Pivot Axle

$453.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 634-04321A-0911

Wheel Assembly, 13 x 5-6

$

$

Not available

3

Troy-Bilt 734-04255A-0901

Tire only, Grooved, 13 x 5-6 , CARLISLE
(Superseded to 734-04255A-0906)

Note: (not shown)

$82.99

$

In Stock, Qty 6

0

3

Troy-Bilt 741-0990B

Bearing, Flange, .76 ID w/ Lube Fitting

Note: (not shown)

$10.99

$

In Stock, Qty 20+

0

3

Troy-Bilt 741-0516B

Bearing, Flange, .76 x 1.0 x 1.2

Note: (not shown)

$6.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 710-04186

Hex Lock Screw, 1/2-13 x 1.25

$7.49

$

In Stock, only 1 left!

0

5

Troy-Bilt 710-04652

Hex Cap Screw, 1/2-20 x 7.25
(Superseded to 710-11661)

$6.49

$

In Stock, only 2 left!

0

6

Troy-Bilt 710-0514

Hex Cap Screw, 3/8-16 x 1.0

$4.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 911-04228

Axle Shaft

$77.99

$

In Stock, only 1 left!

0

8

Troy-Bilt 712-3058

Hex Insert Lock Nut, 1/2-13
(Superseded to 912-3058)

$5.99

$

In Stock, Qty 16

0

9

Troy-Bilt 731-05500

Flange Bearing, 1.0 x 1.246

$10.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 936-0169

Lock Washer, 3/8
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

11

Troy-Bilt 936-0227

Flat Washer, .39 x 1.5 x .134
(Superseded to 736-0227)

$

$

Not available

12

Troy-Bilt 736-0250

Flat Washer, 1.0 x 1.75 x .10

$4.49

$

Usually ships in 3-6 days

0

13

Troy-Bilt 937-3000

Lube Fitting, 3/16 Drive

$4.99

$

In Stock, Qty 20+

0

14

Troy-Bilt 750-04775A

Spacer, .51 x .75 x 5.825

$28.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 750-04792

Hub, .76 x 1.23 x .92

$7.99

$

In Stock, Qty 20+

0
