17AF2ACP011 - Troy-Bilt Mustang RZT 50" Zero-Turn Mower (2008) Frame Parts Diagram

Mustang RZT 50" Zero-Turn Mower

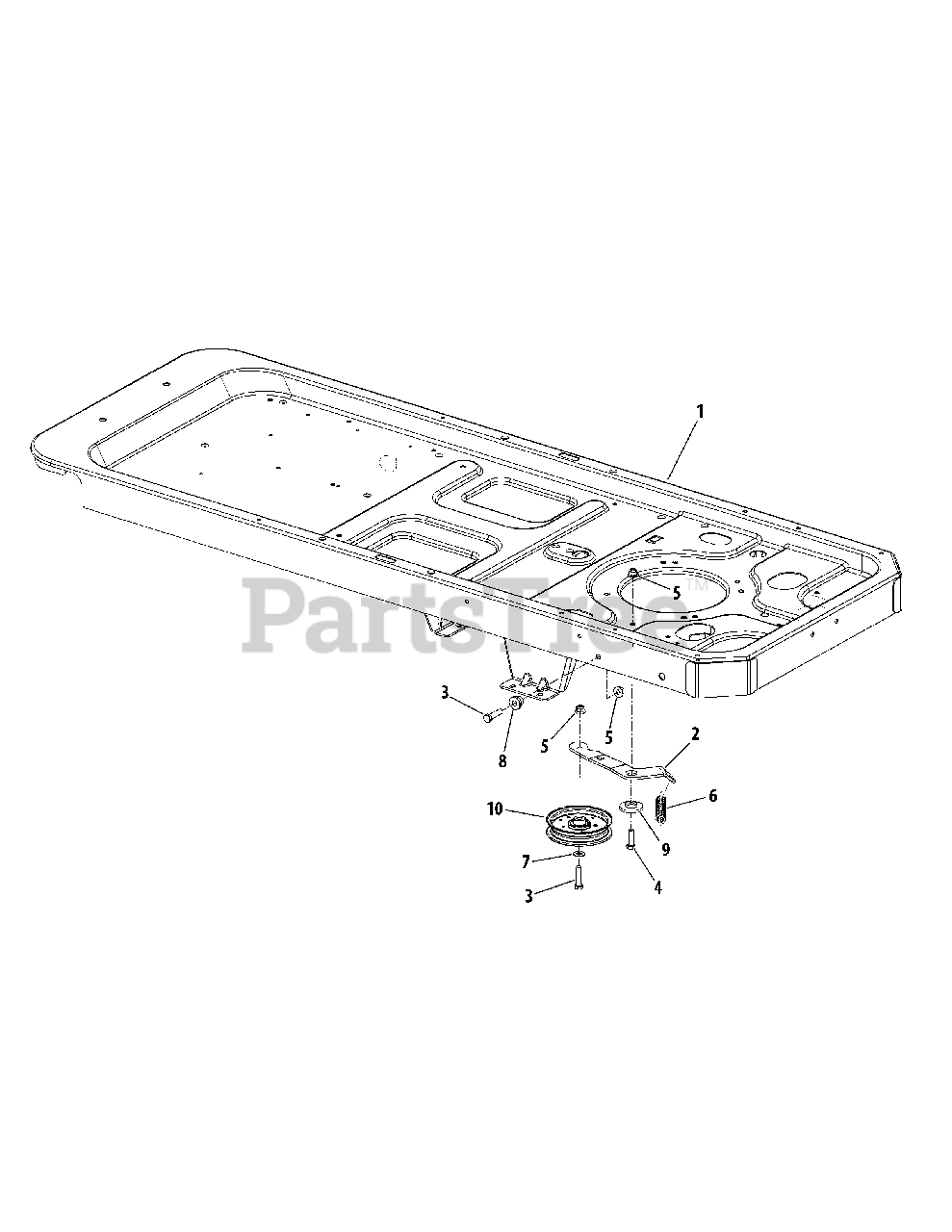

Frame Parts Diagram

  • Title

1

Troy-Bilt 603-04303D

Frame

$

$

Currently unavailable

2

Troy-Bilt 703-05829

Arm, Idler

Variations

Troy-Bilt 703-05829-0637

Idler Arm - POWDER BLACK (0637)

$42.99

$

In Stock, only 1 left!

0

$42.99

$

In Stock, only 1 left!

0

3

Troy-Bilt 710-0520

Screw, Hex Cap, 3/8-16 x 1.5 Gr5

$4.49

$

In Stock, Qty 5

0

4

Troy-Bilt 710-3005

Screw, Hex Cap, 3/8-16 x 1.25 Gr5

$3.99

$

In Stock, Qty 20+

0

5

Troy-Bilt 712-04065

Nut, Hex Flange Lock, 3/8-16 GrF

$3.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 732-0626

Spring, Extension, .75 x 5.06

$12.99

$

In Stock, only 1 left!

0

7

Troy-Bilt 736-0300

Washer, Flat, .406 x .875 x.059

$4.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 738-04058

Spacer, Shoulder, .38 x 1.0 x .7

$4.49

$

In Stock, only 1 left!

0

9

Troy-Bilt 738-04162A

Spacer, Shoulder, .884 x 1.9
(Superseded to 738-04162C)

$13.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 756-04129

Pulley, Idler, 4.25" Dia.
(Superseded to 753-08171)

$35.99

$

In Stock, Qty 20+

0
