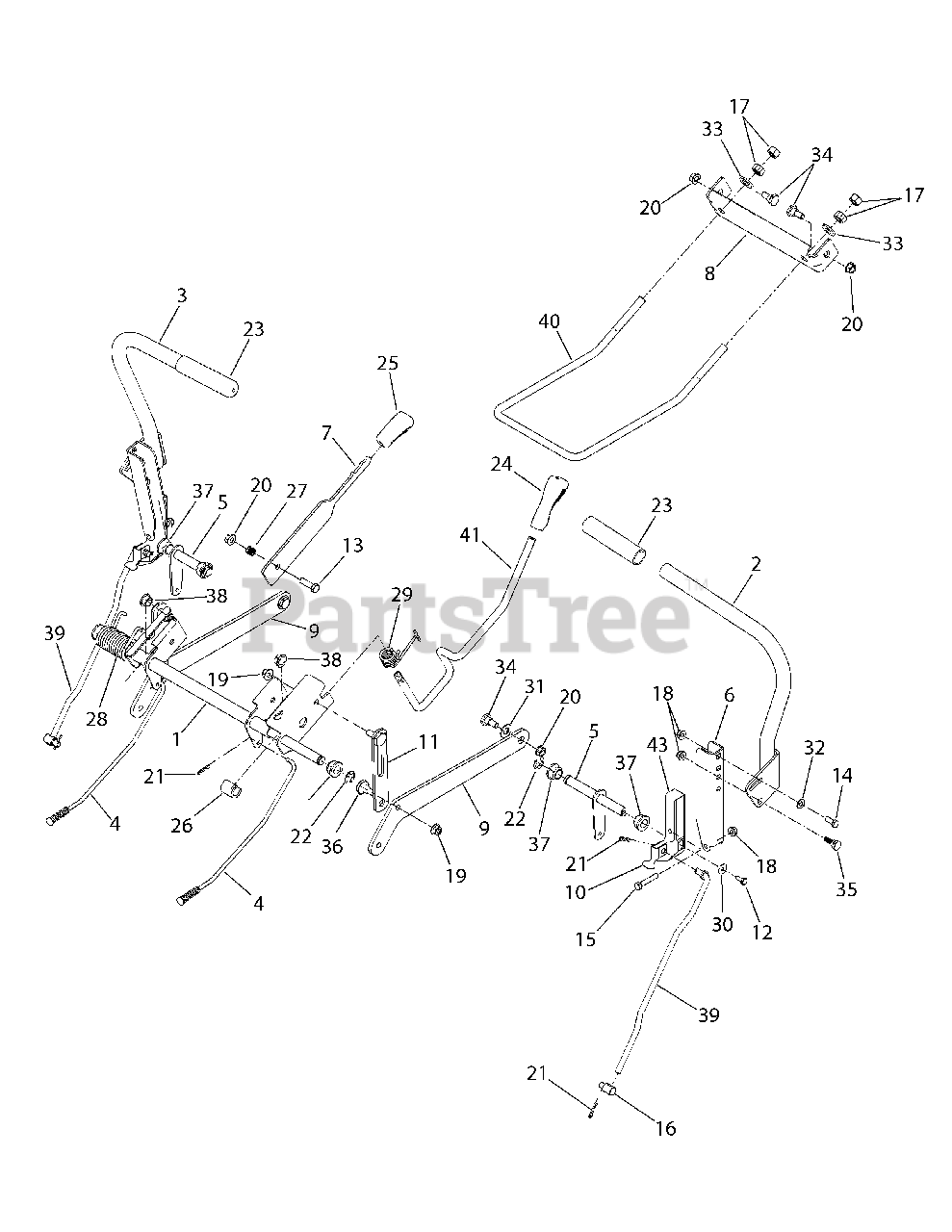

17AF2ACP011 - Troy-Bilt Mustang RZT 50" Zero-Turn Mower (2008) Deck Lift & Controls Parts Diagram

Mustang RZT 50" Zero-Turn Mower

Deck Lift & Controls Parts Diagram

  • Title

1

Troy-Bilt 603-04160B

Shaft Assembly, Deck Lift
(Superseded to 603-04160C-0637)

Variations

Troy-Bilt 603-04160B-0637

SHAFT ASM-DECK LIF - POWDER BLACK (0637)

$161.99

$

Usually ships in 3-6 days

0

$161.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 603-04387

Lever, Lapbar, RH

Variations

Troy-Bilt 603-04387-0637

HANDLE-RH LAPBAR - POWDER BLACK (0637)

$

$

Not available

Troy-Bilt 603-04387-0638

HANDLE-RH LAPBAR - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

3

Troy-Bilt 603-04388

Lever, Lapbar, LH

Variations

Troy-Bilt 603-04388-0637

Left Lapbar Handle - POWDER BLACK (0637)

$

$

Not available

Troy-Bilt 603-04388-0638

HANDLE-LH LAPBAR - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

4

Troy-Bilt 647-04065

Rod, Brake
(Superseded to 947-04065)

$39.99

$

In Stock, only 1 left!

0

5

Troy-Bilt 647-04099

Shaft, Damper Control
(Superseded to 647-04099A)

$91.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 703-05387B

Bracket, Lapbar Pivot

$28.99

$

In Stock, Qty 5

0

7

Troy-Bilt 703-05396

Handle, Brake
(Superseded to 703-05396A-0637)

Variations

Troy-Bilt 703-05396-0637

Brake Handle - POWDER BLACK (0637)

$37.99

$

Usually ships in 3-6 days

0

$37.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 703-05414A

Bracket, Deck Hangar

Variations

Troy-Bilt 703-05414A-0606

BRACKET-DECK HANGER - MAJESTIC ORANGE (0606)

$66.99

$

Usually ships in 3-6 days

0

Troy-Bilt 703-05414A-4021

Hanger Deck Bracket - CUB YELLOW 2 (4021)

$66.99

$

Usually ships in 3-6 days

0

Troy-Bilt 703-05414A-0650

BRACKET-DECK HANGER - RED METALLIC (0650)

$66.99

$

Usually ships in 3-6 days

0

Troy-Bilt 703-05414A-0691

BRACKET-DECK HANGER - BLACK JACK (0691)

$66.99

$

Usually ships in 3-6 days

0

Troy-Bilt 703-05414A-4033

Hanger Deck Bracket - FLINT MICA (4033)

$66.99

$

Usually ships in 3-6 days

0

Troy-Bilt 703-05414A-4044

BRACKET-DECK HANGER - CRAFTSMAN RED (4044)

$66.99

$

Usually ships in 3-6 days

0

Troy-Bilt 703-05414A-0637

BRACKET-DECK HANGER - POWDER BLACK (0637)

$66.99

$

Usually ships in 3-6 days

0

Troy-Bilt 703-05414A-0638

BRACKET-DECK HANGER - MTD/TROY-BILT RED (0638)

$66.99

$

Usually ships in 3-6 days

0

Troy-Bilt 703-05414A-0674

BRACKET-DECK HANGER - YARDMAN YELLOW (0674)

$66.99

$

Usually ships in 3-6 days

0

Troy-Bilt 703-05414A-0709

BRACKET-DECK HANGER - MASTERCRAFT GREEN (0709)

$66.99

$

Usually ships in 3-6 days

0

Troy-Bilt 703-05414A-0716

BRACKET-DECK HANGER - CUB YELLOW-99 (0716)

$66.99

$

Usually ships in 3-6 days

0

Troy-Bilt 703-05414A-4015

BRACKET-DECK HANGER - FIRE RED (4015)

$66.99

$

Usually ships in 3-6 days

0

$53.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 703-05793A

Arm, Deck Lift

Variations

Troy-Bilt 703-05793A-0637

Deck Lift Arm - POWDER BLACK (0637)

$53.99

$

In Stock, Qty 7

0

Troy-Bilt 703-05793A-0606

Deck Lift Arm - MAJESTIC ORANGE (0606)

$53.99

$

In Stock, Qty 7

0

Troy-Bilt 703-05793A-0638

ARM-DECK LIFT - MTD/TROY-BILT RED (0638)

$53.99

$

In Stock, Qty 7

0

Troy-Bilt 703-05793A-0674

ARM-DECK LIFT - YARDMAN YELLOW (0674)

$53.99

$

Usually ships in 3-6 days

0

Troy-Bilt 703-05793A-0691

Deck Lift Arm - BLACK JACK (0691)

$49.99

$

Usually ships in 3-6 days

0

Troy-Bilt 703-05793A-0716

Deck Lift Arm - CUB YELLOW-99 (0716)

$53.99

$

In Stock, Qty 7

0

Troy-Bilt 703-05793A-4015

ARM-DECK LIFT - FIRE RED (4015)

$49.99

$

Usually ships in 3-6 days

0

Troy-Bilt 703-05793A-4021

Deck Lift Arm - CUB YELLOW 2 (4021)

$53.99

$

In Stock, Qty 7

0

Troy-Bilt 703-05793A-4033

ARM-DECK LIFT - FLINT MICA (4033)

$53.99

$

In Stock, Qty 7

0

Troy-Bilt 703-05793A-4044

ARM-DECK LIFT - CRAFTSMAN RED (4044)

$53.99

$

In Stock, Qty 7

0

Troy-Bilt 703-05793A-0650

ARM-DECK LIFT - RED METALLIC (0650)

$53.99

$

In Stock, Qty 7

0

Troy-Bilt 703-05793A-0665

ARM-DECK LIFT - YARDMAN GREEN (0665)

$53.99

$

In Stock, Qty 7

0

$43.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 703-06096

Bracket, Actuator
(Superseded to 703-06096A)

$10.99

$

In Stock, only 2 left!

0

11

Troy-Bilt 703-06169

Link, Deck Lift
(Superseded to 703-06169-0637)

Variations

Troy-Bilt 703-06169-0637

Lift Link Plate, Rz - POWDER BLACK (0637)

$16.99

$

In Stock, only 1 left!

0

$16.99

$

In Stock, only 1 left!

0

12

Troy-Bilt 710-0433

Screw, Hex Cap Lock, 1/4-20 x .625 Gr5

$4.49

$

In Stock, Qty 20+

0

13

Troy-Bilt 710-3005

Screw, Hex Cap, 3/8-16 x 1.25 Gr5

$3.99

$

In Stock, Qty 10

0

14

Troy-Bilt 710-3008

Screw, Hex Cap, 5/16-18 x .75 Gr5

$4.49

$

In Stock, Qty 20+

0

15

Troy-Bilt 710-3180

Screw, Hex Cap, 5/16-18 x 1.75 Gr5

$5.49

$

In Stock, Qty 11

0

16

Troy-Bilt 711-0832

Ferrule, 3/8-24 x .375
(Superseded to 911-0832)

$15.99

$

In Stock, only 4 left!

0

17

Troy-Bilt 712-0208

Nut, Hex, 1/2-13 GR5

$

$

Currently unavailable

18

Troy-Bilt 712-04063

Nut, U Type Speed, 5/16-18 GrF

$3.99

$

In Stock, Qty 5

0

19

Troy-Bilt 712-04065

Nut, Hex Insert Flange Lock, 3/8-18 GrF

$3.99

$

In Stock, Qty 20+

0

20

Troy-Bilt 712-0431

Nut, Hex Flange Lock, 3/8-16 GrF
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

21

Troy-Bilt 714-0104

Pin, Internal Cotter

$4.49

$

In Stock, Qty 20+

0

22

Troy-Bilt 716-0106

‘E` Ring

$4.49

$

In Stock, Qty 12

0

23

Troy-Bilt 720-0274

Grip, Lapbar

$11.99

$

In Stock, Qty 11

0

24

Troy-Bilt 720-0311

Grip, Handle

$15.99

$

In Stock, only 1 left!

0

25

Troy-Bilt 731-04735

Grip, Brake Handle

$20.99

$

In Stock, only 1 left!

0

26

Troy-Bilt 731-05732

Spacer, .621 ID x 1.0

$3.49

$

Usually ships in 3-6 days

0

27

Troy-Bilt 732-0334

Spring, Compression, .5 x.5

$3.99

$

In Stock, Qty 20+

0

28

Troy-Bilt 732-04420

Spring, Torsion

$20.99

$

In Stock, only 1 left!

0

29

Troy-Bilt 732-04869A

Spring, Torsion RZT

Note: (Replaces 732-0874 & 732-04422 in this application)

$4.49

$

In Stock, Qty 20+

0

30

Troy-Bilt 736-0270

Washer, Bell, .265 .75 x .062

$3.99

$

In Stock, Qty 20+

0

31

Troy-Bilt 736-0272

Washer, Flat, .51 x 1.00 x .06

$4.99

$

In Stock, Qty 20+

0

32

Troy-Bilt 736-0275

Washer, Flat, .344 x .6888 x 065

$6.99

$

Usually ships in 3-6 days

0

33

Troy-Bilt 736-3019

Washer, Flat, .531 x 1.062 x .134 HT

$5.99

$

In Stock, Qty 11

0

34

Troy-Bilt 738-0143

Screw, Shoulder, .496 x .336:3/8-16

$4.49

$

In Stock, Qty 20+

0

35

Troy-Bilt 738-0296

Screw, Shoulder, .437 x .268:5/16-18

$4.49

$

In Stock, Qty 20+

0

36

Troy-Bilt 738-0507B

Screw, Shoulder, .5 x .434

$4.49

$

In Stock, only 4 left!

0

37

Troy-Bilt 741-0225

Bearing, Hex Flange
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 20+

0

38

Troy-Bilt 741-3074

Bearing, Flange, .625 x .938 x .344

$4.99

$

In Stock, Qty 20+

0

39

Troy-Bilt 747-04225A

Rod, Lapbar Control

$42.99

$

In Stock, only 1 left!

0

40

Troy-Bilt 747-04401A

Rod, Deck Front Hanger

$58.99

$

In Stock, only 1 left!

0

41

Troy-Bilt 747-04637

Rod, Deck Lift Handle

$51.99

$

In Stock, only 1 left!

0

43

Troy-Bilt 748-04052

Hub, Lap Bar Control

Note: (10/01/2007 and prior)

$70.99

$

Usually ships in 3-6 days

0

43

Troy-Bilt 748-04169-0637

Hub, Lap Bar Control
(Superseded to 748-04169A)

Note: (10/01/2007 and after)

$47.99

$

Usually ships in 3-6 days

0
