17AF2ACP004 - MTD Gold Zero-Turn Mower (2011) Seat Adjustment Parts Diagram
Gold Zero-Turn Mower

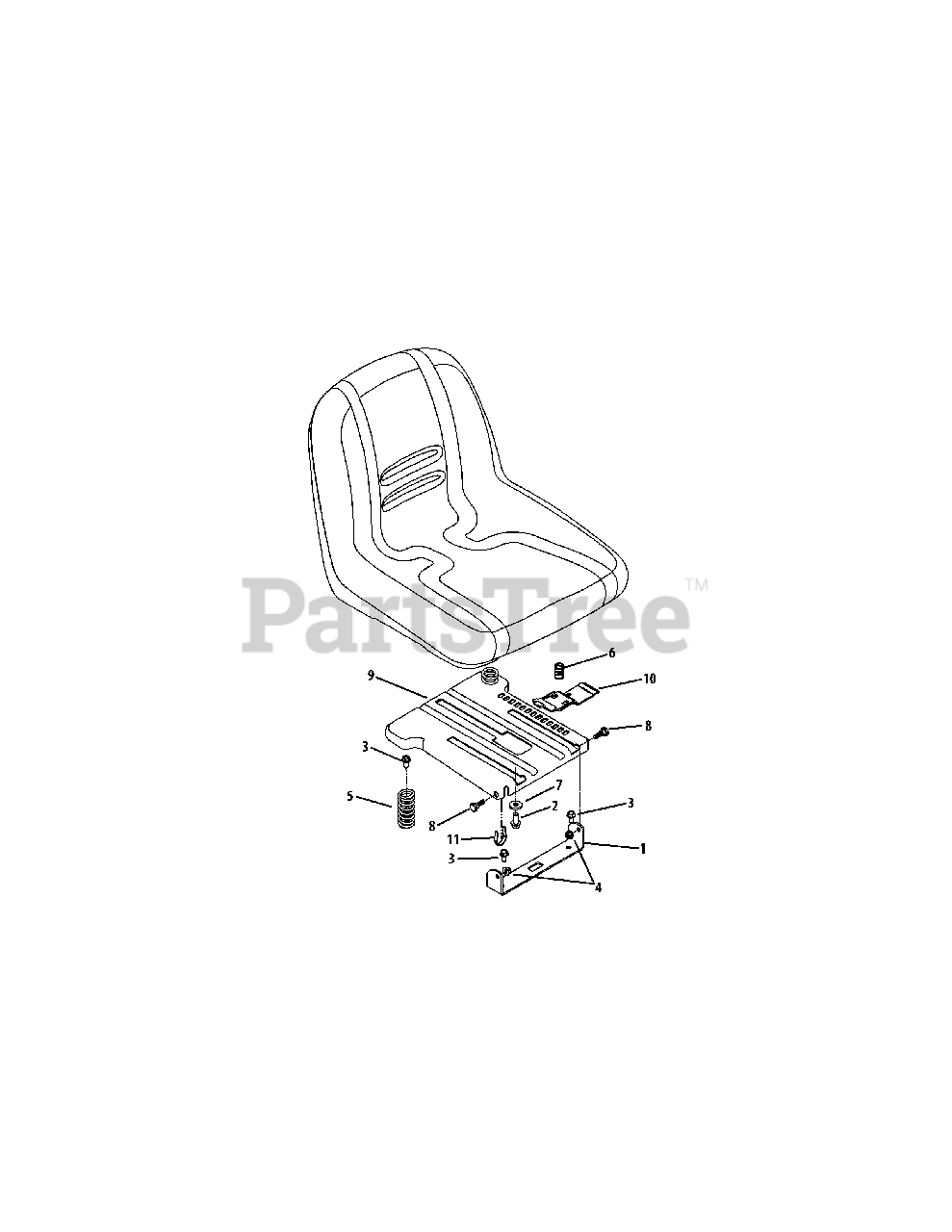

Seat Adjustment Parts Diagram
MTD 703-06941-0691
Seat Bracket
$
$
Not available
$4.49
$
In Stock, Qty 12
MTD 710-04484
Hex Washer Screw, 5/16-18 x .750
$3.99
$
In Stock, Qty 20+
MTD 712-04063
Flange Lock Nut, 5/16-18
$3.99
$
In Stock, only 4 left!
MTD 732-04035
Compression Spring
$10.99
$
In Stock, only 4 left!
MTD 732-04563
Compression Spring
$5.49
$
In Stock, Qty 20+
MTD 736-0258
Flat Washer, .385 x 1.0 x .135
$4.49
$
Usually ships in 3-6 days
$4.49
$
In Stock, Qty 20+
$68.99
$
Usually ships in 3-6 days
MTD 783-06050
Seat Adjustment Lever
$10.99
$
In Stock, only 1 left!
MTD 783-06448
Clip
$5.99
$
In Stock, only 3 left!
