17AF2ACP004 - MTD Gold Zero-Turn Mower (2010) Engine Connection, 50-Inch Kohler Engine Parts Diagram

Gold Zero-Turn Mower

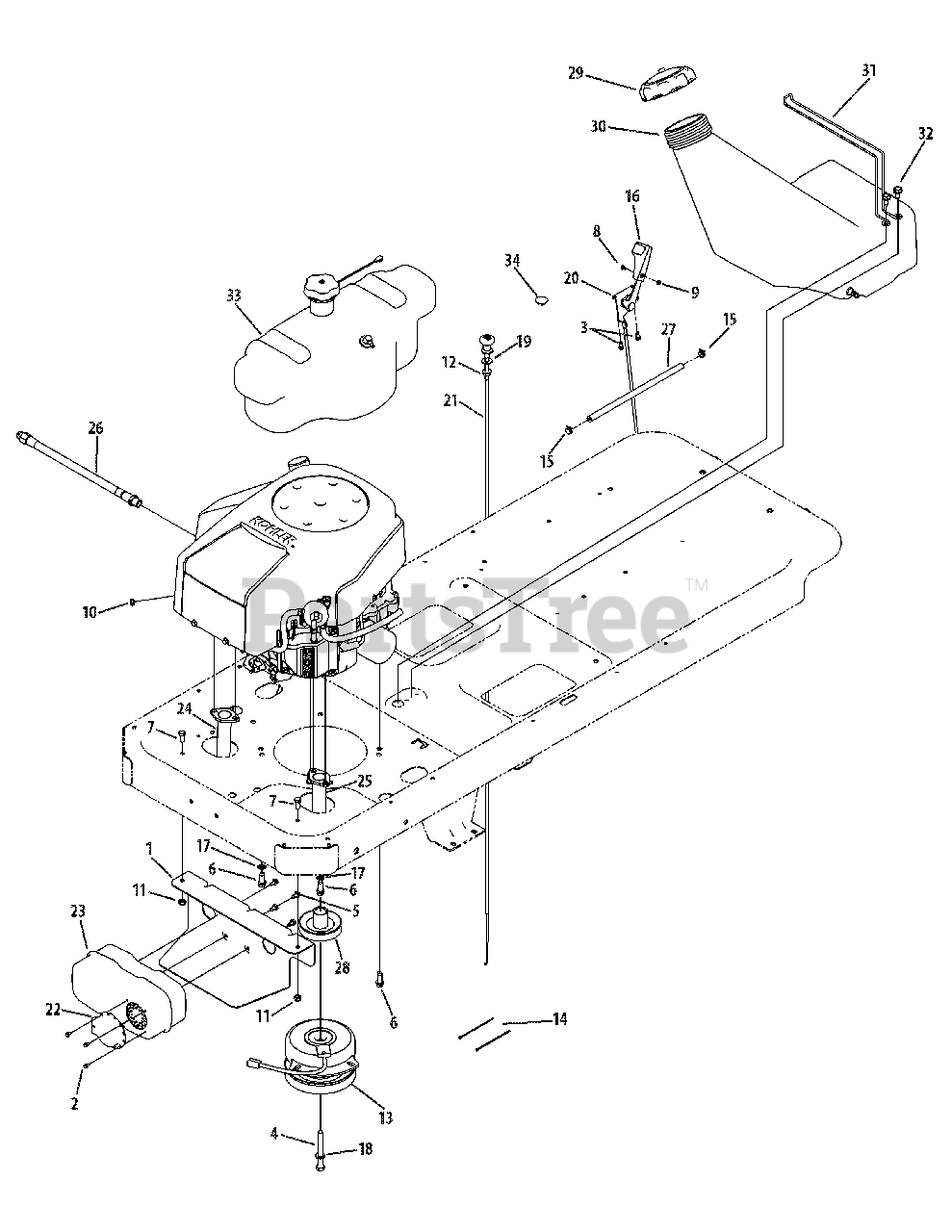

Engine Connection, 50-Inch Kohler Engine Parts Diagram

  • Title

1

MTD 703-05441A

Muffler Mount Bracket

$52.99

$

In Stock, only 3 left!

0

2

MTD 710-0227

Hex Washer Screw, #8-18 x .500

$4.49

$

In Stock, Qty 15

0

3

MTD 710-04261

Hex Washer Screw, #12-16 x .50

$6.49

$

In Stock, only 3 left!

0

4

MTD 710-04379A

Hex Lock Screw, 7/16-20 x 3.50

$6.49

$

Usually ships in 3-6 days

0

5

MTD 710-0599

Hex Washer Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

6

MTD 710-04683

Hex Washer Screw, 3/8-16 x 1.000
(Superseded to 710-04683C)

$6.49

$

In Stock, only 3 left!

0

7

MTD 710-3008

Hex Washer Screw, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

8

MTD 710-3217

Machine Screw, #8-32 x .375

$6.99

$

In Stock, Qty 7

0

9

MTD 712-0142

Hex Nut, #8-32

$4.49

$

In Stock, Qty 9

0

10

MTD 712-0271

Sems Nut, 1/4-20

$4.49

$

In Stock, Qty 10

0

11

MTD 912-0429

Hex Lock Nut, 5/16-18
(Superseded to 712-0429)

$4.49

$

In Stock, Qty 20+

0

12

N/A

Flange Lock Nut, 3/8-16

Note: Not used in this application

$

$

Not available

13

MTD 917-04552

Electric PTO Clutch

$531.99

$

Usually ships in 3-6 days

0

14

MTD 726-0197

Cable Tie

$3.99

$

In Stock, only 1 left!

0

15

MTD 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 18

0

16

MTD 731-04914

Throttle Control Knob

$13.99

$

Usually ships in 3-6 days

0

17

MTD 736-0148

Lock Washer, 3/8

$3.99

$

In Stock, only 3 left!

0

18

MTD 936-0171

Lock Washer, 7/16
(Superseded to 736-0171)

$4.49

$

In Stock, only 4 left!

0

19

N/A

Flat Washer, .406 x .875 x .059

Note: Not used in this application

$

$

Not available

20

MTD 746-04539

Throttle/Choke Control Cable
(Superseded to 746P04539)

$42.99

$

In Stock, only 2 left!

0

21

N/A

Choke Cable

Note: Not used in this application

$

$

Not available

22

MTD 751-0564B

Muffler Deflector

$13.99

$

In Stock, Qty 5

0

23

MTD 751-0616B

Dual Inlet Muffler
(Superseded to 951-0616B)

$163.99

$

In Stock, Qty 16

0

24

MTD 751-10253

Exhaust Pipe, LH

$72.99

$

In Stock, only 1 left!

0

25

MTD 751-10254

Exhaust Pipe, RH

$94.99

$

In Stock, only 1 left!

0

26

MTD 751-10291

Oil Drain Hose
(Superseded to 751-10291C)

$52.99

$

In Stock, only 2 left!

0

27

MTD 751-10349

Fuel Hose

$9.49

$

Usually ships in 3-6 days

0

28

MTD 756-04376

Engine Pulley

$44.99

$

In Stock, only 1 left!

0

29

MTD 951-3124E

Fuel Cap

$36.99

$

In Stock, only 3 left!

0

30

MTD 751-10057D

Fuel Tank

$309.99

$

Usually ships in 3-6 days

0

31

MTD 747-04228A

Tank Mounting Wire

$

$

Not available

32

MTD 710-04484

Hex Washer Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

33

N/A

Fuel Tank Assembly

Note: Not used in this application

$

$

Not available

34

MTD 731-1999

Choke Plug

$10.99

$

Usually ships in 3-6 days

0
