17AF2ACP004 - MTD Gold Zero-Turn Mower (2009) Frame & Drive Idler Assembly Parts Diagram

Gold Zero-Turn Mower

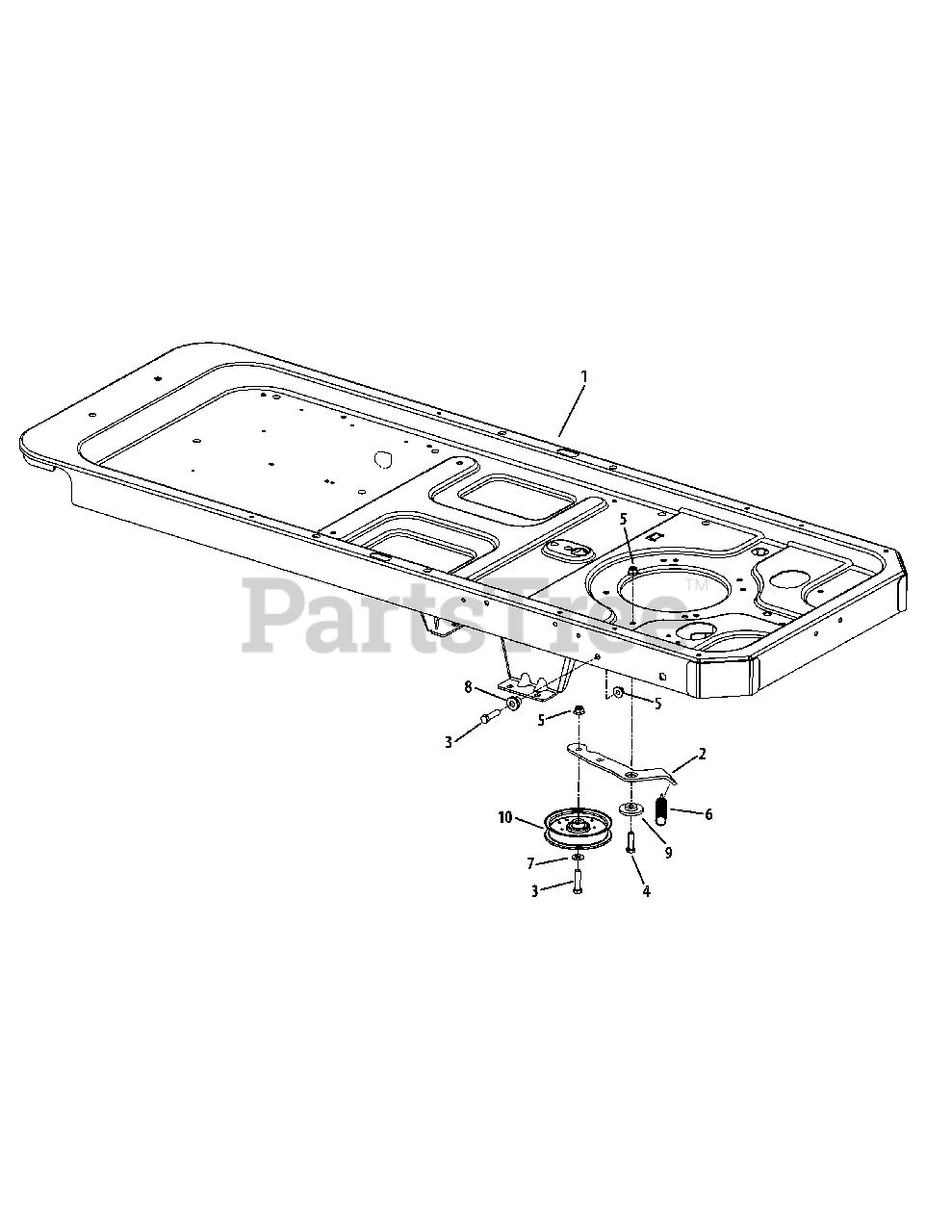

Frame & Drive Idler Assembly Parts Diagram

  • Title

1

MTD 603-04691

Frame Assembly
(Superseded to 603-04680A)

Variations

MTD 603-04691-0637

FRAME ASM-RZT - POWDER BLACK (0637)

$897.99

$

Usually ships in 3-6 days

0

MTD 603-04691-0606

FRAME ASM-RZT - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 603-04691-0638

FRAME ASM-RZT - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 603-04691-0650

FRAME ASM-RZT - RED METALLIC (0650)

$

$

Not available

MTD 603-04691-0691

FRAME ASM-RZT - BLACK JACK (0691)

$

$

Not available

MTD 603-04691-0709

FRAME ASSY-RZT - MASTERCRAFT GREEN (0709)

$

$

Not available

MTD 603-04691-4015

FRAME ASM-RZT - FIRE RED (4015)

$

$

Not available

MTD 603-04691-4021

FRAME ASM-RZT - CUB YELLOW 2 (4021)

$

$

Not available

MTD 603-04691-4033

FRAME ASM-RZT - FLINT MICA (4033)

$

$

Not available

$839.99

$

Usually ships in 3-6 days

0

2

MTD 703-05829-0637

Drive Idler Arm
(Superseded to 703-05829)

$42.99

$

In Stock, only 1 left!

0

3

MTD 710-0520

Hex Screw, 3/8-16 x 1.5

$4.49

$

In Stock, Qty 6

0

4

MTD 710-3005

Hex Screw, 3/8-16 x 1.25

$3.99

$

In Stock, Qty 9

0

5

MTD 712-04065

Flange Nut, 3/8-16

$3.99

$

In Stock, Qty 18

0

6

MTD 732-0626

Extension Spring, .75 x 5.06

$12.99

$

In Stock, only 1 left!

0

7

MTD 936-0300

Flat Washer, .406 x .875 x .059
(Superseded to 736-0300)

$4.49

$

In Stock, Qty 20+

0

8

MTD 738-04058

Shoulder Spacer, .39 x 1.0 x .7

$4.49

$

Usually ships in 3-6 days

0

9

MTD 738-04162A

Shoulder Spacer, .884 x .19
(Superseded to 738-04162C)

$13.99

$

In Stock, Qty 20+

0

10

MTD 756-04129B

Idler Pulley, 4.25 Dia.
(Superseded to 753-08171)

$35.99

$

In Stock, Qty 20+

0
