17AF2ACP004 - MTD Gold Zero-Turn Mower (2009) Drive System Parts Diagram

Gold Zero-Turn Mower

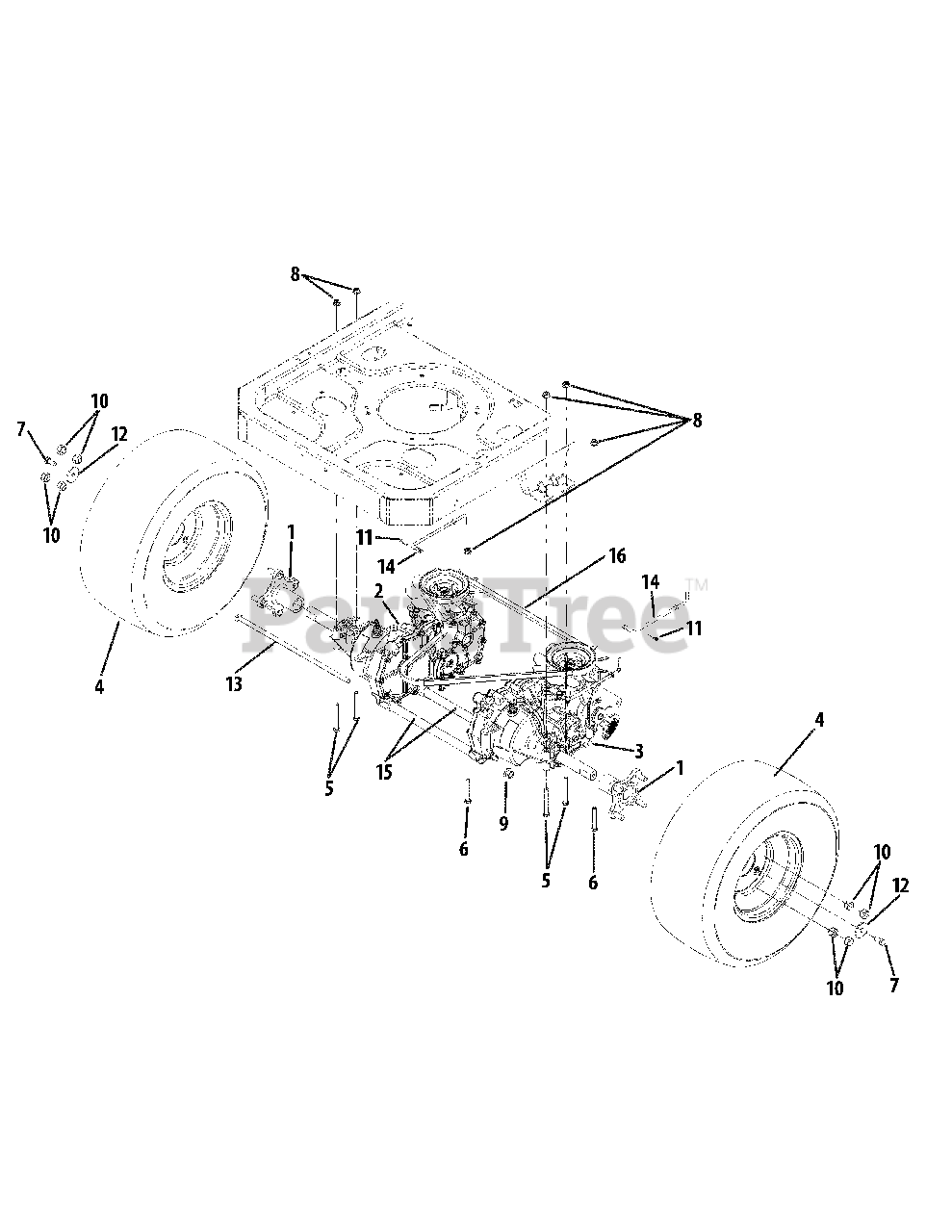

Drive System Parts Diagram

  • Title
1

MTD 918-04317

Wheel Hub, 7/16-14 x 1.6

$116.99

$

In Stock, only 1 left!

0

2

MTD 918-04431A

Transmission Assembly, LH
(Superseded to 918-04431B)

$1719.99

$

Usually ships in 3-6 days

0

3

MTD 918-04432A

Transmission Assembly, RH
(Superseded to 918-04432B)

$1805.99

$

Usually ships in 3-6 days

0

4

MTD 634-04294

Wheel Assembly, 18 x 8.5-8 (42" Deck)

$279.99

$

Usually ships in 3-6 days

0

4

MTD 603-04173-0662

Rim Assembly

Note: Not shown

$88.99

$

Usually ships in 3-6 days

0

4

MTD 934-0255

Air Valve

Note: Not shown

$4.49

$

In Stock, Qty 20+

0

4

MTD 734-04246-0901

Tire, 18 x 8.5-8
(Superseded to 734-04246-0906)

Note: Not shown

$85.99

$

In Stock, only 2 left!

0

4

MTD 634-04171

Wheel Assembly, 18 x 9.5-8 (50" Deck)
(Superseded to 634-04128-0911)

$

$

Not available

4

MTD 603-04175-0662

Rim Assembly

Note: Not shown

$

$

Not available

4

MTD 934-0255

Air Valve

Note: Not shown

$4.49

$

In Stock, Qty 20+

0

4

MTD 734-1729

Tire, 18 x 9.5-8

Note: Not shown

Variations

MTD 734-1729-0906

Turf Saver Tire, 18 X 9.5 X 8 - Kenda (0906)

$

$

Not available

MTD 734-1729-0901

Turf Saver Tire, 18 X 9.5-8 Sq - Carlisle (0901)

$

$

Not available

$169.99

$

Usually ships in 3-6 days

0

5

MTD 710-0176

Hex Cap Screw, 5/16-18 x 2.75

$4.49

$

In Stock, only 2 left!

0

6

MTD 710-0395

Hex Cap Screw, 5/16-18 x 2.25

$4.99

$

In Stock, only 1 left!

0

7

MTD 710-3119

Hex Cap Screw, 3/8-16 x .75

$6.99

$

In Stock, only 1 left!

0

8

MTD 712-04063

Hex Flange Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

9

MTD 712-0459

Hex Flange Nut, 7/16-20

$4.99

$

In Stock, Qty 20+

0

10

MTD 712-3050

Lug Nut, 7/16-14

$9.99

$

In Stock, only 2 left!

0

11

MTD 914-0507

Cotter Pin, 3/32 x .75

$4.49

$

In Stock, Qty 17

0

12

MTD 936-0227

Flat Washer, .39 x 1.5 .134
(Superseded to 736-0227)

$

$

Not available

13

MTD 738-04192

Rod, .405 x 14.0
(Superseded to 738-04192B)

$21.99

$

Usually ships in 3-6 days

0

14

MTD 747-04217C-0637

Bypass Rod

$21.99

$

Usually ships in 3-6 days

0

15

MTD 750-04561

Tube, .45 x .69 x 10.2
(Superseded to 750-04561A)

$26.99

$

In Stock, only 1 left!

0

16

MTD 954-04043A

V-Belt
(Superseded to 954-04043B)

$42.99

$

In Stock, Qty 20+

0
