17AF2ACK004 - MTD Gold Zero-Turn Mower (2012) Deck Lift & Controls 54-Inch Decks Parts Diagram

Gold Zero-Turn Mower

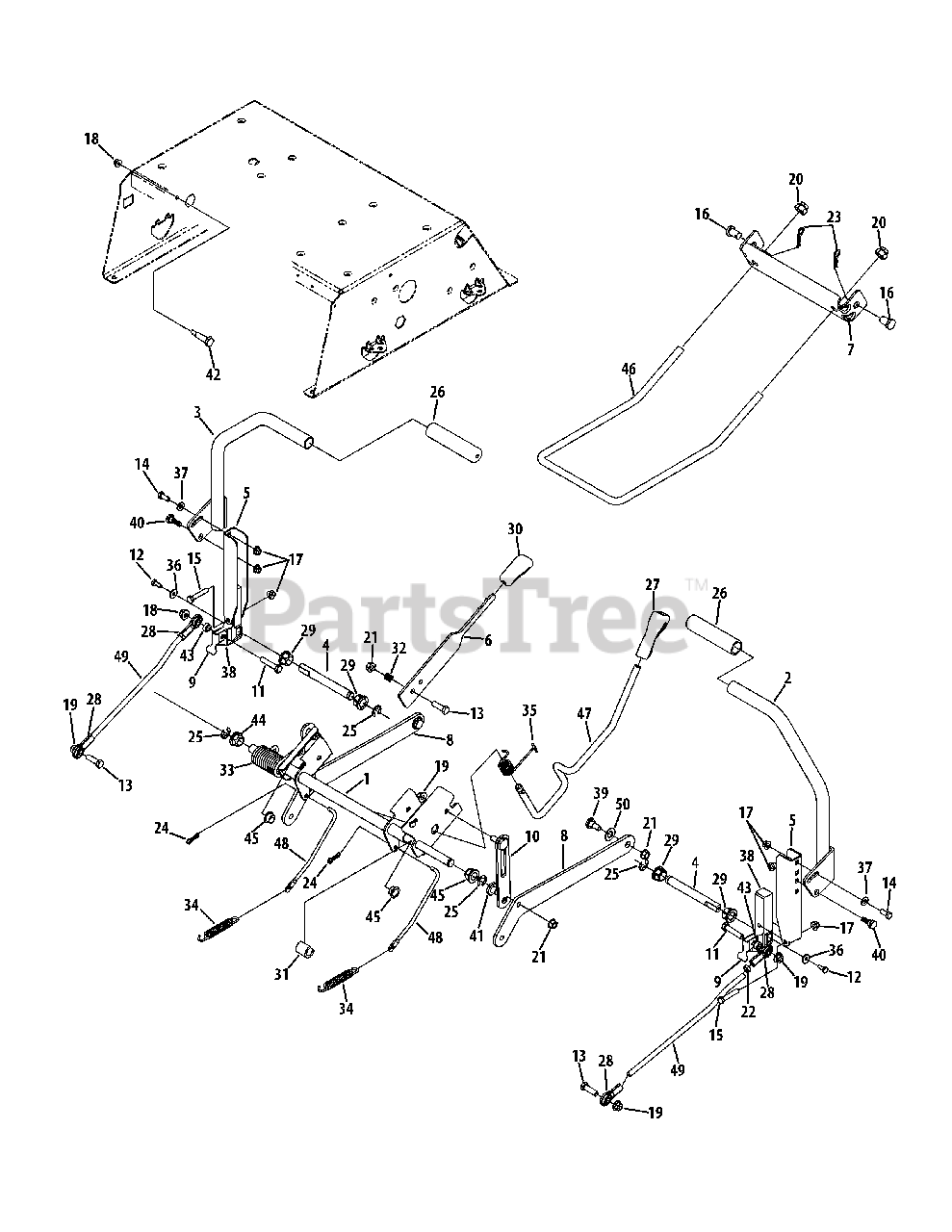

Deck Lift & Controls 54-Inch Decks Parts Diagram

  • Title

1

MTD 603-04160C-0637

Deck Lift Shaft Assembly

$161.99

$

Usually ships in 3-6 days

0

2

MTD 603-04322-0662

RH Lapbar Lever Assembly

$

$

Not available

3

MTD 603-04324-0662

LH Lapbar Lever Assembly

$

$

Not available

4

MTD 747-04226A

Shaft Control

$52.99

$

Usually ships in 3-6 days

0

5

MTD 703-05387B

Lapbar Pivot Bracket

$28.99

$

In Stock, Qty 5

0

6

MTD 703-05396A-0637

Brake/Shabs Handle

$37.99

$

Usually ships in 3-6 days

0

7

MTD 703-05414A-0691

Front Deck Hanger Bracket
(Superseded to 703-05414A-0637)

$66.99

$

Usually ships in 3-6 days

0

8

MTD 703-05793A-0691

Deck Lift Arm Plate

$49.99

$

Usually ships in 3-6 days

0

9

MTD 703-06096A

Actuator Switch Bracket

$10.99

$

In Stock, only 2 left!

0

10

MTD 703-06169-0637

Link Lift Plate

$16.99

$

In Stock, only 1 left!

0

11

MTD 710-0347

Hex Screw, 3/8-16 x 1.75

$5.49

$

In Stock, Qty 20+

0

12

MTD 710-0433

Hex Lock Screw, 1/4-20 x .625

$4.49

$

In Stock, only 2 left!

0

13

MTD 710-3005

Hex Screw, 3/8-16 x 1.25

$3.99

$

In Stock, Qty 12

0

14

MTD 710-3008

Hex Screw, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

15

MTD 710-3180

Hex Screw, 5/16-18 x 1.75

$5.49

$

In Stock, Qty 15

0

16

MTD 911-0332

Clevis Pin, .50 x .78

$16.99

$

In Stock, Qty 18

0

17

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

18

MTD 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

19

MTD 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

20

MTD 712-04243

Flex Lock Nut, 1/2-13

$4.49

$

In Stock, Qty 20+

0

21

MTD 712-0375

Hex Lock Nut, 3/8-16, Centerlock

$4.49

$

In Stock, Qty 6

0

22

MTD 912-3001

Jam Nut, 3/8-24

$6.99

$

In Stock, Qty 18

0

23

MTD 914-04023

Internal Cotter Pin, .080 x 1.5625
(Superseded to 714-04023)

$4.49

$

In Stock, only 4 left!

0

24

MTD 714-04040

Bow-Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

25

MTD 716-0106

E-Ring, .625

$4.49

$

In Stock, only 2 left!

0

26

MTD 720-0274

Grip, 1.0 x 5.0

$11.99

$

In Stock, only 1 left!

0

27

MTD 720-0311

Handle Grip, 1/2

$15.99

$

In Stock, only 2 left!

0

28

MTD 723-04080

B/Joint Rode End, .375

$41.99

$

Usually ships in 3-6 days

0

29

MTD 948-0227A

Hex Flange Bearing, .629

$8.49

$

In Stock, Qty 14

0

30

MTD 731-04735

Selector Handle

$20.99

$

In Stock, only 1 left!

0

31

MTD 731-05732

Spacer, .62 x 1.00

$3.49

$

Usually ships in 3-6 days

0

32

MTD 932-0334

Compression Spring, .50 x .50
(Superseded to 732-0334)

$3.99

$

In Stock, Qty 19

0

33

MTD 732-04420

Torsion Spring, 1.19 x 2.78

$20.99

$

In Stock, only 1 left!

0

34

MTD 732-04432

Extension Spring, .59 x 4.00

$9.49

$

In Stock, only 2 left!

0

35

MTD 732-04869A

Torsion Spring

$4.49

$

In Stock, Qty 5

0

36

MTD 736-0270

Bell Washer, .265 x .75 x .062

$3.99

$

In Stock, Qty 20+

0

37

MTD 936-0275

Flat Washer, .344 x .688 x .065
(Superseded to 736-0275)

$

$

Not available

38

MTD 748-04169A

PM Control Hub

$47.99

$

Usually ships in 3-6 days

0

39

MTD 738-0143

Shoulder Bolt, 3/8-16 x .496 x .336

$4.49

$

In Stock, Qty 20+

0

40

MTD 938-0296

Shoulder Screw, 5/16-18 x .437 x .268
(Superseded to 738-0296)

$4.49

$

In Stock, Qty 20+

0

41

MTD 938-0507B

Shoulder Screw, .500 x .434
(Superseded to 738-0507B)

$4.49

$

In Stock, only 4 left!

0

42

MTD 938-0572

Shoulder Screw, .374 x 1.16
(Superseded to 738-0572)

$

$

Not available

43

MTD 750-04776

Spacer, .380 x .625 x .255

$5.49

$

In Stock, only 2 left!

0

44

MTD 941-0225

Hex Flange Bearing

$7.49

$

In Stock, Qty 20+

0

45

MTD 741-3074

Flange Bearing, .626 x .938 x .344

$4.99

$

In Stock, Qty 18

0

46

MTD 747-04401A

Deck Lift Frong Hanger Rod

$58.99

$

In Stock, only 1 left!

0

47

MTD 747-04637

Deck Lift Handle Rod

$51.99

$

In Stock, only 1 left!

0

48

MTD 747-04651

Brake Rod

$17.99

$

Usually ships in 3-6 days

0

49

MTD 747-05057

Lapbar Rod Control

$

$

Not available

50

MTD 936-0272

Flat Washer, .510 x 1.00 x .060
(Superseded to 736-0272)

$4.99

$

In Stock, Qty 20+

0
