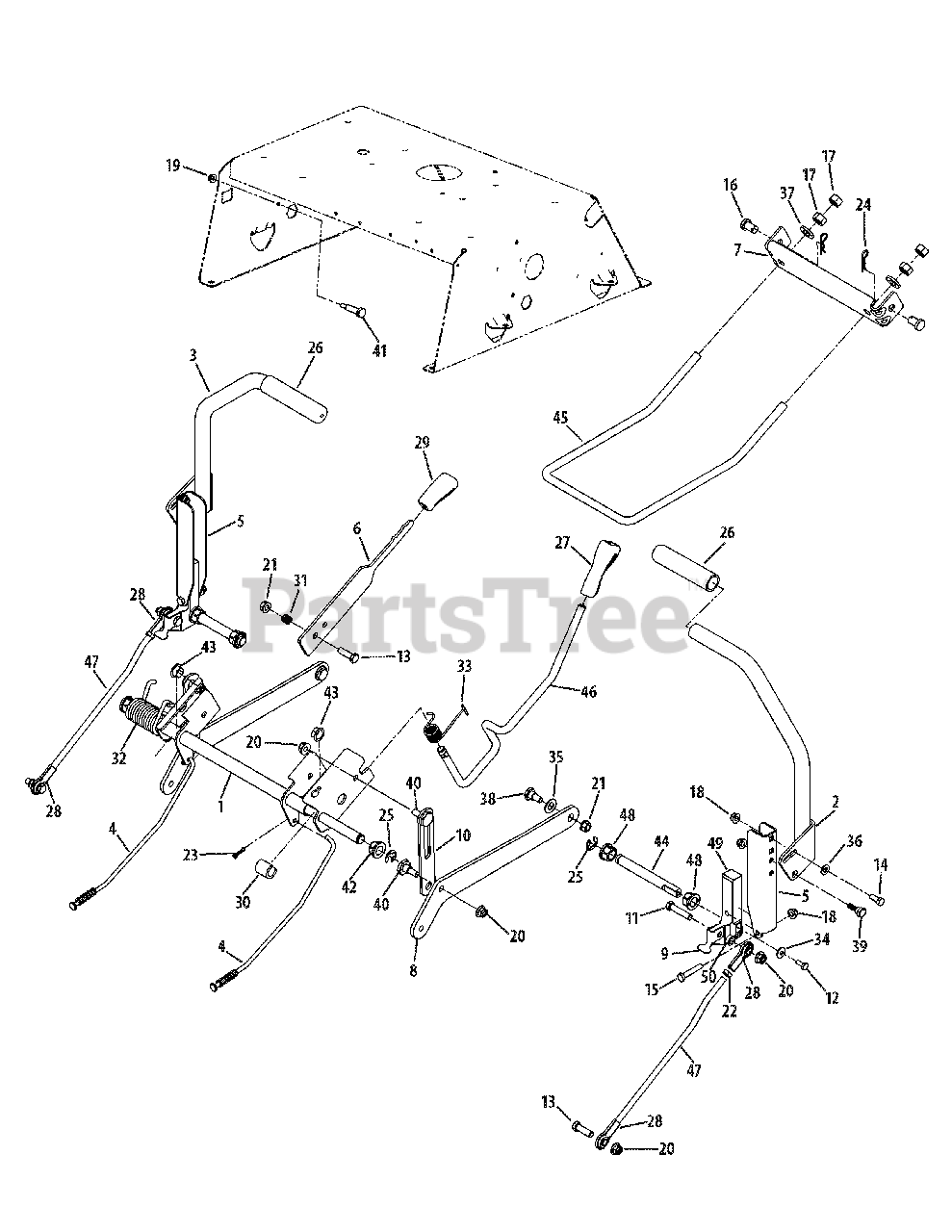

17AE2ACG004 - MTD Gold Zero-Turn Mower (2010) Deck Lift & Controls Parts Diagram

Gold Zero-Turn Mower

Deck Lift & Controls Parts Diagram

  • Title

1

MTD 603-04160B-0637

Deck Lift Shift Assembly
(Superseded to 603-04160C-0637)

$161.99

$

Usually ships in 3-6 days

0

2

MTD 603-04322-0637

RH Lapbar Lever Assembly - Powder Black

$

$

Not available

2

MTD 603-04322-0709

RH Lapbar Lever Assembly - Green

$

$

Not available

2

MTD 603-04322-0662

RH Lapbar Lever Assembly - Grey

$

$

Not available

3

MTD 603-04324-0637

LH Labpar Lever Assembly - Powder Black

$75.99

$

Usually ships in 3-6 days

0

3

MTD 603-04324-0662

LH Labpar Lever Assembly - Grey

$

$

Not available

3

MTD 603-04324-0709

LH Labpar Lever Assembly - Green

$

$

Not available

4

MTD 947-04065

Brake Rod Assembly

$39.99

$

In Stock, only 1 left!

0

5

MTD 703-05387B

Lapbar Pivot Bracket

$28.99

$

In Stock, Qty 5

0

6

MTD 703-05396A-0637

Brake/Shabs Assembly

$37.99

$

Usually ships in 3-6 days

0

7

MTD 703-05414A-0691

Front Deck Hanger Bracket - Powder Black
(Superseded to 703-05414A-0637)

$66.99

$

Usually ships in 3-6 days

0

8

MTD 703-05793A-0691

Deck Lift Arm Plate

$49.99

$

Usually ships in 3-6 days

0

9

MTD 703-06096A

Switch Actuator Bracket

$10.99

$

In Stock, only 2 left!

0

10

MTD 703-06169-0637

Lift Link Plate

$16.99

$

In Stock, only 1 left!

0

11

MTD 710-0347

Hex Screw, 3/8-16 x 1.75

$5.49

$

In Stock, Qty 20+

0

12

MTD 710-0433

Hex Screw, 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

13

MTD 710-3005

Hex Screw, 3/8-16 x 1.25

$3.99

$

In Stock, Qty 20+

0

14

MTD 710-3008

Hex Screw, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

15

MTD 710-3180

Hex Screw, 5/16-18 x 1.75

$5.49

$

In Stock, Qty 20+

0

16

MTD 911-0332

Clevis Pin, .50 x .78

$16.99

$

In Stock, Qty 14

0

17

MTD 712-04243

Flex Lock Nut, 1/2-13

$4.49

$

In Stock, Qty 20+

0

18

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

19

MTD 712-04064

Flange Lock Nut, 1/4-20 (50" Deck)

$3.99

$

In Stock, Qty 20+

0

20

MTD 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

21

MTD 912-0431

Flange Lock Nut, 3/8-16

$4.99

$

In Stock, Qty 20+

0

22

MTD 912-3001

Jam Nut, 3/8

$6.99

$

In Stock, Qty 17

0

23

MTD 714-04040

Bow-Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

24

MTD 914-04023

Cotter Pin, .080 x 1.5625
(Superseded to 714-04023)

$4.49

$

In Stock, Qty 20+

0

25

MTD 716-0106

E-Ring

$4.49

$

In Stock, Qty 12

0

26

MTD 720-0274

Grip, 1.0 x 5.0

$11.99

$

In Stock, Qty 8

0

27

MTD 720-0311

Handle Grip, 1/2

$15.99

$

In Stock, only 1 left!

0

28

MTD 723-04035

Rod End

$36.99

$

In Stock, only 4 left!

0

29

MTD 731-04735

Selector Handle

$20.99

$

In Stock, only 1 left!

0

30

MTD 731-05732

Spacer, .621 x 1.00

$3.49

$

Usually ships in 3-6 days

0

31

MTD 932-0334

Compression Spring, .50 x .50
(Superseded to 732-0334)

$3.99

$

In Stock, Qty 20+

0

32

MTD 732-04420

Torsion Spring, 1.191 x 2.78

$20.99

$

In Stock, only 1 left!

0

33

MTD 732-04869A

Spring, Torsion RZT

Note: (Replaces 732-0874 in this application)

$4.49

$

In Stock, Qty 20+

0

34

MTD 736-0270

Bell Washer, .265 x .75 x .062

$3.99

$

In Stock, Qty 20+

0

35

MTD 936-0272

Flat Washer, .510 x 1.00 x .060
(Superseded to 736-0272)

$4.99

$

In Stock, Qty 20+

0

36

MTD 936-0275

Flat Washer, .344 x .688 x .065
(Superseded to 736-0275)

$

$

Not available

37

MTD 736-3019

Flat Washer, .531 x .062 x .134

$5.99

$

In Stock, Qty 11

0

38

MTD 738-0143

Shoulder Bolt, 3/8-16 x .496 x .336

$4.49

$

In Stock, Qty 20+

0

39

MTD 938-0296

Shoulder Screw, 5/16 x .437 x .268
(Superseded to 738-0296)

$4.49

$

In Stock, Qty 20+

0

40

MTD 938-0507B

Shoulder Screw, .500 x .434
(Superseded to 738-0507B)

$4.49

$

In Stock, Qty 20+

0

41

MTD 938-0572

Shldr. Screw, .374 x 1.16 (50" Deck)
(Superseded to 738-0572)

$

$

Not available

42

MTD 941-0225

Hex Flange Bearing

$7.49

$

In Stock, Qty 19

0

43

MTD 741-3074

Flange Bearing, .626 x .938 x .344

$4.99

$

In Stock, Qty 20+

0

44

MTD 747-04226A

Shaft Control

$52.99

$

Usually ships in 3-6 days

0

45

MTD 747-04401A

Front Hanger Deck Lift Rod

$58.99

$

In Stock, only 1 left!

0

46

MTD 747-04637

Deck Lift Handle Rod

$51.99

$

In Stock, only 1 left!

0

47

MTD 747-05057

Lapbar Control Rod

$

$

Not available

48

MTD 948-0227A

Hex Flange Bearing, .629

$8.49

$

In Stock, Qty 12

0

49

MTD 748-04169A

Control Hub

$47.99

$

Usually ships in 3-6 days

0

50

MTD 750-04776

Spacer, .380 x .625 x .265

$5.49

$

In Stock, only 3 left!

0
