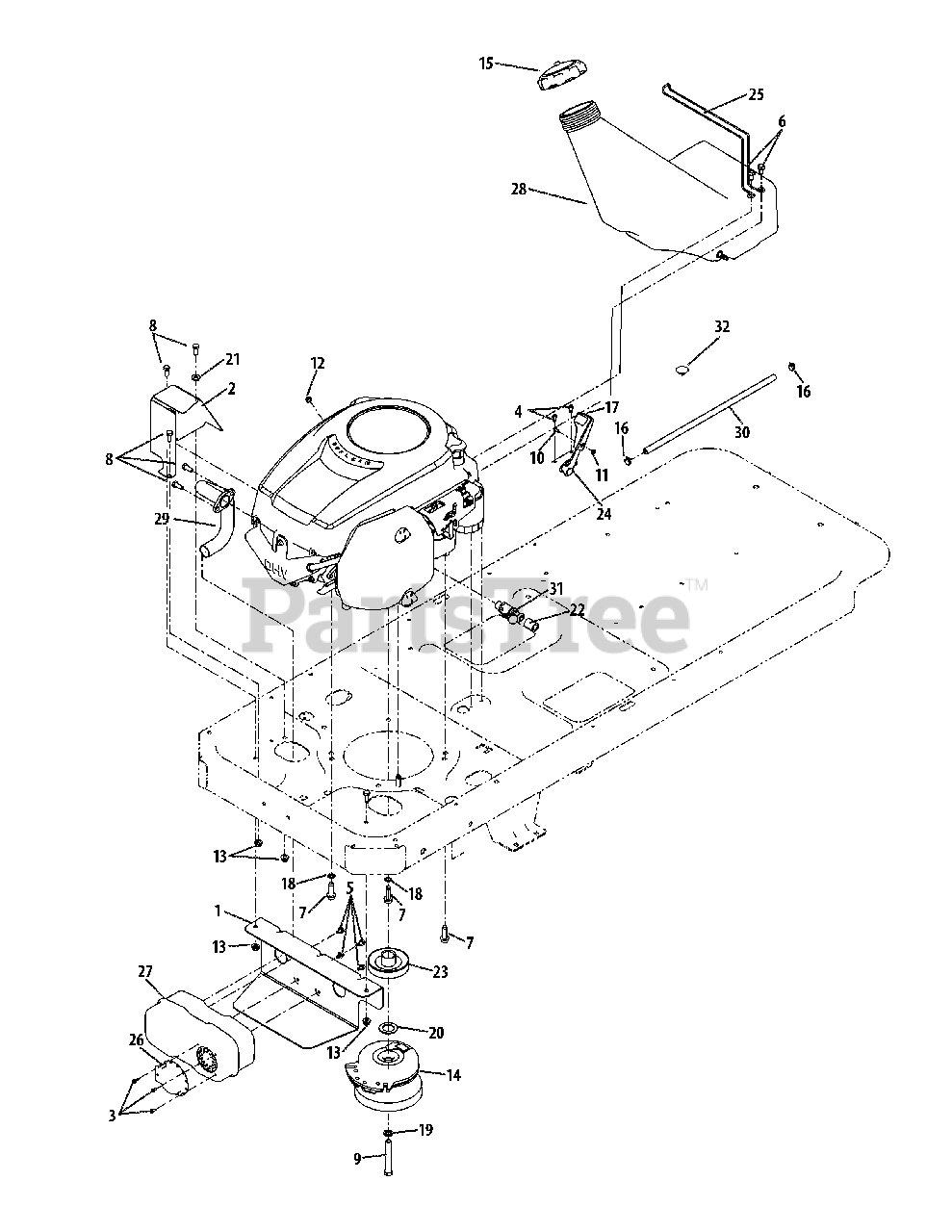

17AE2ACG004 - MTD Gold Zero-Turn Mower (2009) Engine Connection 42 Inch Parts Diagram

Gold Zero-Turn Mower

Engine Connection 42 Inch Parts Diagram

  • Title

1

MTD 703-05441A

Muffler Mounting Bracket

$52.99

$

In Stock, only 3 left!

0

2

MTD 703-05870

Muffler Tube Heat Shield

$96.99

$

Usually ships in 3-6 days

0

3

MTD 710-0227

Hex Screw, #8-18 x .5

$4.49

$

In Stock, Qty 15

0

4

MTD 710-1017

AB Screw, 1/4-14 x .625

$8.49

$

In Stock, Qty 9

0

5

MTD 710-0599

Hex Screw, 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

6

MTD 710-04484

Hex Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

7

MTD 710-1315

Hex Screw, 3/8-16 x 1.250

$4.49

$

In Stock, only 3 left!

0

8

MTD 710-3008

Hex Screw, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

9

MTD 710-3157A

Hex Screw, 7/16-20 x 3.25

$10.99

$

In Stock, only 1 left!

0

10

MTD 710-3217

Machine Screw, #8-32 x .375

$6.99

$

In Stock, Qty 7

0

11

MTD 712-0142

Hex Nut, #8-32

$4.49

$

In Stock, Qty 9

0

12

MTD 712-0271

Sems Nut, 1/4-20

$4.49

$

In Stock, Qty 10

0

13

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

14

MTD 917-04376A

Electric PTO Clutch

$525.99

$

In Stock, only 1 left!

0

15

MTD 951-3124E

Fuel Cap

$36.99

$

In Stock, only 3 left!

0

16

MTD 726-0205

Hose Clamp, .490

$3.99

$

In Stock, Qty 18

0

17

MTD 731-04914

Throttle/Choke Control Knob

$13.99

$

Usually ships in 3-6 days

0

18

MTD 736-0148

External Tooth Lock , 3/8

$3.99

$

In Stock, only 3 left!

0

19

MTD 936-0171

Lock , 7/16
(Superseded to 736-0171)

$4.49

$

In Stock, only 4 left!

0

20

MTD 736-0277

Flat Washer, 1.031 x 1.620 x .095

$4.49

$

In Stock, only 1 left!

0

21

MTD 936-3008

Flat Washer, .344 x .750 x .120

$6.99

$

Usually ships in 3-6 days

0

22

MTD 751-3141-14

Oil Drain Hose

$11.99

$

In Stock, Qty 8

0

23

MTD 756-04376

PTO Pulley

$44.99

$

In Stock, only 1 left!

0

24

MTD 746-04161

Throttle Cable, 39.0 x .62
(Superseded to 946-04161)

$49.99

$

In Stock, only 2 left!

0

25

MTD 747-04228A

Tank Mounting Wire

$

$

Not available

26

MTD 751-0564B

Muffler Deflector

$13.99

$

In Stock, Qty 5

0

27

MTD 751-0617C

Single Inlet Muffler
(Superseded to 951-0617C)

$149.99

$

In Stock, Qty 6

0

28

MTD 751-10057D

Fuel Tank

$309.99

$

Usually ships in 3-6 days

0

29

MTD 751-10251

Exhaust Pipe

$107.99

$

Usually ships in 3-6 days

0

30

MTD 751-10349-28

Fuel Hose

$41.99

$

In Stock, only 1 left!

0

31

MTD 951-10517A

Oil Drain

$24.99

$

In Stock, only 1 left!

0

32

MTD 731-1999

Choke Plug

$10.99

$

Usually ships in 3-6 days

0
