17ADCACT066 - Troy-Bilt Mustang XP 46" Zero-Turn Mower (2015) Frame & Electrical Parts Diagram

Mustang XP 46" Zero-Turn Mower

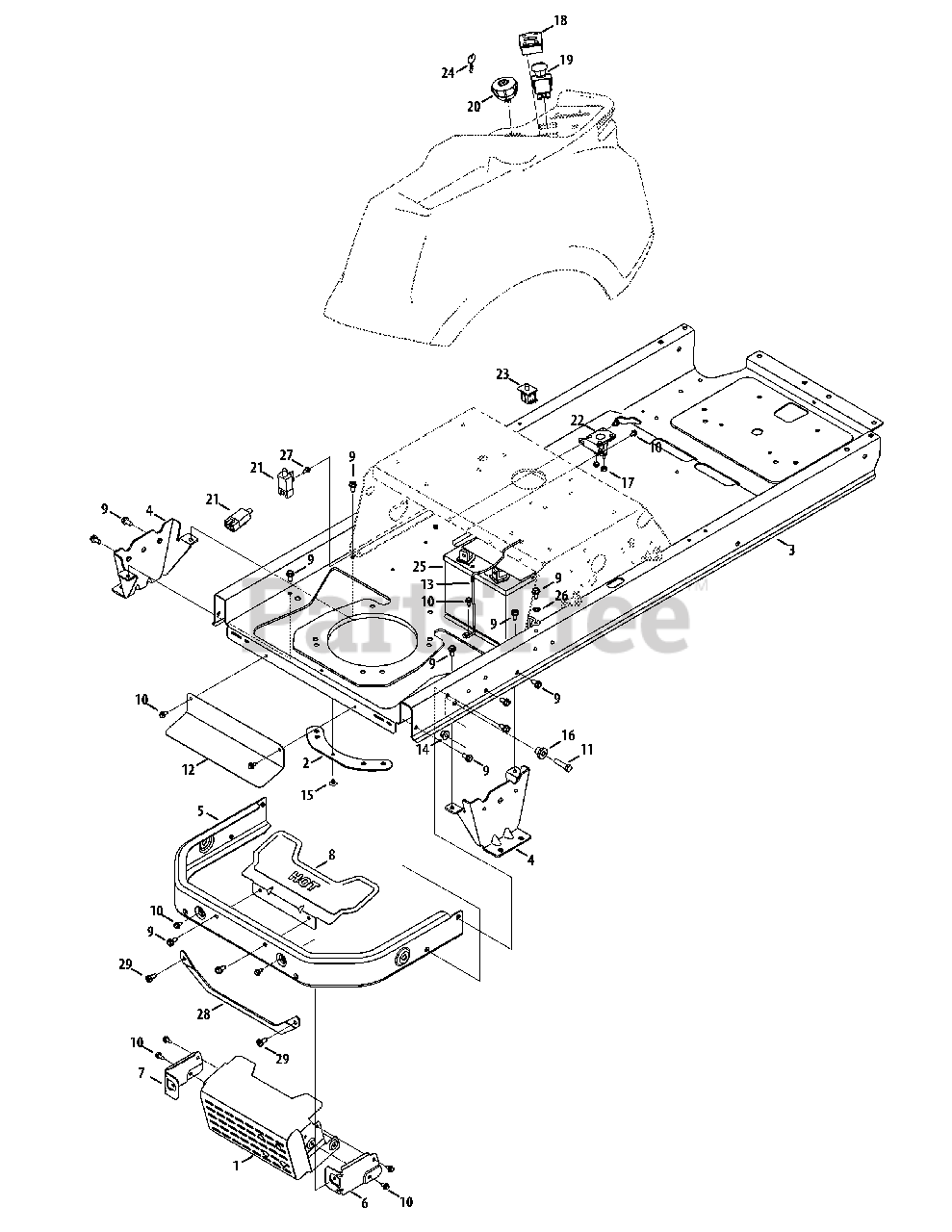

Frame & Electrical Parts Diagram

  • Title

1

Troy-Bilt 603-05156A-0637

Muffler Shield Assembly

$94.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 703-05383B-0637

Retainer Plate

$18.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 703-09578B-0638

Frame Assembly
(Superseded to 703-09578K-0638)

$626.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 703-08555-0637

Transmission Mounting Bracket

$31.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 703-08558B-0638

Rear Bumper

$51.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 703-08671A-0637

Muffler Mounting Shield Bracket, RH
(Superseded to 703-08671B-0637)

$8.49

$

Usually ships in 3-6 days

0

7

Troy-Bilt 703-08695-0637

Muffler Mounting Shield Bracket, LH
(Superseded to 703-08695A-0637)

$8.49

$

Usually ships in 3-6 days

0

8

Troy-Bilt 703-09083-0637

Muffler Shield

$31.99

$

In Stock, only 1 left!

0

9

Troy-Bilt 710-04484

Hex Washer Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 710-1652

Hex Washer Screw, 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

11

Troy-Bilt 710-3005

Hex Screw, 3/8-16 x 1.25

$3.99

$

In Stock, Qty 20+

0

12

Troy-Bilt 703-09195

Lower Heat Shield

$18.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 747-05685-0637

Battery Rod

$18.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 726-04072A

Clip, .250 Dia. x .500 LG

$3.99

$

In Stock, Qty 13

0

16

Troy-Bilt 738-04058

Shoulder Spacer, .38 x 1.0 x .70

$4.49

$

In Stock, only 1 left!

0

17

Troy-Bilt 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

18

Troy-Bilt 925-06170

Hour Meter/Service Minder
(Superseded to 925-06170B)

$70.99

$

Usually ships in 3-6 days

0

19

Troy-Bilt 925-3233

Electric PTO Switch
(Superseded to 925-3233A)

$51.99

$

In Stock, Qty 6

0

20

Troy-Bilt 925-04228

Key Switch

$39.99

$

In Stock, Qty 20+

0

21

Troy-Bilt 725-04363

Interlock Switch

$15.99

$

In Stock, Qty 10

0

22

Troy-Bilt 725-06153

Solenoid
(Superseded to 725-06153A)

$42.99

$

In Stock, Qty 13

0

23

Troy-Bilt 925-05013

Seat Switch

$31.99

$

In Stock, only 4 left!

0

24

Troy-Bilt 625-05002

Key, Assembly
(Superseded to 925-1745A)

$17.99

$

In Stock, Qty 20+

0

25

Troy-Bilt 925-1707D

Battery

$

$

Not available

26

Troy-Bilt 736-0607

Lock Washer, 5/16

$3.99

$

In Stock, Qty 20+

0

27

Troy-Bilt 738-04237A

Shoulder Screw, #10-32 x .500

$6.49

$

In Stock, Qty 7

0

28

Troy-Bilt 703-09884-0638

Rear Muffler Shield Bracket
(Superseded to 703-09884-0637)

$26.99

$

Usually ships in 3-6 days

0

29

Troy-Bilt 710-06096

Screw, Self-Tapping, 5/16-18, 0.750

$6.99

$

Usually ships in 3-6 days

0

Troy-Bilt 925-06000A

Harness Assembly
(Superseded to 925-06000B)

Note: (not shown)

$203.99

$

In Stock, only 1 left!

0
