17ADCACT066 - Troy-Bilt Mustang XP 46" Zero-Turn Mower (2015) Drive System Parts Diagram

Mustang XP 46" Zero-Turn Mower

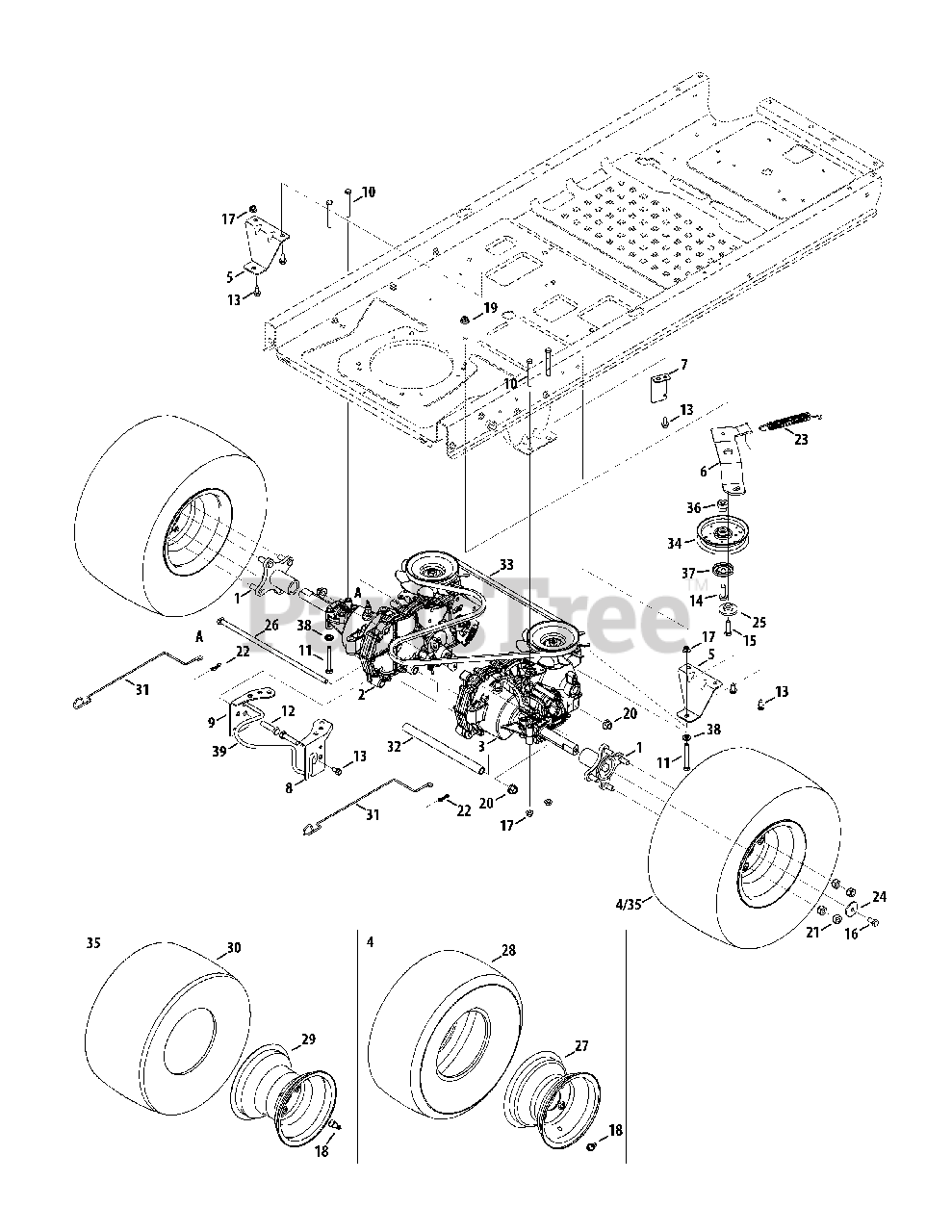

Drive System Parts Diagram

  • Title

1

Troy-Bilt 918-04317

Wheel Hub Assembly

$116.99

$

In Stock, only 1 left!

0

2

Troy-Bilt 918-05128A

Transmission Assembly, LH
(Superseded to 918-05128B)

$1467.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 918-05129A

Transmission Assembly, RH
(Superseded to 918-05129B)

$1467.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 634-04293-0911

Complete Wheel, 18 x 8.5-8 (42" & 46)
(Superseded to 634-04293-0916)

$132.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 703-08570-0637

Transmission Mounting Bracket

$12.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 703-08605

Idler Bracket
(Superseded to 603Z05256)

$42.99

$

In Stock, only 2 left!

0

7

Troy-Bilt 703-08613A-0637

Spring Mounting Bracket

$5.49

$

In Stock, Qty 6

0

8

Troy-Bilt 703-08614A-0637

Transmission Bracket

$11.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 703-08615A-0637

Transmission Bracket

$11.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 710-0176

Hex Screw, 5/16-18 x 2.75

$4.49

$

In Stock, only 2 left!

0

11

Troy-Bilt 710-0395

Hex Screw, 5/16-18 x 2.25

$4.99

$

In Stock, only 1 left!

0

12

Troy-Bilt 710-04092

Hex Screw, 7/16-20 x 1.75

$4.49

$

Usually ships in 3-6 days

0

13

Troy-Bilt 710-04484

Hex Washer Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

14

Troy-Bilt 710-1315

Hex Washer Screw, 3/8-16 x 1.250

$4.49

$

In Stock, only 2 left!

0

15

Troy-Bilt 710-0514

Hex Screw, 3/8-16 x 1.00

$4.49

$

In Stock, Qty 20+

0

16

Troy-Bilt 710-3119

Hex Screw, 3/8-16 x .75

$6.99

$

In Stock, only 1 left!

0

17

Troy-Bilt 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 5

0

18

Troy-Bilt 934-0255

Valve Tubeless

$4.49

$

In Stock, Qty 20+

0

19

Troy-Bilt 912-3020

Jam Lock Nut, 3/8-16

$6.49

$

In Stock, Qty 10

0

20

Troy-Bilt 712-0459

Flange Lock Nut, 7/16-20

$4.99

$

In Stock, Qty 20+

0

21

Troy-Bilt 712-3050

Lug Nut, 7/16-14

$9.99

$

In Stock, Qty 5

0

22

Troy-Bilt 714-04040

Bow-Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

23

Troy-Bilt 732-04229

Extension Spring, .75 Dia. x 6.02

$20.99

$

Usually ships in 3-6 days

0

24

Troy-Bilt 936-0227

Flat Washer, .390 x 1.50 x .134
(Superseded to 736-0227)

$

$

Not available

25

Troy-Bilt 738-04162C

Shoulder Spacer, .884 x .190

$13.99

$

In Stock, Qty 20+

0

26

Troy-Bilt 738-04192B

Rod, .405 Dia. x 14.0 LG

$21.99

$

Usually ships in 3-6 days

0

27

Troy-Bilt 603-04173-0662

Rim Only, (42" & 26")

$88.99

$

Usually ships in 3-6 days

0

28

Troy-Bilt 734-04246-0901

Tire Only, 18 x 8.5-8 (42" & 46")
(Superseded to 734-04246-0906)

$85.99

$

In Stock, only 2 left!

0

29

Troy-Bilt n/a

Rim Only, (50" & 54")

$

$

Currently unavailable

30

Troy-Bilt n/a

Tire Only, 18 x 9.5-8 (50" & 54")

$

$

Currently unavailable

31

Troy-Bilt 747-05657A

Bypass Rod
(Superseded to 747-05657B)

$14.99

$

Usually ships in 3-6 days

0

32

Troy-Bilt 750-04561A

Tube, .51 ID x .75 OD x 10.2

$26.99

$

In Stock, only 1 left!

0

33

Troy-Bilt 954-04317A

Belt, A-Type x 67.0

$50.99

$

In Stock, only 2 left!

0

34

Troy-Bilt 756-05042

Idler Pulley, 4.25 Dia.

$31.99

$

In Stock, Qty 20+

0

35

Troy-Bilt n/a

Complete Wheel, 18 x 9.5-8 (50" & 54")

$

$

Currently unavailable

36

Troy-Bilt 748-05029A

Shoulder Spacer

$4.99

$

In Stock, Qty 20+

0

37

Troy-Bilt 783-08389

Pulley Cap

$5.99

$

In Stock, Qty 20+

0

38

Troy-Bilt 936-0264

Flat Washer, .330 x .630 x .064

$6.99

$

In Stock, only 3 left!

0

39

Troy-Bilt n/a

Engine Keeper Rod (42")

$

$

Currently unavailable

39

Troy-Bilt 747-06070

Engine Keeper Rod (46", 50" & 54")

$8.99

$

In Stock, only 1 left!

0
