17ADCACS066 - Troy-Bilt Mustang XP 42" Zero-Turn Mower (2016) Front Axle Parts Diagram

Mustang XP 42" Zero-Turn Mower

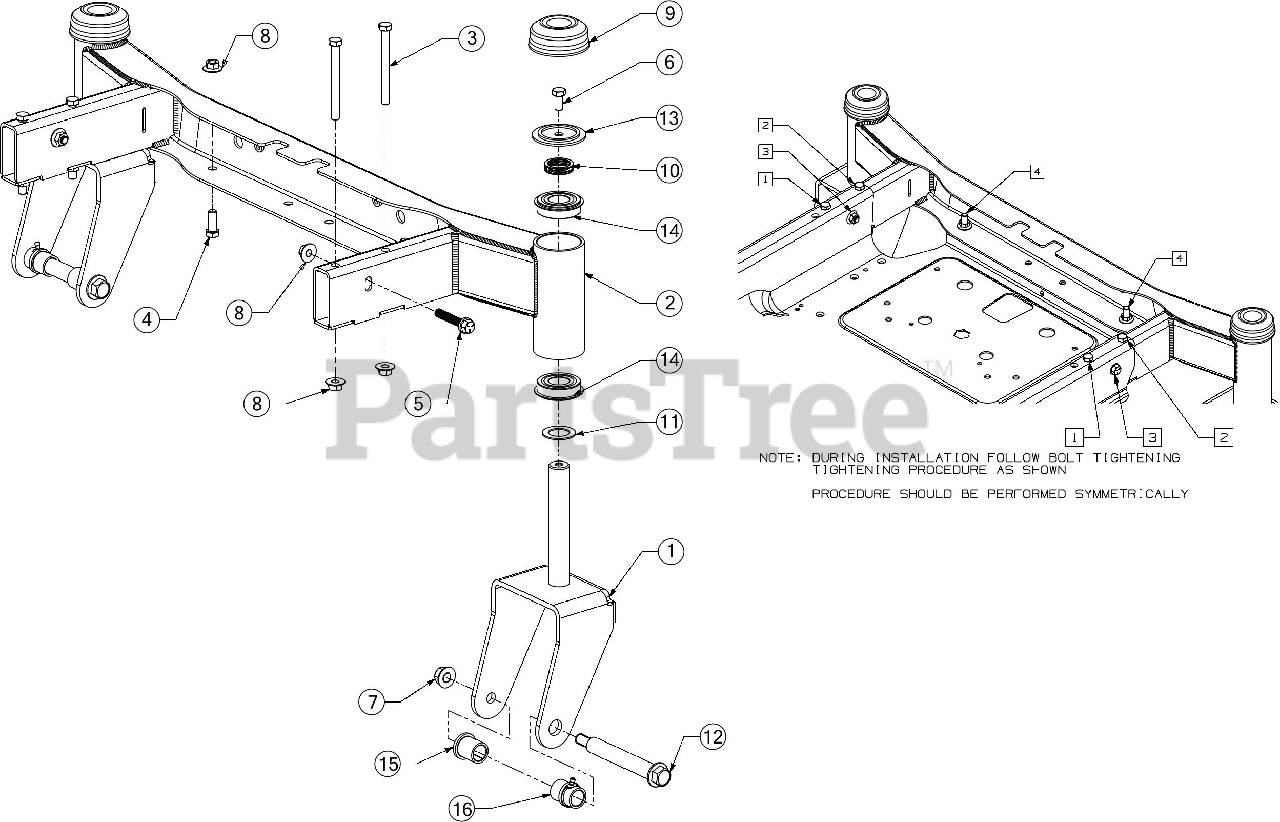

Front Axle Parts Diagram

  • Title

1

Troy-Bilt 603-05057C-0638

CASTER WHEEL YOKE
(Superseded to 603-05057D-0638)

$105.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 603-05134-0638

FRONT AXLE ASSEMBLY

$436.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 710-04576

SCREW 3/8-16 x 3.75 GR5

$4.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 710-0514

SCREW 3/8-16 x 1 GR5

$4.49

$

In Stock, Qty 20+

0

5

Troy-Bilt 710-06093

SCREW 3/8-16 x 2.00 GR5

$4.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 710-3119

SCREW 3/8-16 x .75 GR 5

$6.99

$

In Stock, only 1 left!

0

7

Troy-Bilt 712-04150

NUT

$4.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 712-04217

FLANGE LOCK NUT

$4.49

$

In Stock, Qty 17

0

9

Troy-Bilt 731-09347

CASTER AXLE CAP

$5.99

$

In Stock, Qty 5

0

10

Troy-Bilt 736-05033A

WAVE WASHER

$4.99

$

In Stock, Qty 18

0

11

Troy-Bilt 736-0745

WASHER 1.010X1.560X.060

$12.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 738-04182B

SHOULDER BOLT 1.00X4.75X1/2-13

$26.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 738-05091

SHOULDER SPACER

$8.49

$

In Stock, only 1 left!

0

14

Troy-Bilt 941-05022A

BALL BEARING

$20.99

$

In Stock, only 1 left!

0

15

Troy-Bilt 741-0516B

FLANGE BEARING

$6.49

$

In Stock, Qty 20+

0

16

Troy-Bilt 741-0990B

FLANGE BEARING W/ZERK FITTING

$10.99

$

In Stock, Qty 20+

0
