17ADCACK066 - Troy-Bilt Mustang XP 54" Zero-Turn Mower (2013) Mower Deck Parts Diagram

Mustang XP 54" Zero-Turn Mower

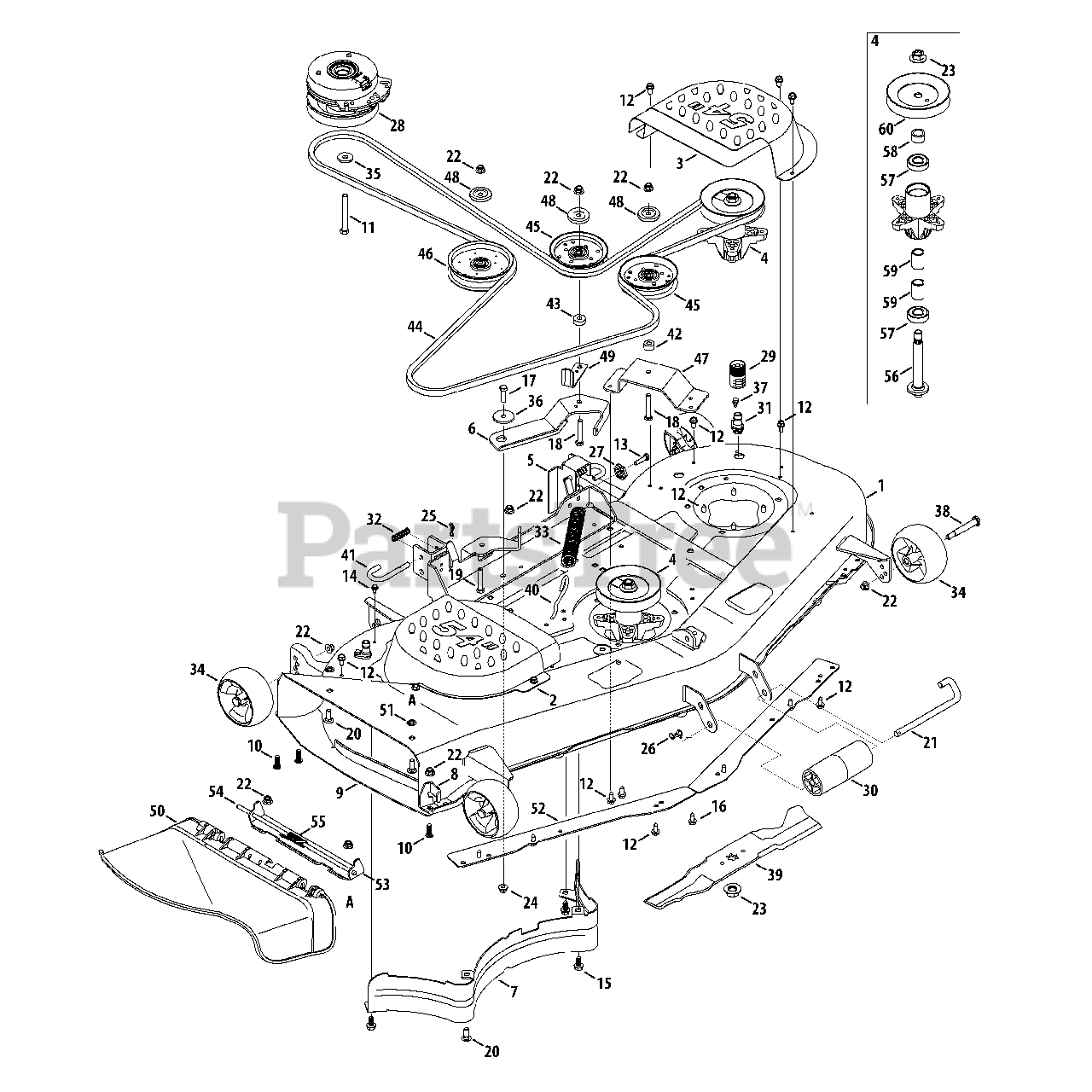

Mower Deck Parts Diagram

  • Title

1

Troy-Bilt 903-04925-4033

54" Deck Shell

$1083.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 603-05004-4033

Belt Cover, RH

$91.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 603-05005-4033

Belt Cover, LH
(Superseded to 603-05005)

$85.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 918-05137

Spindle Assembly

$141.99

$

In Stock, only 3 left!

0

5

Troy-Bilt 683-05031-4033

Deck Lift Bracket

$

$

Not available

6

Troy-Bilt 703-05825C-4033

Idler Arm
(Superseded to 703-05825C-0637)

$54.99

$

In Stock, only 3 left!

0

7

Troy-Bilt 703-2093C-0637

Inner Baffle

$96.99

$

In Stock, only 2 left!

0

8

Troy-Bilt 703-3279-4033

Stop Bracket
(Superseded to 703-3279)

$40.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 703-3511B-0637

Finger Guard

$69.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 710-04095

Hex Cap Screw, 3/8-16, 1.00

$5.49

$

In Stock, Qty 20+

0

11

Troy-Bilt 710-04379A

Hex Cap Screw, 7/16-20 x 3.50

$6.49

$

In Stock, only 2 left!

0

12

Troy-Bilt 710-04484

Hex Washer Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 710-0573

Hex Cap Screw, 5/16-18 x 1.25

$6.49

$

In Stock, Qty 13

0

14

Troy-Bilt 710-0599

Hex Washer Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

15

Troy-Bilt 710-0623

Hex Washer Screw, 3/8-16 x .75

$4.49

$

In Stock, only 2 left!

0

16

Troy-Bilt 710-0650

Self Tapping Screw, 5/16-18 x .875

$3.99

$

In Stock, Qty 20+

0

17

Troy-Bilt 710-3005

Hex Cap Screw, 3/8-16 x 1.25

$3.99

$

In Stock, Qty 10

0

18

Troy-Bilt 710-3011

Hex Cap Screw, 3/8-16, 2.25

$6.99

$

In Stock, Qty 20+

0

19

Troy-Bilt 710-3144

Hex Cap Screw, 3/8-16 x 2.00

$4.49

$

In Stock, Qty 20+

0

20

Troy-Bilt 710-3168

Carriage Screw, 3/8-16 x 1.00

$3.99

$

In Stock, Qty 20+

0

21

Troy-Bilt 911-3314

Roller Pin, 1/2" x 7.31 Lg
(Superseded to 711-3314A)

$25.99

$

In Stock, Qty 11

0

22

Troy-Bilt 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

23

Troy-Bilt 712-0417A

Hex Flange Nut, 5/8-18

$6.99

$

In Stock, Qty 20+

0

24

Troy-Bilt 712-04217

Flange Lock Nut, 3/8-16

$4.49

$

In Stock, Qty 17

0

25

Troy-Bilt 714-04040

Bow-Tie Cotter Pin, 72

$1.49

$

In Stock, Qty 20+

0

26

Troy-Bilt 714-04043

Bow-Tie Cotter Pin

$4.99

$

In Stock, Qty 18

0

27

Troy-Bilt 917-04074

Deck Adjustment Gear

$13.99

$

In Stock, Qty 16

0

28

Troy-Bilt 917-05123

Electric PTO Clutch
(Superseded to 917-05123A)

$636.99

$

Usually ships in 3-6 days

0

29

Troy-Bilt 921-04041

Water Nozzle Adapter

$23.99

$

In Stock, Qty 20+

0

30

Troy-Bilt 731-05679

Front Roller
(Superseded to 731-05679B)

$18.99

$

In Stock, Qty 20+

0

31

Troy-Bilt 731-07487

Deck Wash Nozzle

$4.49

$

In Stock, only 1 left!

0

32

Troy-Bilt 732-04652

Compression Spring, .535 x 1.751

$6.99

$

Usually ships in 3-6 days

0

33

Troy-Bilt 732-04927

Extension Spring, 1.25 OD x 1.751

$22.99

$

In Stock, Qty 20+

0

34

Troy-Bilt 734-04155

Deck Ball Wheel, 5.0

$20.99

$

In Stock, Qty 20+

0

35

Troy-Bilt 736-0322

Flat Washer, .450 x 1.25 x .164

$9.49

$

In Stock, Qty 8

0

36

Troy-Bilt 738-04162C

Shoulder Spacer, .884 x .190

$13.99

$

In Stock, Qty 20+

0

37

Troy-Bilt 738-04278

Shoulder Screw, .500 x 1/4-20

$6.99

$

In Stock, Qty 5

0

38

Troy-Bilt 938-3056

Shoulder Screw, .5 x 2.5 x 3/8-16

$9.49

$

In Stock, Qty 20+

0

39

Troy-Bilt 942-0677B

Blade, 18.5

$30.99

$

In Stock, Qty 20+

0

40

Troy-Bilt 747-05608

Deck Spring Rod
(Superseded to 747-05608A)

$3.49

$

In Stock, Qty 20+

0

41

Troy-Bilt 747-06082

Deck Hanger Rod

$10.99

$

In Stock, Qty 7

0

42

Troy-Bilt 750-05635

Spacer, .385 ID x .875 OD x .458

$4.49

$

Usually ships in 3-6 days

0

43

Troy-Bilt 750-3119

Spacer, .406 ID x 1.00 OD x .380

$11.99

$

In Stock, only 4 left!

0

44

Troy-Bilt 954-04329

V-Belt
(Superseded to 954-04329A)

$100.99

$

In Stock, only 4 left!

0

45

Troy-Bilt 756-04129B

Idler Pulley, 4.25 Dia
(Superseded to 753-08171)

$35.99

$

In Stock, Qty 20+

0

46

Troy-Bilt 756-04511A

Idler Pulley, 5.00 Dia.
(Superseded to 756-04511B)

$53.99

$

In Stock, Qty 20+

0

47

Troy-Bilt 783-04726-0637

Bracket, Idler, Stationary

$36.99

$

Usually ships in 3-6 days

0

48

Troy-Bilt 783-07236

Pulley Cap

$5.49

$

In Stock, only 4 left!

0

49

Troy-Bilt 783-08027-0637

Belt Guard Bracket

$22.99

$

In Stock, only 1 left!

0

50

Troy-Bilt 631-05058

Discharge Chute Assembly

$63.99

$

In Stock, only 2 left!

0

51

Troy-Bilt 712-0229

Push Nut, 3/8

$3.99

$

In Stock, Qty 20+

0

52

Troy-Bilt 783-04690B-0637

Deck Skirt

$42.99

$

In Stock, only 3 left!

0

53

Troy-Bilt 703-09219

Chute Bracket

$26.99

$

Usually ships in 3-6 days

0

54

Troy-Bilt 711-04565

Hinge Pin

$15.99

$

In Stock, only 3 left!

0

55

Troy-Bilt 732-04372

Torsion Spring

$10.99

$

In Stock, Qty 9

0

56

Troy-Bilt 738-1186A

Spindle Shaft, 6.11 Long

$49.99

$

In Stock, Qty 14

0

57

Troy-Bilt 941-0919A

Ball Bearing
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

58

Troy-Bilt 748-04302

Spacer, .82 x 1.15 x .69

$2.49

$

In Stock, only 2 left!

0

59

Troy-Bilt 750-06055

Spacer, .792 x 1.06 x 1.52

$3.99

$

In Stock, only 2 left!

0

60

Troy-Bilt 756-04216

V-Type Pulley, 5.39

$33.99

$

In Stock, only 1 left!

0
