17AA5ABP766 - Troy-Bilt RZT 50" Zero-Turn Mower (2006) Drive RZT50 Parts Diagram

RZT 50" Zero-Turn Mower

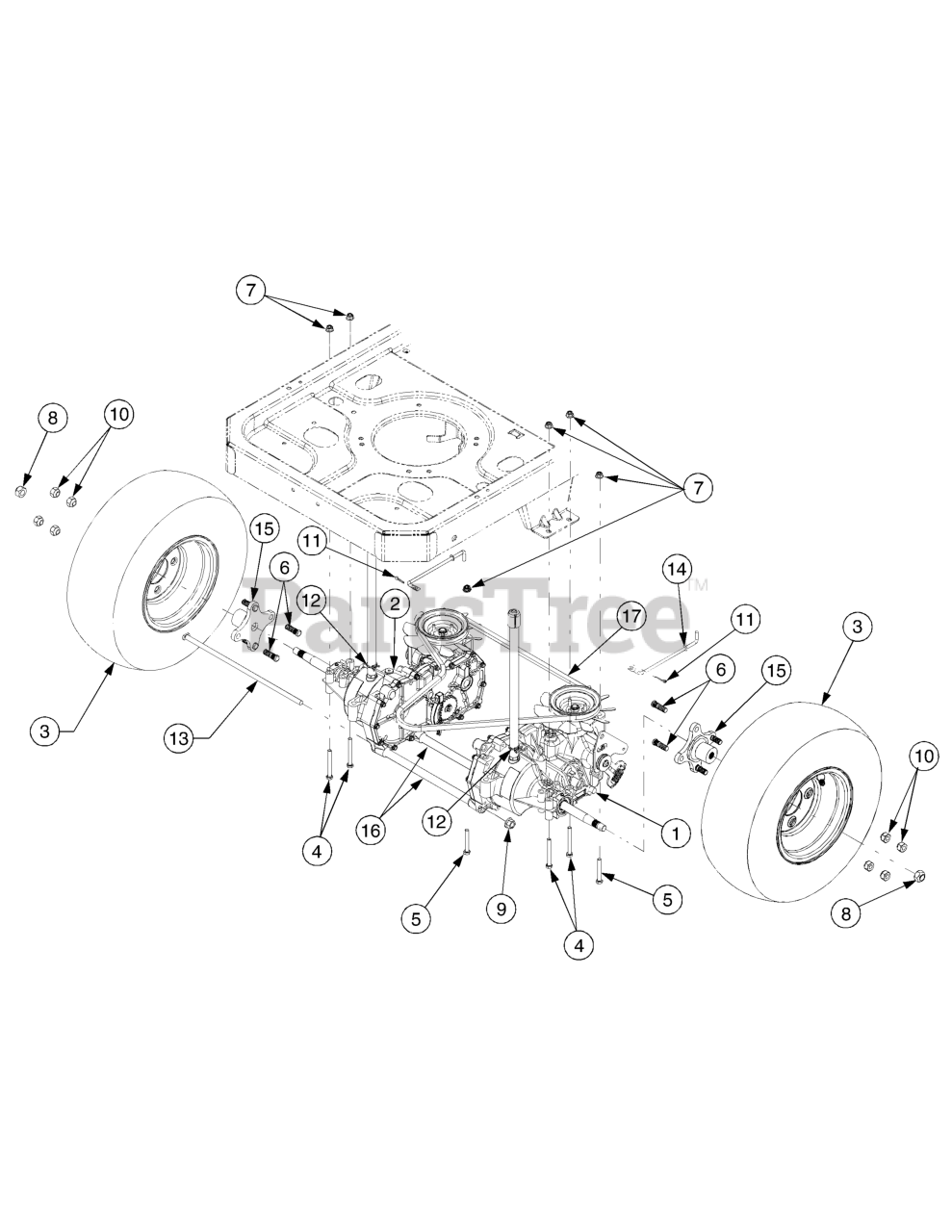

Drive RZT50 Parts Diagram

  • Title

1

Troy-Bilt 759-04145

Transmission Assembly, RH, Service Kit

Note: replaces 618-04326 NLA

$

$

Not available

Troy-Bilt 732-04448

Neutral Return Spring

Note: Included in service kit, not shown, must have the same color neutral return spring on RH & LH transmission

$10.99

$

In Stock, Qty 19

0

Troy-Bilt 618-04432A

Transmission, RH
(Superseded to 918-04432B)

Note: Double D axle

$1805.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 759-04144

Transmission Assembly, LH, Service Kit

Note: replaces 618-04327 NLA

$1738.99

$

Usually ships in 3-6 days

0

Troy-Bilt 732-04448

Neutral Return Spring

Note: Included in service kit, not shown, must have the same color neutral return spring on RH & LH transmission

$10.99

$

In Stock, Qty 19

0

Troy-Bilt 618-04431A

Transmission, LH
(Superseded to 918-04431B)

Note: Double D axle

$1719.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 634-04171

Wheel Assembly, 18 x 9.5 x 8, RZT50
(Superseded to 634-04128-0911)

$

$

Not available

3

Troy-Bilt 734-1729

Tire, 18 x 9.5 x 8, RZT50

Note: not shown

Variations

Troy-Bilt 734-1729-0906

Turf Saver Tire, 18 X 9.5 X 8 - Kenda (0906)

$

$

Not available

Troy-Bilt 734-1729-0901

Turf Saver Tire, 18 X 9.5-8 Sq - Carlisle (0901)

$

$

Not available

$169.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 734-0255

Valve Assembly
(Superseded to 934-0255)

Note: not shown

$4.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 710-0176

Screw, Hex Cap, 5/16-18 x 2.75 GR5

$4.49

$

In Stock, only 2 left!

0

5

Troy-Bilt 710-0395

Screw, Hex Cap, 5/16-18 x 2.25 GR5

$4.99

$

In Stock, only 1 left!

0

6

Troy-Bilt 710-0852

Stud, Rib Neck, 7/16-14 x 1.6

$6.49

$

In Stock, only 2 left!

0

7

Troy-Bilt 712-04063

Nut, Hx Insert Flange Lck, 5/16-18

$3.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 712-04088

Nut, Hex Lock, 9/16-18 GRC

$6.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 712-0459

Nut, Hex Flange Lock, 7/16-20 GrB

$4.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 712-3050

Nut, Lug, 7/16-14

$9.99

$

In Stock, only 2 left!

0

11

Troy-Bilt 714-0507

Pin, Cotter, 3/32 x .75

$4.49

$

In Stock, Qty 12

0

12

Troy-Bilt 726-04059

Clamp, Hose

$

$

Not available

13

Troy-Bilt 738-04192

Rod, .405 x 14.0
(Superseded to 738-04192B)

$21.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 747-04217B

Rod, Bypass
(Superseded to 747-04217C-0637)

Variations

Troy-Bilt 747-04217B-0637

Bypass Rod - POWDER BLACK (0637)

$21.99

$

Usually ships in 3-6 days

0

$21.99

$

Usually ships in 3-6 days

0

15

Troy-Bilt 748-04055

Hub, Wheel RZT50, Spline
(Superseded to 748-04055-0637)

Variations

Troy-Bilt 748-04055-0637

Rear Wheel Hub, Powder Black - POWDER BLACK (0637)

$78.99

$

In Stock, only 3 left!

0

$78.99

$

In Stock, only 3 left!

0

15

Troy-Bilt 618-04317

Hub, Wheel RZT50, Double D
(Superseded to 918-04317)

Note: Included in service kit, not shown

$116.99

$

In Stock, only 1 left!

0

16

Troy-Bilt 750-04561

Tube, .45 x .69 x 10.2
(Superseded to 750-04561A)

$26.99

$

In Stock, only 1 left!

0

17

Troy-Bilt 754-04043

V-Belt, Type A Sec x 57.7
(Superseded to 954-04043B)

$42.99

$

In Stock, Qty 20+

0

Troy-Bilt 710-3119

SCREW:3/8"-16 x .750:GR5:LOCK

Note: Included in service kit, not shown

$6.99

$

In Stock, only 1 left!

0

Troy-Bilt 726-04059

CLAMP:HOSE: .750

Note: Included in service kit, not shown

$

$

Not available

Troy-Bilt 736-0227

WASHER:FLAT: .390 x 1.50 x .134

Note: Included in service kit, not shown

$6.49

$

In Stock, Qty 9

0

Troy-Bilt 751-10474

HOSE:BREATHER

Note: Included in service kit, not shown

$38.99

$

Usually ships in 3-6 days

0

Troy-Bilt 737-3120

Drive System Fluid
(Superseded to 490-000-C051)

Note: not shown

$21.99

$

In Stock, Qty 20+

0
