17AA5AAG766 - Troy-Bilt RZT 42" Zero-Turn Mower (2006) Engine Accessories and PTO RZT 42 Parts Diagram

RZT 42" Zero-Turn Mower

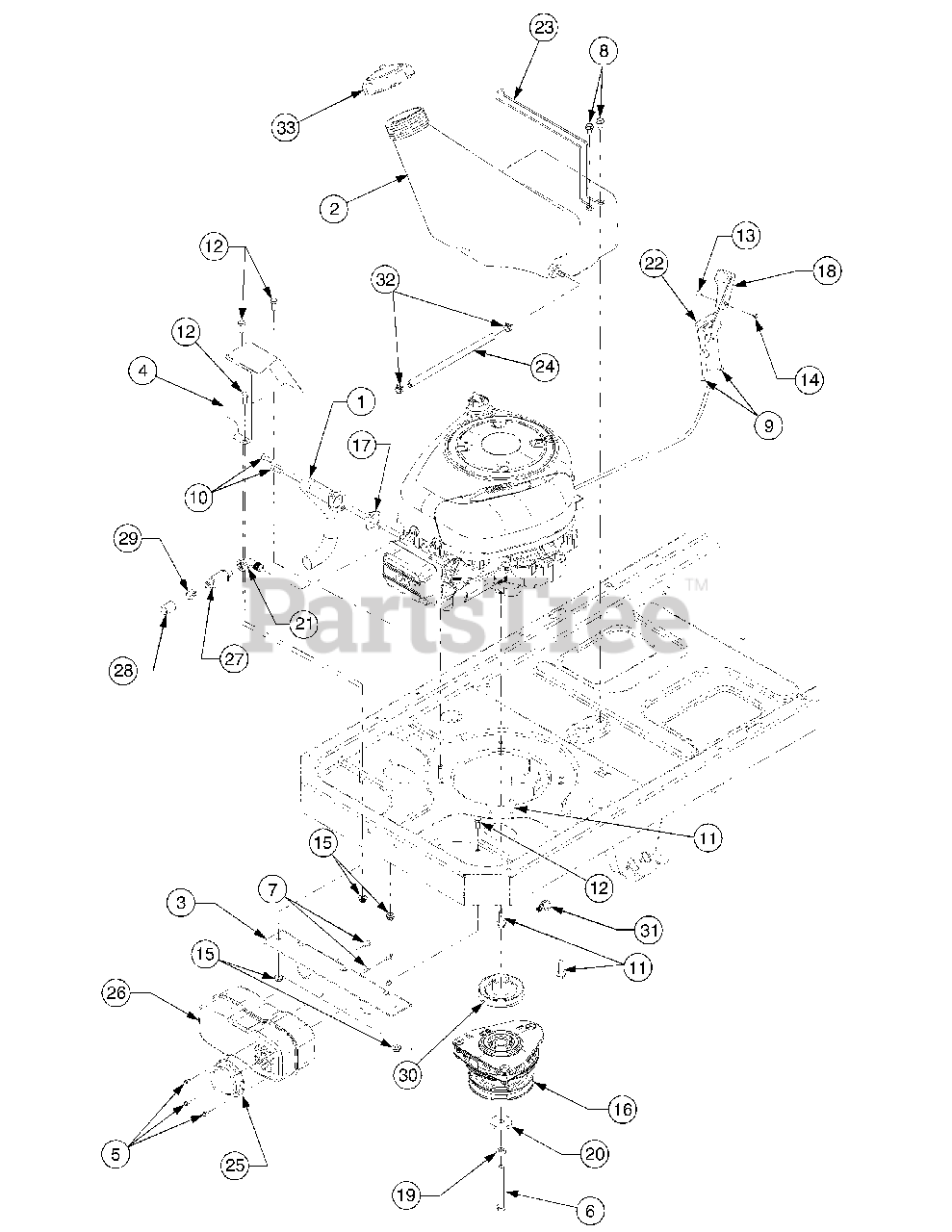

Engine Accessories and PTO RZT 42 Parts Diagram

  • Title

1

Troy-Bilt 603-04176

Tube, Exhaust
(Superseded to 603-04176A)

$103.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 751-10057C

Tank, Fuel, 3.0 Gal.
(Superseded to 751-10057D)

$309.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 703-05441A

Bracket, Muffler Mounting

$52.99

$

In Stock, only 3 left!

0

4

Troy-Bilt 703-05870

Shield, Muffler Tube Heat

$96.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 710-0227

Screw, Hex Wash. Hd. Tapp #8-18 x .5

$4.49

$

In Stock, Qty 15

0

6

Troy-Bilt 710-04248

Screw, Hex Cap, 7/16-20 x 4.0 GR5

$10.99

$

In Stock, only 1 left!

0

7

Troy-Bilt 710-0599

Screw, Hex Wash. Hd. Tapp 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 710-0726

Screw, Hex Wash. Hd. Tapp 5/16-12 x .75

$4.49

$

In Stock, Qty 20+

0

9

Troy-Bilt 710-04261

Screw, Hex Wash. Hd. Tapp #12-16 x .5

$6.49

$

In Stock, only 3 left!

0

10

Troy-Bilt 710-1314A

Screw, Socket Hd. 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

11

Troy-Bilt 710-1315

Screw, Hex Wash. Hd. Tapp 3/8-16 x 1.25

$4.49

$

In Stock, only 3 left!

0

12

Troy-Bilt 710-3008

Screw, Hex Cap, 5/16-18 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

13

Troy-Bilt 710-3217

Screw, Truss Hd. Mach. #8-32 x .375

$6.99

$

In Stock, Qty 7

0

14

Troy-Bilt 712-0142

Nut, Hex, #8-32

$4.49

$

In Stock, Qty 9

0

15

Troy-Bilt 712-04063

Nut, Hx Insert Flange Lck, 5/16-18 GrF

$3.99

$

In Stock, Qty 20+

0

16

Troy-Bilt 717-04183

Clutch Assembly, Electric PTO
(Superseded to 917-04622)

$600.99

$

In Stock, only 1 left!

0

17

Troy-Bilt 721-0208

Gasket, Exhaust (B&S- 272293)
(Superseded to BS-692236)

$5.49

$

In Stock, Qty 20+

0

18

Troy-Bilt 731-04914

Knob, Throttle Control

$13.99

$

Usually ships in 3-6 days

0

19

Troy-Bilt 736-0171

Washer, Lock, 7/16

$4.49

$

In Stock, only 4 left!

0

20

Troy-Bilt 736-04131

Washer, Flat, .438 x 1.75 x .25

$15.99

$

In Stock, only 1 left!

0

21

Troy-Bilt 737-0125

Fitting, Elbow

$

$

Not available

22

Troy-Bilt 746-04161

Cable, Throttle, 39.0 Lg
(Superseded to 946-04161)

$49.99

$

In Stock, only 2 left!

0

23

Troy-Bilt 747-04228A

Wire, Tank Mounting

$

$

Not available

24

Troy-Bilt 751-10349

Hose, Fuel Line 6.5 in

$9.49

$

Usually ships in 3-6 days

0

25

Troy-Bilt 751-0564B

Deflector, Muffler

$13.99

$

In Stock, Qty 5

0

26

Troy-Bilt 751-0617B

Muffler
(Superseded to 951-0617C)

$149.99

$

In Stock, Qty 6

0

27

Troy-Bilt 751-3140

Valve, Oil Drain
(Superseded to 951-10517A)

$24.99

$

In Stock, only 1 left!

0

28

Troy-Bilt 751-3141

Hose, Oil Drain Extension
(Superseded to 751-3141-14)

$11.99

$

In Stock, Qty 8

0

29

Troy-Bilt 751-3142

Cap, Oil Drain Valve

$4.49

$

In Stock, only 4 left!

0

30

Troy-Bilt 756-0978A

Pulley, Drive
(Superseded to 756-0978B)

$66.99

$

In Stock, Qty 15

0

31

Troy-Bilt 726-3055

Clip, Cable Retainer

$6.99

$

Usually ships in 3-6 days

0

32

Troy-Bilt 726-0205

Clamp, Hose

$3.99

$

In Stock, Qty 18

0

33

Troy-Bilt 751-3124B

Cap, Fuel
(Superseded to 951-3124E)

$36.99

$

In Stock, only 3 left!

0
