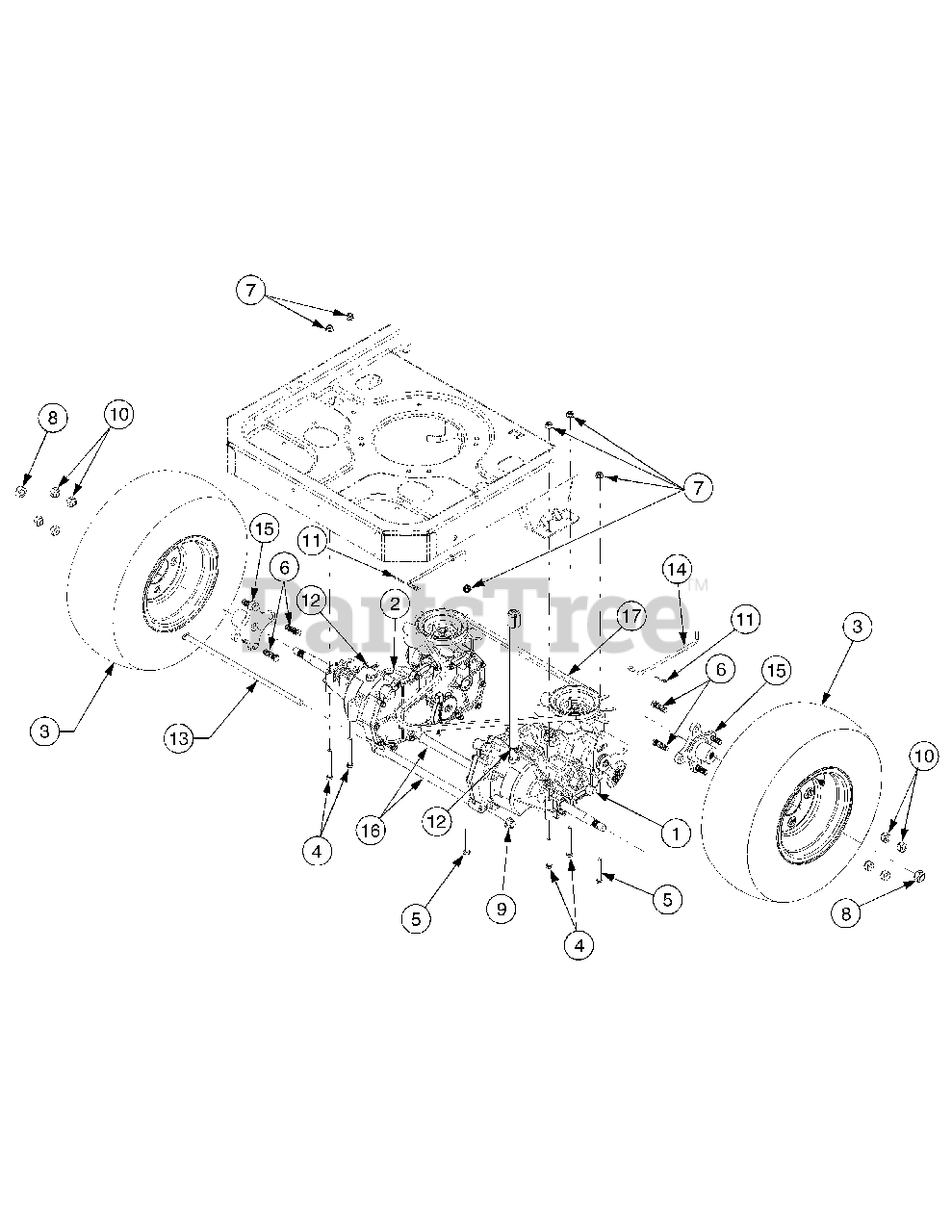

17AA5AAG766 - Troy-Bilt RZT 42" Zero-Turn Mower (2006) Drive RZT42 Parts Diagram

RZT 42" Zero-Turn Mower

Drive RZT42 Parts Diagram

  • Title

1

Troy-Bilt 759-04143

Transmission Assembly, RH, Service Kit

Note: replaces 618-04326 NLA

$1457.99

$

Usually ships in 3-6 days

0

Troy-Bilt 732-04448

Neutral Return Spring

Note: Included in service kit, not shown, must have the same color neutral return spring on RH & LH transmission

$10.99

$

In Stock, Qty 19

0

Troy-Bilt 618-04432A

Transmission, RH
(Superseded to 918-04432B)

Note: Double D axle

$1805.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 759-04142

Transmission Assembly, LH, Service Kit

Note: replaces 618-04327 NLA

$

$

Not available

Troy-Bilt 732-04448

Neutral Return Spring

Note: Included in service kit, not shown, must have the same color neutral return spring on RH & LH transmission

$10.99

$

In Stock, Qty 19

0

Troy-Bilt 618-04431A

Transmission, LH
(Superseded to 918-04431B)

Note: Double D axle

$1719.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 634-04127

Wheel Assembly, 18 x 6.5 x 8, RZT42

Variations

Troy-Bilt 634-04127-0662

WHEEL ASM COMPLETE - OYSTER GRAY (0662)

$233.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-04127-0911

WHEEL ASM COMPLETE - Carlisle Gray (0911)

$233.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-04127-0499

Wheel Assembly, Complete - CUB BEIGE (0499)

$

$

Not available

Troy-Bilt 634-04127-0931

Wheel Assembly, Complete - Carlisle Beige (0931)

$

$

Not available

$189.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 734-0294

Tire, 18 x 6.5 x 8, RZT42

Note: not shown

Variations

Troy-Bilt 734-0294-0901

Tubeless Tire, 18 X 6.5 X 8" - Carlisle (0901)

$85.99

$

In Stock, Qty 5

0

Troy-Bilt 734-0294-0902

Tubeless Tire, 18 X 6.5 X 8" - Dico (0902)

$85.99

$

In Stock, Qty 5

0

Troy-Bilt 734-0294-0905

Tubeless Tire, 18 X 6.5 X 8" - Duro (0905)

$85.99

$

In Stock, Qty 5

0

$

$

3

Troy-Bilt 734-0255

Valve Assembly
(Superseded to 934-0255)

Note: not shown

$4.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 710-0176

Screw, Hex Cap, 5/16-18 x 2.75 GR5

$4.49

$

In Stock, only 2 left!

0

5

Troy-Bilt 710-0395

Screw, Hex Cap, 5/16-18 x 2.25 GR5

$4.99

$

In Stock, only 1 left!

0

6

Troy-Bilt 710-0852

Stud, Rib Neck, 7/16-14 x 1.6

$6.49

$

In Stock, only 2 left!

0

7

Troy-Bilt 712-04063

Nut, Hx Insert Flange Lck, 5/16-18

$3.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 712-04088

Nut, Hex Lock, 9/16-18 GRC

$6.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 712-0459

Nut, Hex Flange Lock, 7/16-20 GrB

$4.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 712-3050

Nut, Lug, 7/16-14

$9.99

$

In Stock, only 2 left!

0

11

Troy-Bilt 714-0507

Pin, Cotter, 3/32 x .75

$4.49

$

In Stock, Qty 12

0

12

Troy-Bilt 726-04059

Clamp, Hose

$

$

Not available

13

Troy-Bilt 738-04192

Rod, .405 x 14.0
(Superseded to 738-04192B)

$21.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 747-04217B

Rod, Bypass
(Superseded to 747-04217C-0637)

Variations

Troy-Bilt 747-04217B-0637

Bypass Rod - POWDER BLACK (0637)

$21.99

$

Usually ships in 3-6 days

0

$21.99

$

Usually ships in 3-6 days

0

15

Troy-Bilt 748-04054

Hub, Wheel RZT42, Spline
(Superseded to 748-04054-0637)

Variations

Troy-Bilt 748-04054-0637

HUB-REAR WHL BLK - POWDER BLACK (0637)

$82.99

$

Usually ships in 3-6 days

0

$82.99

$

Usually ships in 3-6 days

0

15

Troy-Bilt 618-04494

Hub, Wheel 42 Double D
(Superseded to 918-04494)

Note: Included in service kit, not shown

$

$

Not available

16

Troy-Bilt 750-04561

Tube, .45 x .69 x 10.2
(Superseded to 750-04561A)

$26.99

$

In Stock, only 1 left!

0

17

Troy-Bilt 754-04043

V-Belt, Type A Sec x 57.7
(Superseded to 954-04043B)

$42.99

$

In Stock, Qty 20+

0

Troy-Bilt 710-3119

SCREW:3/8"-16 x .750:GR5:LOCK

Note: Included in service kit, not shown

$6.99

$

In Stock, only 1 left!

0

Troy-Bilt 726-04059

CLAMP:HOSE: .750

Note: Included in service kit, not shown

$

$

Not available

Troy-Bilt 736-0227

WASHER:FLAT: .390 x 1.50 x .134

Note: Included in service kit, not shown

$6.49

$

In Stock, Qty 9

0

Troy-Bilt 751-10474

HOSE:BREATHER

Note: Included in service kit, not shown

$38.99

$

Usually ships in 3-6 days

0

Troy-Bilt 737-3120

Drive System Fluid
(Superseded to 490-000-C051)

Note: not shown

$21.99

$

In Stock, Qty 20+

0
