1782 (146-714-100) - Cub Cadet Super Garden Tractor (SN: 821060 - 889000) Hydraulic Lift/Controls Parts Diagram

Super Garden Tractor

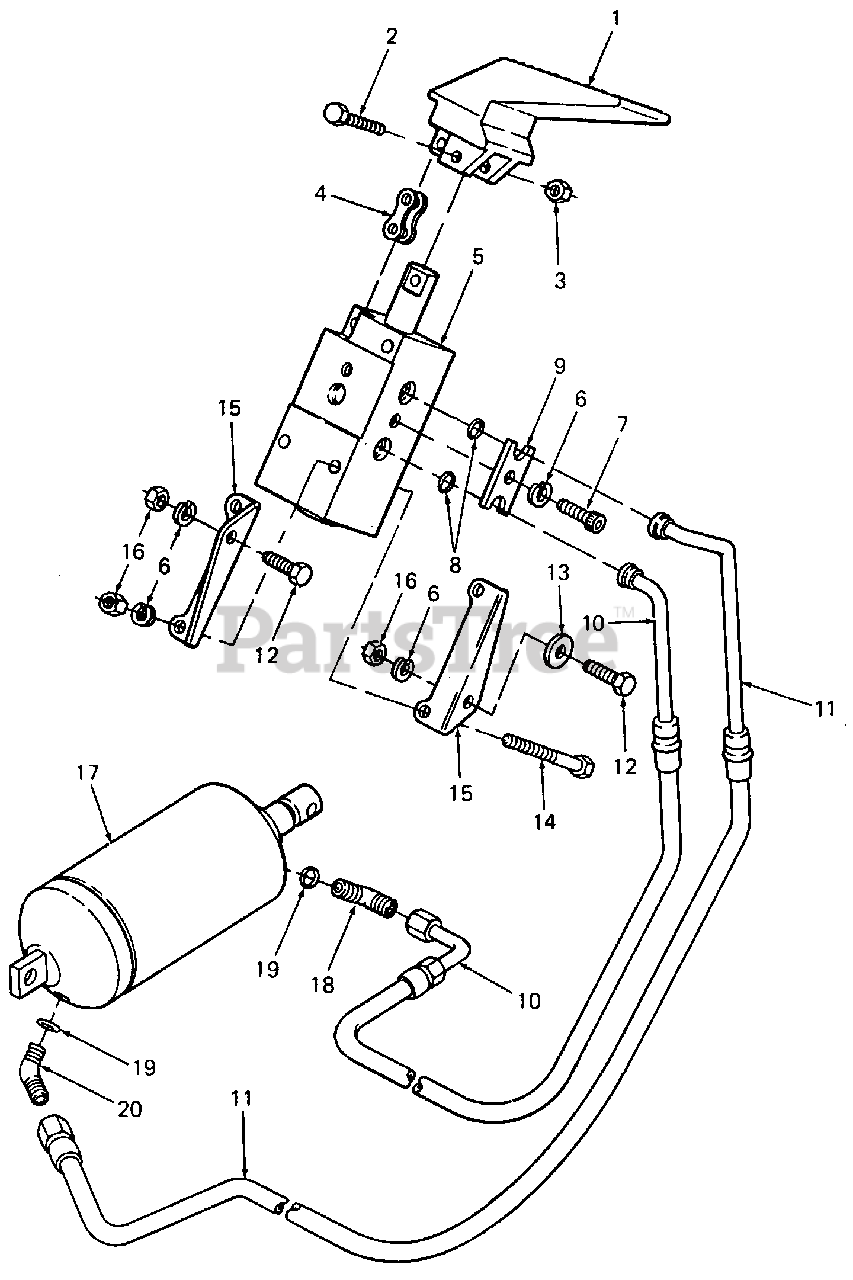

Hydraulic Lift/Controls Parts Diagram

  • Title
1

Cub Cadet 731-3100A

Handle, Valve
(Superseded to 931-3100A)

$

$

Not available

Cub Cadet 779-3534

Label, Lift Handle
(Superseded to 779-3534A)

$

$

Not available

2

Cub Cadet 710-0749

Screw, Hex Cap, #10-24 X 1.0 Lg
(Superseded to 910-0749)

$3.49

$

Usually ships in 3-6 days

0

3

Cub Cadet 712-0998

Nut, Hex Center Lock, #10-24

$3.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 713-3000

Link, Chain
(Superseded to 913-3000)

$

$

Not available

5

Cub Cadet 717-3308A

Valve, Lift

Note: (For component parts see breakdown under hydraulic lift valve)

$

$

Not available

6

Cub Cadet 736-0329

Washer, Lock, 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

7

Cub Cadet 710-3218

Screw, Socket Hd Cap, 1/4-20 X .62 Lg GR8

$4.49

$

Usually ships in 3-6 days

0

8

Cub Cadet 721-3021

O-Ring, .301 X .070 Dia
(Superseded to 921-3021)

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 703-1803

Clamp, Double
(Superseded to 903-1803)

$

$

Not available

10

Cub Cadet 727-3046

Hose, Cylinder-Contracting

$

$

Not available

Cub Cadet 725-0157

Strap, Tie

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 727-3045

Hose, Cylinder-Extending

$

$

Not available

12

Cub Cadet 710-0751

Screw, Hex Cap, 1/4-20 X .62 Lg GR5

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 736-0270

Washer, Bell, .265 X .75 X .062 Thk

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 710-0641

Screw, Hex Cap, 1/4-20 X 2.25 Lg

$4.49

$

In Stock, only 2 left!

0

15

Cub Cadet 703-1801

Bracket, Valve Mtg

$

$

Not available

16

Cub Cadet 712-3006

Nut, Hex, 1/4-20 GR5

$4.99

$

In Stock, Qty 17

0

17

Cub Cadet 717-3005

Cylinder, Hydraulic

Note: (For component parts see breakdown under hydraulic cylinder)

$

$

Not available

18

Cub Cadet 727-3006

Elbow, 90 Deg w/O-Ring

$

$

Not available

19

Cub Cadet 721-3002

O-Ring, 1/4 OD Tube

$

$

Not available

20

Cub Cadet 727-3007

Elbow, 45 Deg w/O-Ring

$

$

Not available
