1782 (146-714-100) - Cub Cadet Super Garden Tractor (SN: 821060 - 889000) Fuel Tank Parts Diagram

Super Garden Tractor

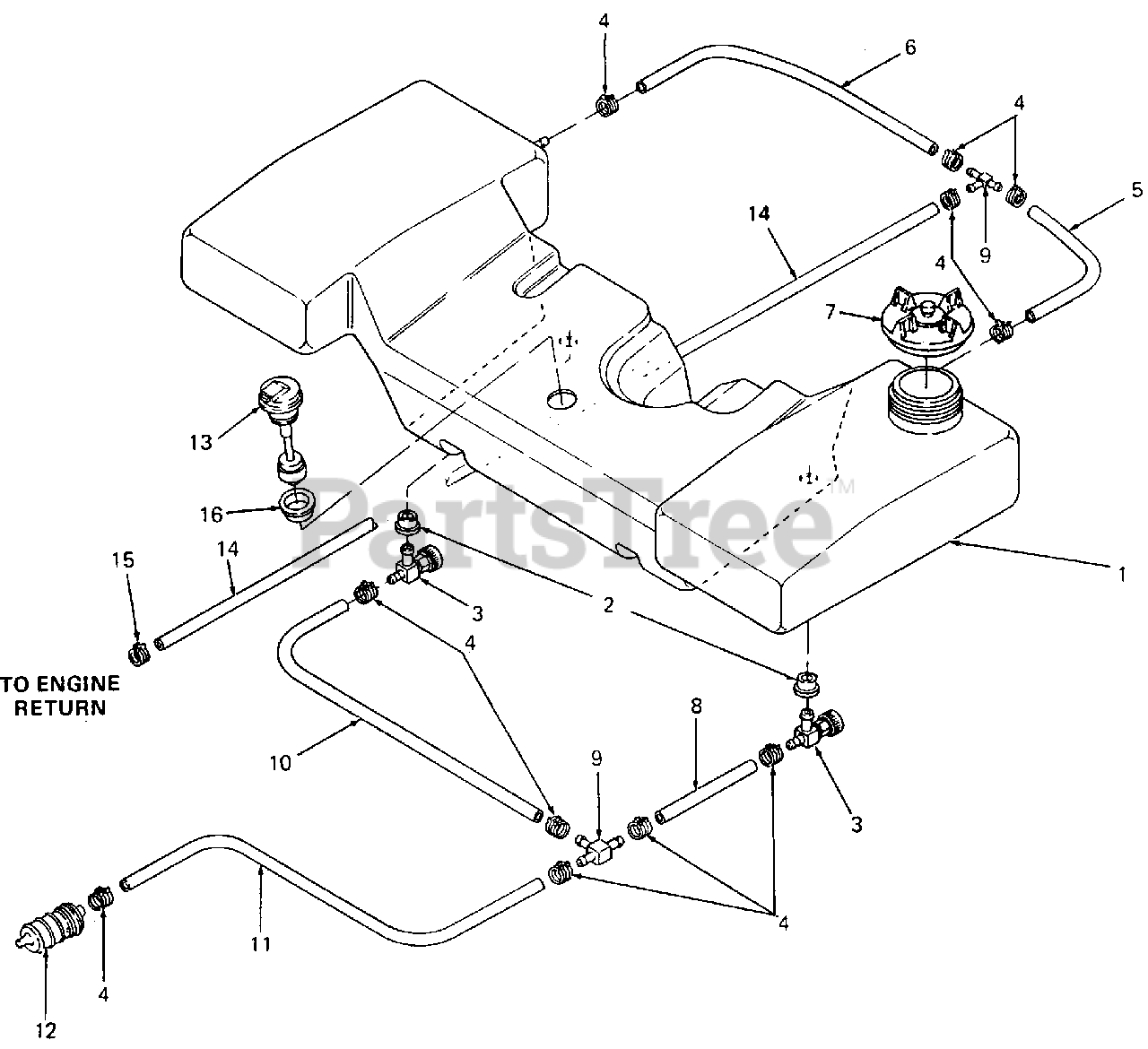

Fuel Tank Parts Diagram

  • Title

1

Cub Cadet 751-3106

Tank, Fuel

$

$

Not available

2

Cub Cadet 751-3008

Bushing
(Superseded to 935-0149)

$2.99

$

In Stock, Qty 20+

0

3

Cub Cadet 751-3085

Valve, Fuel Shutoff

$

$

Not available

4

Cub Cadet 726-0205

Clamp, Hose

$3.99

$

In Stock, Qty 20+

0

5

Line, Fuel -9" Lg

Note: (Order Bulk Fuel Line Part No. 759-3330, 10 Ft Lg)

$

$

Not available

6

Line, Fuel -14" Lg

Note: (Order Bulk Fuel Line Part No. 759-3330, 10 Ft Lg)

$

$

Not available

7

Cub Cadet 751-3109

Cap, Fuel

$

$

Not available

8

Line, Fuel -5" Lg

Note: (Order Bulk Fuel Line Part No. 759-3330, 10 Ft Lg)

$

$

Not available

9

Cub Cadet 751-3096

T-Fitting
(Superseded to 01003473)

$7.49

$

In Stock, only 2 left!

0

10

Line, Fuel -19" Lg

Note: (Order Bulk Fuel Line Part No. 759-3330, 10 Ft Lg)

$

$

Not available

11

Line, Fuel -38" Lg

Note: (Order Bulk Fuel Line Part No. 759-3330, 10 Ft Lg)

$

$

Not available

12

Cub Cadet KB-13351-43010

Filter, Fuel
(Superseded to KB-12581-43012)

$44.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 751-3082

Sensor, Low Fuel
(Superseded to 951-3082)

$

$

Not available

14

Line, Fuel -73" Lg

Note: (Order Bulk Fuel Line Part No. 759-3330, 10 Ft Lg)

$

$

Not available

15

Cub Cadet 726-0146

Clamp, Hose

$

$

Not available

16

Cub Cadet 759-3616

Bushing, Rubber
(Superseded to 735-0699)

$16.99

$

In Stock, only 2 left!

0
