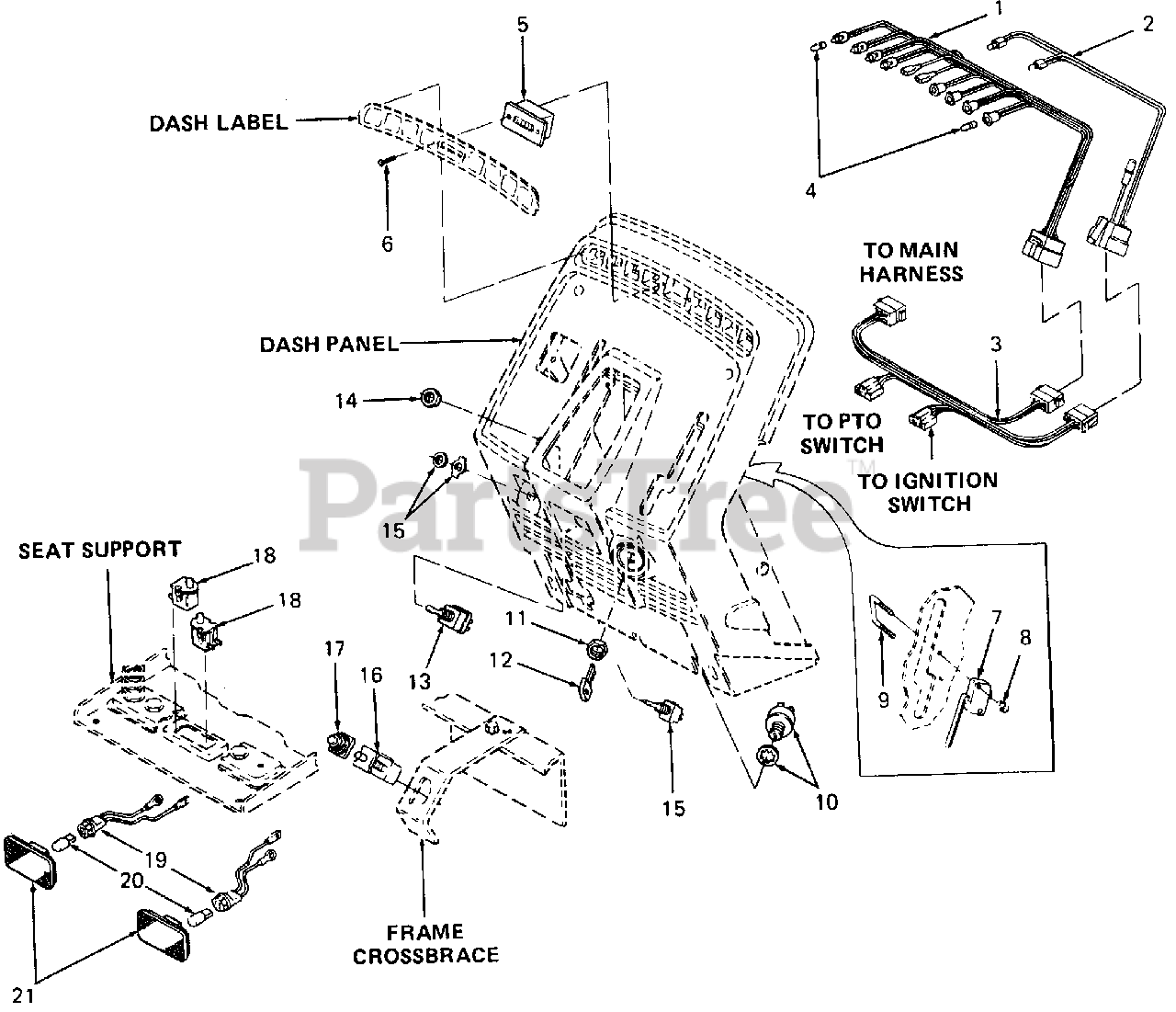

1782 (146-714-100) - Cub Cadet Super Garden Tractor (SN: 821060 - 889000) Electrical Parts Diagram

Super Garden Tractor

Electrical Parts Diagram

  • Title
1

Cub Cadet 725-3185

Harness, Indicator Wire

$

$

Not available

2

Cub Cadet 725-3186

Harness, Indicator Adapter

Note: (Temperature & Glow Plug Indicator)

$

$

Not available

3

Cub Cadet 725-3203

Harness, Pedestal

$

$

Not available

4

Cub Cadet 725-1365

Bulb, Indicator
(Superseded to 925-1365)

$10.99

$

In Stock, only 1 left!

0

5

Cub Cadet 725-3159

Hour Meter
(Superseded to 925-3159)

$

$

Not available

6

Cub Cadet 710-0936

Screw, Truss Hd Tapp, #6 X .62 Lg

$4.49

$

Usually ships in 3-6 days

0

7

Cub Cadet 725-3066

Switch, Reverse
(Superseded to 925-3066)

$

$

Not available

8

Cub Cadet 712-3052

Nut, Hex Insert Lock, #4-40

$

$

Not available

9

Cub Cadet 711-3259

Screw, Switch

$

$

Not available

10

Cub Cadet KB-66706-55120

Switch, Ignition

$125.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 712-3013

Nut, Ignition Switch

$

$

Not available

12

Cub Cadet KB-66711-55140

Key, Ignition (Set of 2)
(Superseded to KB-66711-55240)

$

$

Not available

13

Cub Cadet 725-0893

Switch, PTO
(Superseded to 925-0893)

$82.99

$

In Stock, only 1 left!

0

14

Cub Cadet 712-3014

Nut, Hex, 1/2-27 X .100 Thk

$

$

Not available

15

Cub Cadet 725-0646

Switch, Headlight
(Superseded to 925-1756)

$31.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 725-3191

Switch, Interlock
(Superseded to 925-3191A)

$54.99

$

In Stock, only 4 left!

0

17

Cub Cadet 735-3036

Boot, Switch

$

$

Not available

18

Cub Cadet 725-3167

Switch, Snap Mount Normally Open (Black)
(Superseded to 925-3167)

$14.99

$

In Stock, only 2 left!

0

19

Cub Cadet 725-3019

Cable Assy, Tail Light

$

$

Not available

20

Cub Cadet 725-3020

Bulb, Tail Light

$

$

Not available

21

Cub Cadet 725-3018

Lens Assy, Tail Light

$

$

Currently unavailable

Cub Cadet 710-3003

Screw, Pan Hd, #8-32 X .75 Lg

Note: (Used w/o fender flare

$

$

Not available

Cub Cadet 710-1302

Screw, Pan Hd, #8-32 X 1.50 Lg

Note: (Used w/fender flare

$4.49

$

Usually ships in 3-6 days

0

Cub Cadet 750-0555

Spacer, .254 ID x .50 OD x .390 Lg

Note: (Used w/fender flare

$

$

Not available

Cub Cadet 736-3006

Washer, Int-Ext Lock, 1/4

$6.49

$

Usually ships in 3-6 days

0

Cub Cadet 712-0142

Nut, Hex Mach, #8-32

$4.49

$

In Stock, Qty 10

0
