1782 (146-714-100) - Cub Cadet Super Garden Tractor (SN: 821060 - 889000) Crankshaft, Pistons & Rings Parts Diagram

Super Garden Tractor

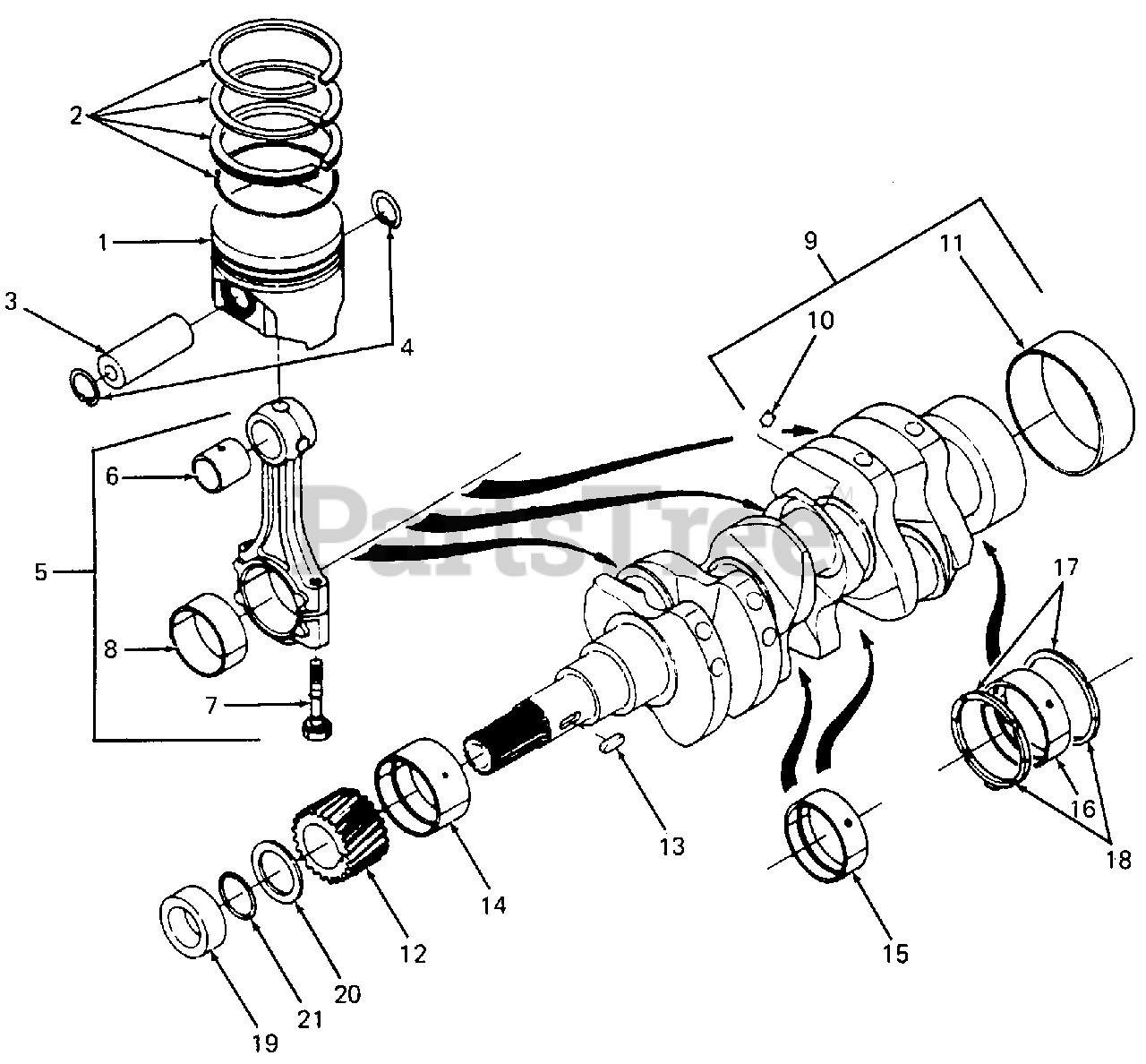

Crankshaft, Pistons & Rings Parts Diagram

  • Title

1

Cub Cadet KB-15852-21110

Piston (Std)

$

$

Not available

Cub Cadet KB-15852-21910

Piston (+0.5 mm)

$

$

Not available

2

Cub Cadet KB-14541-21050

Ring, Piston (Std)

$

$

Not available

Cub Cadet KB-14541-21090

Ring, Piston (+0.5 mm)

$

$

Not available

3

Cub Cadet KB-15841-21310

Pin, Piston

$

$

Not available

4

Cub Cadet KB-14601-21330

Ring, Retaining

$

$

Not available

5

Cub Cadet KB-19036-22010

Rod Assy, Connecting

Note: (Includes Ref No. 6, 7 & 8)

$

$

Not available

6

Cub Cadet KB-15841-21980

Bushing, Piston Pin

$

$

Not available

7

Cub Cadet KB-16851-22140

Bolt, Connecting Rod

$

$

Not available

8

Cub Cadet KB-19036-22310

Bearing, Connecting Rod (Std)

$

$

Not available

Cub Cadet KB-15841-22970

Bearing, Connecting Rod (-0.2 mm)

$

$

Not available

Cub Cadet KB-15841-22980

Bearing, Connecting Rod (-0.4 mm)

$

$

Not available

9

Cub Cadet KB-15861-23010

Crankshaft Assy

Note: [Includes Ref No. 10 (Qty 3) & 11]

$

$

Not available

10

Cub Cadet KB-07715-03207

Ball

$

$

Not available

11

Cub Cadet KB-19215-23280

Sleeve, Crankshaft

$

$

Not available

12

Cub Cadet KB-15841-24110

Gear, Crankshaft

$

$

Not available

13

Cub Cadet KB-05712-00515

Key

$

$

Not available

14

Cub Cadet KB-15841-23470

Bearing, Crankshaft Main (Std)
(Superseded to KB-15861-23470)

$

$

Not available

Cub Cadet KB-15841-23910

Bearing, Crankshaft Main (-0.2 mm)

$

$

Not available

Cub Cadet KB-15841-23920

Bearing, Crankshaft Main (-0.4 mm)

$

$

Not available

14

Cub Cadet KB-15861-23470

Bearing, Crankshaft Main (Std)

$

$

Not available

Cub Cadet KB-15861-23910

Bearing, Crankshaft Main (-0.2 mm)

$

$

Not available

Cub Cadet KB-15861-23920

Bearing, Crankshaft Main (-0.4 mm)

$

$

Not available

15

Cub Cadet KB-15841-23480

Bearing, Crankshaft Main (Std)

$

$

Not available

Cub Cadet KB-15841-23860

Bearing, Crankshaft Main (-0.2 mm)

$

$

Not available

Cub Cadet KB-15841-23870

Bearing, Crankshaft Main (-0.4 mm)

$

$

Not available

15

Cub Cadet KB-15861-23480

Bearing, Crankshaft Main (Std)

$

$

Not available

Cub Cadet KB-15861-23860

Bearing, Crankshaft Main (-0.2 mm)

$

$

Not available

Cub Cadet KB-15861-23870

Bearing, Crankshaft Main (-0.4 mm)

$

$

Not available

16

Cub Cadet KB-15261-23480

Bearing, Crankshaft Main (Std)
(Superseded to KB-15694-23480)

$

$

Not available

Cub Cadet KB-15261-23930

Bearing, Crankshaft Main (-0.2 mm)

$

$

Not available

Cub Cadet KB-15261-23940

Bearing, Crankshaft Main (-0.4 mm)
(Superseded to KB-15694-23940)

$

$

Not available

16

Cub Cadet KB-15694-23480

Bearing, Crankshaft Main (Std)

$

$

Not available

Cub Cadet KB-15694-23930

Bearing, Crankshaft Main (-0.2 mm)

$

$

Not available

Cub Cadet KB-15694-23940

Bearing, Crankshaft Main (-0.4 mm)

$

$

Not available

17

Cub Cadet KB-15261-23530

Bearing, Side (Std)
(Superseded to KB-15261-23533)

$

$

Not available

Cub Cadet KB-15261-23950

Bearing, Side (+0.2 mm)

$

$

Not available

Cub Cadet KB-15261-23960

Bearing, Side (+0.4 mm)

$

$

Not available

18

Cub Cadet KB-15261-23540

Bearing, Side (Std)

$

$

Not available

Cub Cadet KB-15261-23970

Bearing, Side (+0.2 mm)

$

$

Not available

Cub Cadet KB-15261-23980

Bearing, Side (+0.4 mm)

$

$

Not available

19

Cub Cadet KB-15841-23250

Collar, Crankshaft

$

$

Not available

20

Cub Cadet KB-15881-23310

Slinger, Crankshaft Oil

$

$

Not available

21

Cub Cadet KB-04811-16220

O-Ring

$

$

Not available
