1782 (144-714-100) - Cub Cadet Super Garden Tractor (SN: 821060 - 889000) Engine Mounting Parts Diagram

Super Garden Tractor

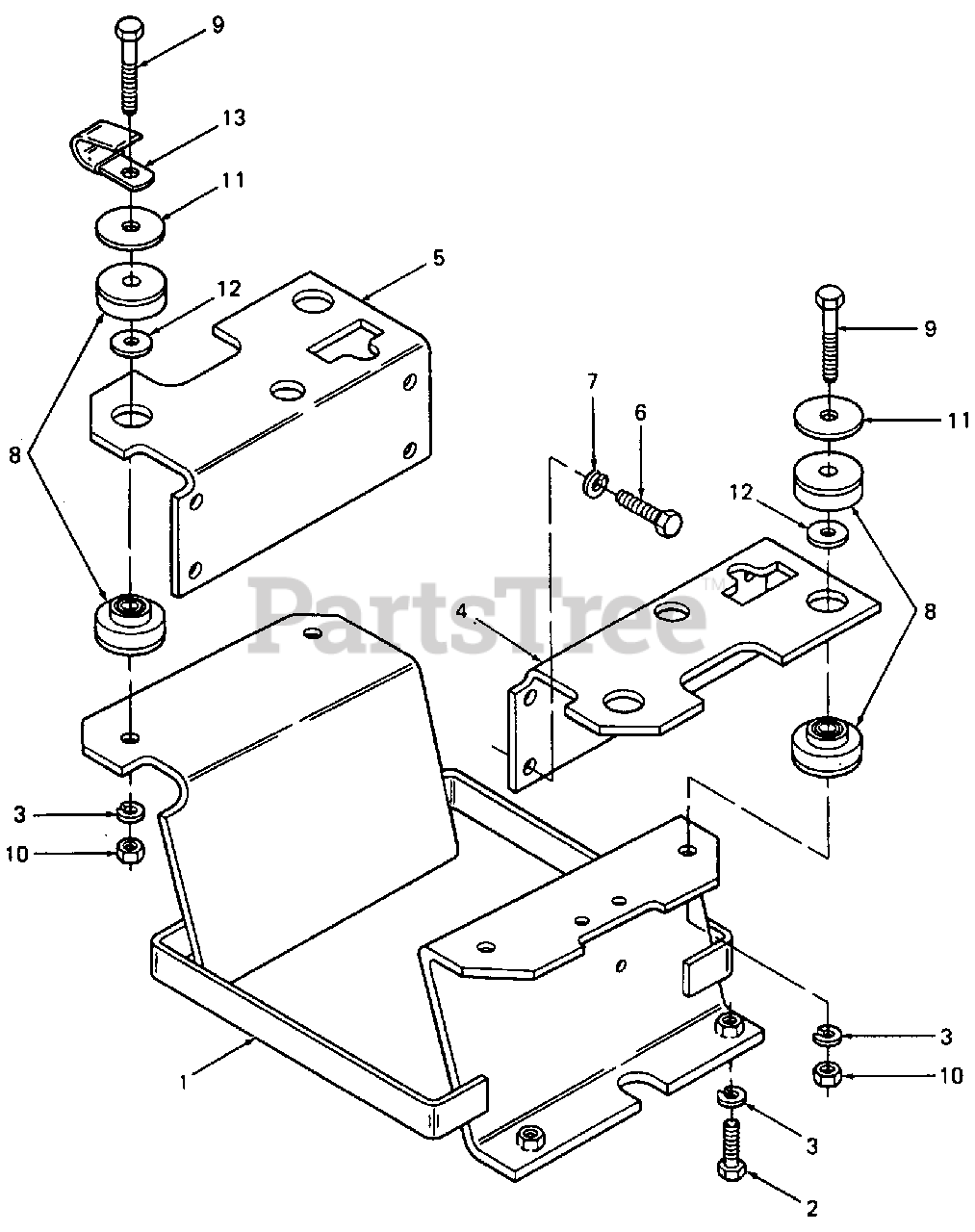

Engine Mounting Parts Diagram

  • Title

Cub Cadet KB-D640B-94

Engine Assy

$

$

Currently unavailable

Cub Cadet KB-D640B-50

Complete Engine Assy less Radiator

Note: (For tractors with radiator mounted coolant recovery tank)

$

$

Currently unavailable

1

Cub Cadet 703-1881

Support Assy, Engine

Variations

Cub Cadet 703-1881-0498

SUPPORT ASSEMBLY ENGNE(CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

$

$

2

Cub Cadet 710-3005

Screw, Hex Cap, 3/8-16 X 1.25 Lg GR5

$3.99

$

In Stock, Qty 10

0

3

Cub Cadet 736-0169

Washer, Lock, 3/8

$3.99

$

In Stock, Qty 20+

0

4

Cub Cadet 703-0959

Plate, Engine, LH

Variations

Cub Cadet 703-0959-0498

ENGINE PLATE (LH) - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 703-0959-0637

ENGINE PLATE (LH)(POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

5

Cub Cadet 703-0960

Plate, Engine, RH

Variations

Cub Cadet 703-0960-0637

ENGINE PLATE (RH)(POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

6

Cub Cadet 710-3136

Screw, Hex Cap, M10-1.25 X 25 mm Lg GR8

$

$

Not available

7

Cub Cadet 736-3076

Washer, Lock, 10.2 mm

$

$

Not available

8

Cub Cadet 722-3006

Isomount
(Superseded to 922-3006)

$

$

Not available

9

Cub Cadet 710-3011

Screw, Hex Cap, 3/8-16 X 2.25 Lg GR5

$6.99

$

In Stock, Qty 20+

0

10

Cub Cadet 712-3017

Nut, Hex, 3/8-16 GR5

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 736-0227

Washer, Flat, .390 X 1.50 X .134 Thk

$6.49

$

In Stock, Qty 13

0

12

Cub Cadet 736-3072

Washer, Isomount, .38 X .93 X .110 Thk Hdn

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 726-3008

Clip, Cable

$4.99

$

Usually ships in 3-6 days

0
