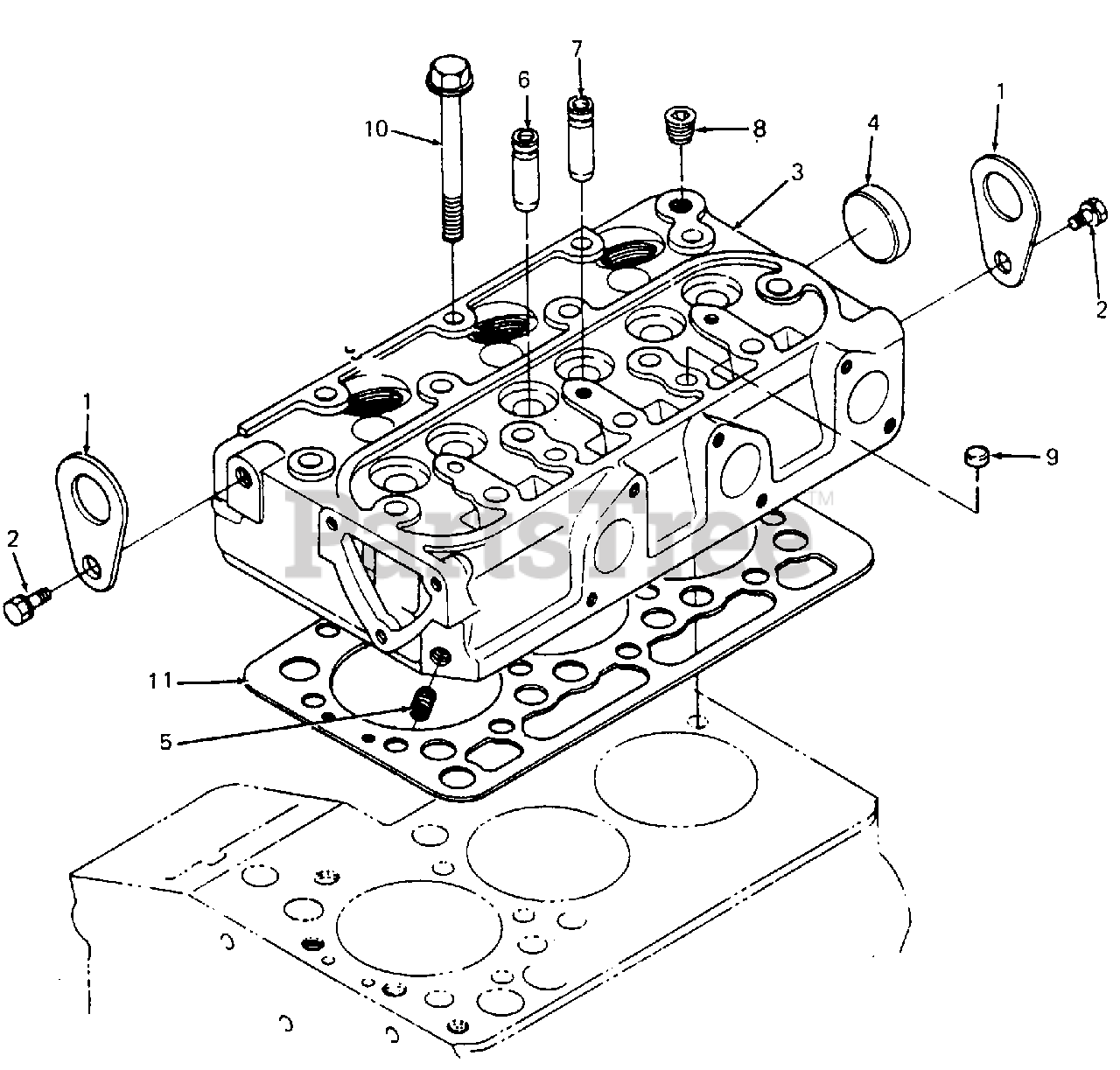

1782 (143-714-100) - Cub Cadet Super Garden Tractor (SN: 821060 - 889000) Cylinder Head Parts Diagram

Super Garden Tractor

Cylinder Head Parts Diagram

  • Title
1

$

$

Not available

2

Cub Cadet KB-01123-50814

Screw, Hex Cap

$

$

Not available

3

Cub Cadet KB-19498-03040

Head Assy, Cylinder

Note: [Includes Ref No. 4, 5, 6 (Qty 3), 7 (Qty 3), 8 & 9 (Qty 2)]

$

$

Not available

$

$

Not available

$

$

Not available

6

Cub Cadet KB-15841-13540

Guide, Intake Valve

$

$

Not available

7

Cub Cadet KB-15841-13560

Guide, Exhaust Valve

$

$

Not available

$

$

Not available

$

$

Not available

10

$

$

Not available

11

Cub Cadet KB-15875-03310

Gasket, Head
(Superseded to KB-15872-03310)

$

$
