1782 (142-715-100) - Cub Cadet Super Garden Tractor (SN: 821060 - 889000) Implement Lift & Down Stop Rod Parts Diagram

Super Garden Tractor

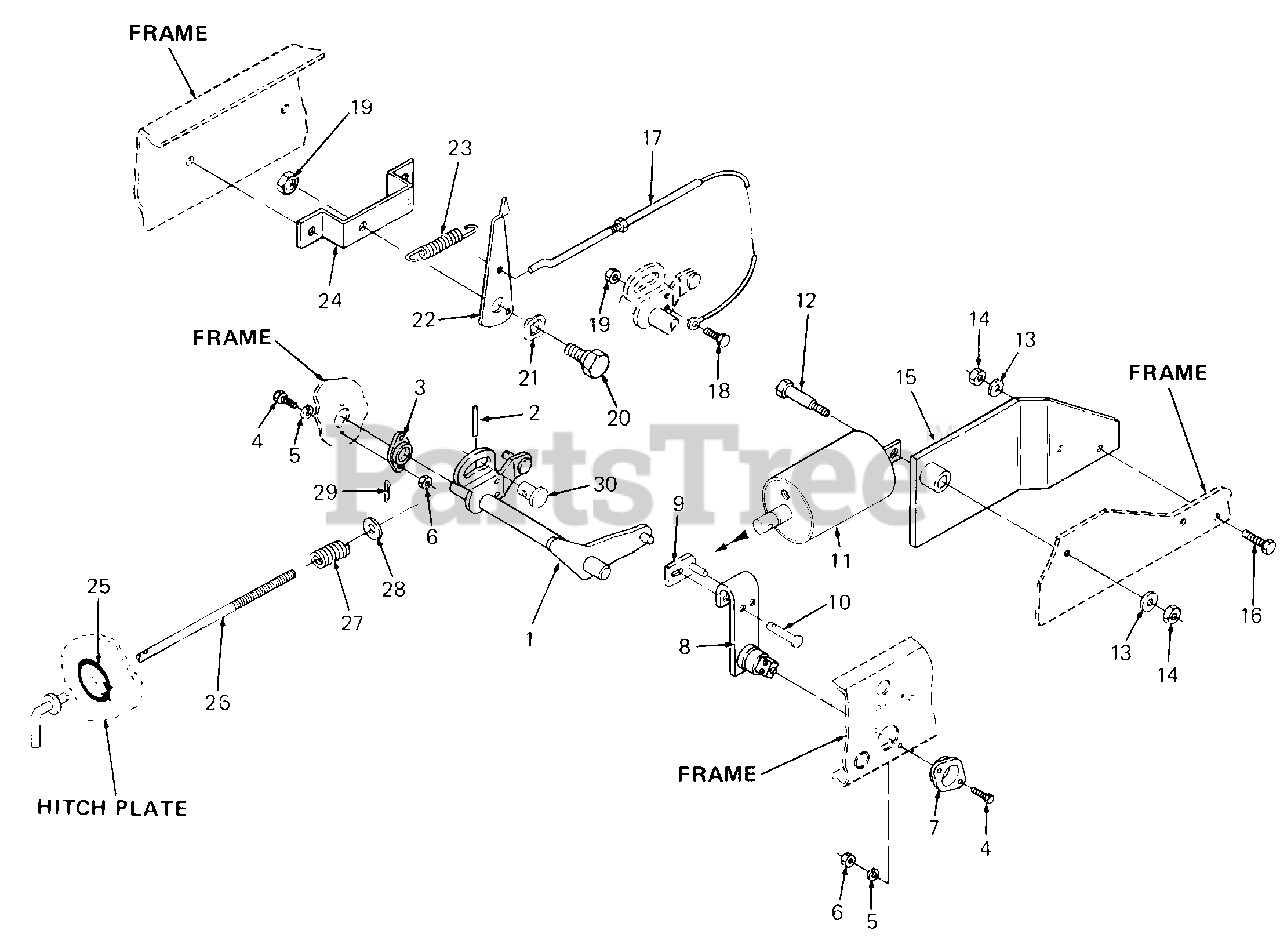

Implement Lift & Down Stop Rod Parts Diagram

  • Title

1

Cub Cadet 703-2001

Shaft Assy, Lift

Variations

Cub Cadet 703-2001-0498

LIFT SHAFT ASSEMBLY - OLD CUB YELLOW (0498)

$

$

Not available

$

$

2

Cub Cadet 715-0114

Pin, Spiral Spring, 1/4 Dia X 1.50 Lg

$9.49

$

In Stock, Qty 20+

0

3

Cub Cadet 748-3041

Bushing, Lift, LH

$

$

Not available

4

Cub Cadet 710-3015

Screw, Hex Cap, 1/4-20 X .75 Lg GR5

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 736-0329

Washer, Lock, 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

6

Cub Cadet 712-3006

Nut, Hex, 1/4-20 GR5

$4.99

$

In Stock, Qty 17

0

7

Cub Cadet 748-3040

Bushing, Lift, RH

$

$

Not available

8

Cub Cadet 703-2006

Bracket Assy, Lift

$

$

Not available

Cub Cadet 737-3000

Lube, Fitting, 3/16 Drive
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

9

Cub Cadet 703-0176

Pin Assy, Lift

$

$

Not available

10

Cub Cadet 711-3030

Pin, Clevis, 1/2 Dia X 2.172 Lg

$

$

Not available

Cub Cadet 736-0108

Washer, Flat, .510 X .75 X .033 Thk

$6.99

$

Usually ships in 3-6 days

0

Cub Cadet 714-0115

Pin, Cotter, 1/8 Dia X 1.0 Lg

$3.99

$

In Stock, only 2 left!

0

11

Cub Cadet 717-3005

Cylinder, Hydraulic

Note: (For component parts see breakdown under Hydraulic Cylinder)

$

$

Not available

12

Cub Cadet 738-3008

Bolt, Shoulder

$

$

Not available

13

Cub Cadet 736-3019

Washer, Flat, .531 X 1.06 X .134 Thk

$5.99

$

In Stock, Qty 11

0

14

Cub Cadet 712-3022

Nut, Hex Center Lock, 1/2-13 GR5

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 703-0174

Bracket, Cylinder

$

$

Not available

16

Cub Cadet 710-3032

Screw, Hex Cap, 1/2-13 X 1.25 Lg GR5

$6.49

$

Usually ships in 3-6 days

0

17

Cub Cadet 746-3018

Cable Assy, Indicator

$

$

Not available

18

Cub Cadet 710-0206

Screw, Hex Cap, 1/4-20 X .88 Lg

$4.49

$

Usually ships in 3-6 days

0

19

Cub Cadet 712-0107

Nut, Hex Patch Lock, 1/4-20
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

20

Cub Cadet 738-0255

Screw, Shoulder, .375 Dia X .181
(Superseded to 938-0255)

$5.49

$

In Stock, Qty 6

0

21

Cub Cadet 736-0286

Washer, Bowed Spring
(Superseded to 936-0286)

$6.99

$

In Stock, only 2 left!

0

22

Cub Cadet 703-1483

Arm, Indicator

$

$

Not available

23

Cub Cadet 732-0357

Spring, Extension, .33 OD X 1.12 Lg
(Superseded to 932-0357A)

$4.49

$

In Stock, Qty 13

0

24

Cub Cadet 703-1482

Bracket, Mounting

$

$

Not available

Cub Cadet 728-3012

Rivet, Pop, .125 Dia X .232 Lg

$

$

Not available

25

Cub Cadet 779-3563

Graphic, Down Stop Adjustment

$

$

Not available

26

Cub Cadet 747-3159

Rod, Down Stop Adjustment

$

$

Not available

27

Cub Cadet 732-0645

Spring, Compression, .501 X .75 X 1.00 Lg
(Superseded to 932-0645)

$2.99

$

In Stock, only 4 left!

0

28

Cub Cadet 736-3064

Washer, Flat, .656 X 1.312 X .074 Thk
(Superseded to 936-3064)

$

$

Not available

29

Cub Cadet 715-0104

Pin, Internal Cotter

$

$

Not available

30

Cub Cadet 711-3317

Clevis, .750 X 1.00 Lg

$

$

Not available

?31

Cub Cadet 736-3094

Washer, Flat, .758 X 2.0 X .030 Thk
(Superseded to 936-3094)

$

$

Not available

?32

Cub Cadet 712-0351

Nut, Hex LH Thrd, 1/4-28
(Superseded to 712-04326)

$14.99

$

In Stock, only 1 left!

0
