178-LU - Cub Cadet Engine 178-LU Carburetor Assembly Parts Diagram

Engine

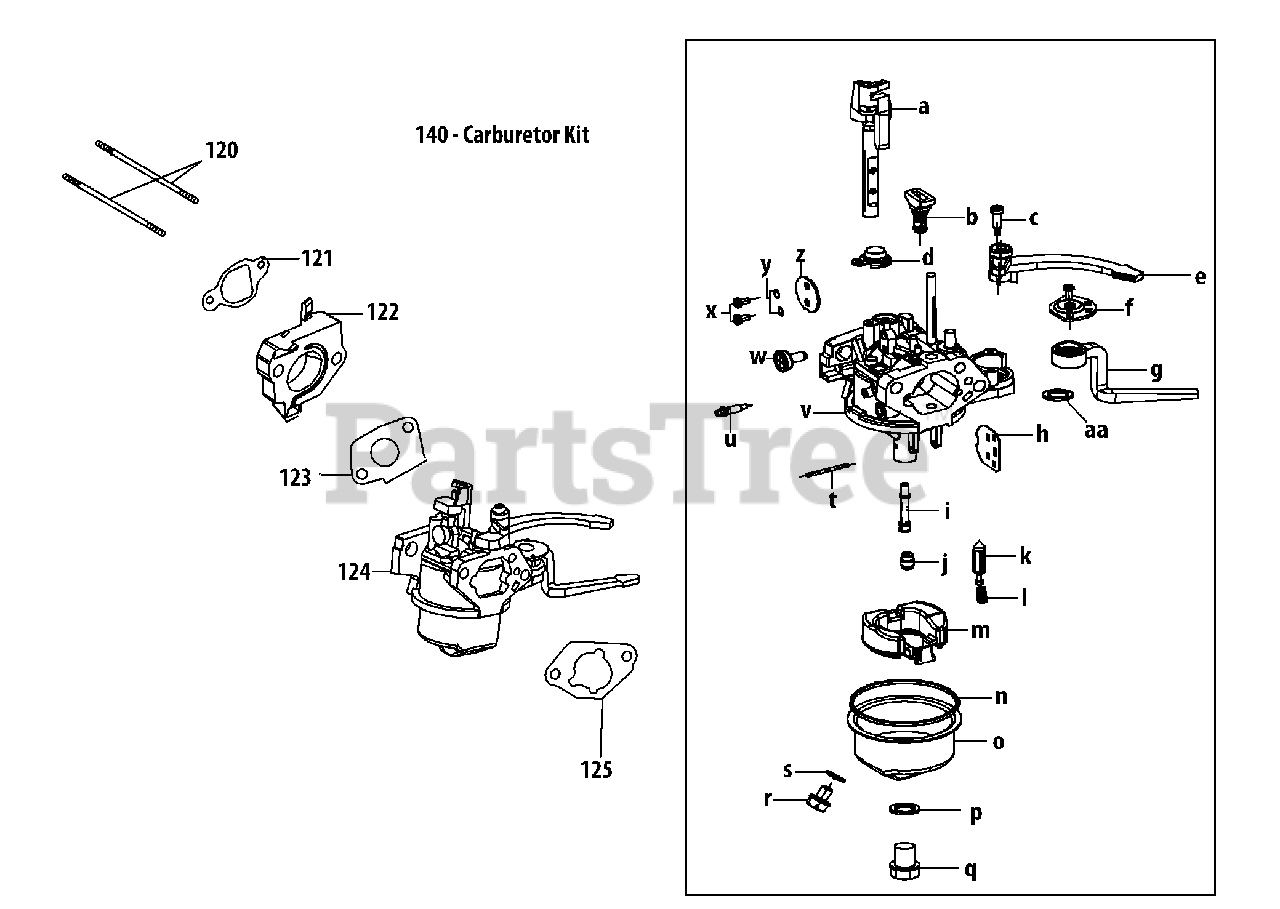

178-LU Carburetor Assembly Parts Diagram

  • Title

$3.99

$

Usually ships in 3-6 days

0

121

Cub Cadet 951-11225

Carburetor Insulator Gasket

$4.49

$

In Stock, Qty 7

0

122

Cub Cadet 951-11222

Carburetor Insulator

$8.49

$

In Stock, Qty 9

0

123

Cub Cadet 951-11223

Carburetor Gasket

$5.49

$

In Stock, Qty 13

0

124

Cub Cadet 951-12791

Carburetor Assembly
(Superseded to 951-12791A)

$145.99

$

In Stock, only 1 left!

0

125

Cub Cadet 951-12406

Carburetor Gasket Plate

$5.49

$

In Stock, only 2 left!

0

140

Cub Cadet 951-12762A

Carburetor Kit

Note: (Incl.b,I,j,k,l,m,n,p,s,t)

$54.99

$

Usually ships in 3-6 days

0

a

Cub Cadet n/a

Throttle Shaft

$

$

Currently unavailable

b

Cub Cadet n/a

Idle Jet Assembly

$

$

Currently unavailable

c

Cub Cadet 710-05459

Choke Control Screw

$3.99

$

Usually ships in 3-6 days

0

d

Cub Cadet n/a

Lock Plate

$

$

Currently unavailable

e

Cub Cadet 951-12422

Choke Knob

$11.99

$

In Stock, only 1 left!

0

f

Cub Cadet 951-12792

Fuel Shutoff Cover

$4.49

$

Usually ships in 3-6 days

0

g

Cub Cadet 951-12423

Fuel Shutoff Lever

$11.99

$

Usually ships in 3-6 days

0

h

Cub Cadet n/a

Choke Plate

$

$

Currently unavailable

i

Cub Cadet n/a

Emulsion Tube

$

$

Currently unavailable

j

Cub Cadet n/a

Main Jet

$

$

Currently unavailable

k

Cub Cadet n/a

Needle Valve

$

$

Currently unavailable

l

Cub Cadet n/a

Needle Valve Spring

$

$

Currently unavailable

m

$

$

Currently unavailable

n

Cub Cadet 951-11970

Fuel Bowl Gasket

$6.99

$

In Stock, Qty 7

0

o

Cub Cadet n/a

Fuel Bowl Assembly

$

$

Currently unavailable

p

Cub Cadet 951-11348

Fuel Bowl Gasket
(Superseded to 951-11348A)

$5.99

$

In Stock, Qty 11

0

q

Cub Cadet 710-04945

Fuel Bowl Mounting Bolt

$4.49

$

In Stock, Qty 12

0

r

Cub Cadet 710-04938

Fuel Drain Plug

$4.49

$

In Stock, Qty 8

0

s

Cub Cadet 951-11349

Fuel Drain Plug Gasket
(Superseded to 951-11349A)

$4.49

$

In Stock, Qty 20+

0

t

Cub Cadet n/a

Float Pin

$

$

Currently unavailable

u

Cub Cadet n/a

Mixture Screw

$

$

Currently unavailable

v

Cub Cadet n/a

Carburetor Body

$

$

Currently unavailable

w

Cub Cadet 710-05469

Idle Speed Adjusting Screw

$4.49

$

Usually ships in 3-6 days

0

x

Cub Cadet n/a

Screw M3×5

$

$

Currently unavailable

y

Cub Cadet 736-04638

Lock Washer
(Superseded to 736-04638A)

$3.49

$

In Stock, only 1 left!

0

z

Cub Cadet n/a

Throttle Plate

$

$

Currently unavailable
