17754 - Lawn-Boy 21" Walk-Behind Mower (SN: 400000000 - 999999999) Handle Assembly Parts Diagram

21" Walk-Behind Mower

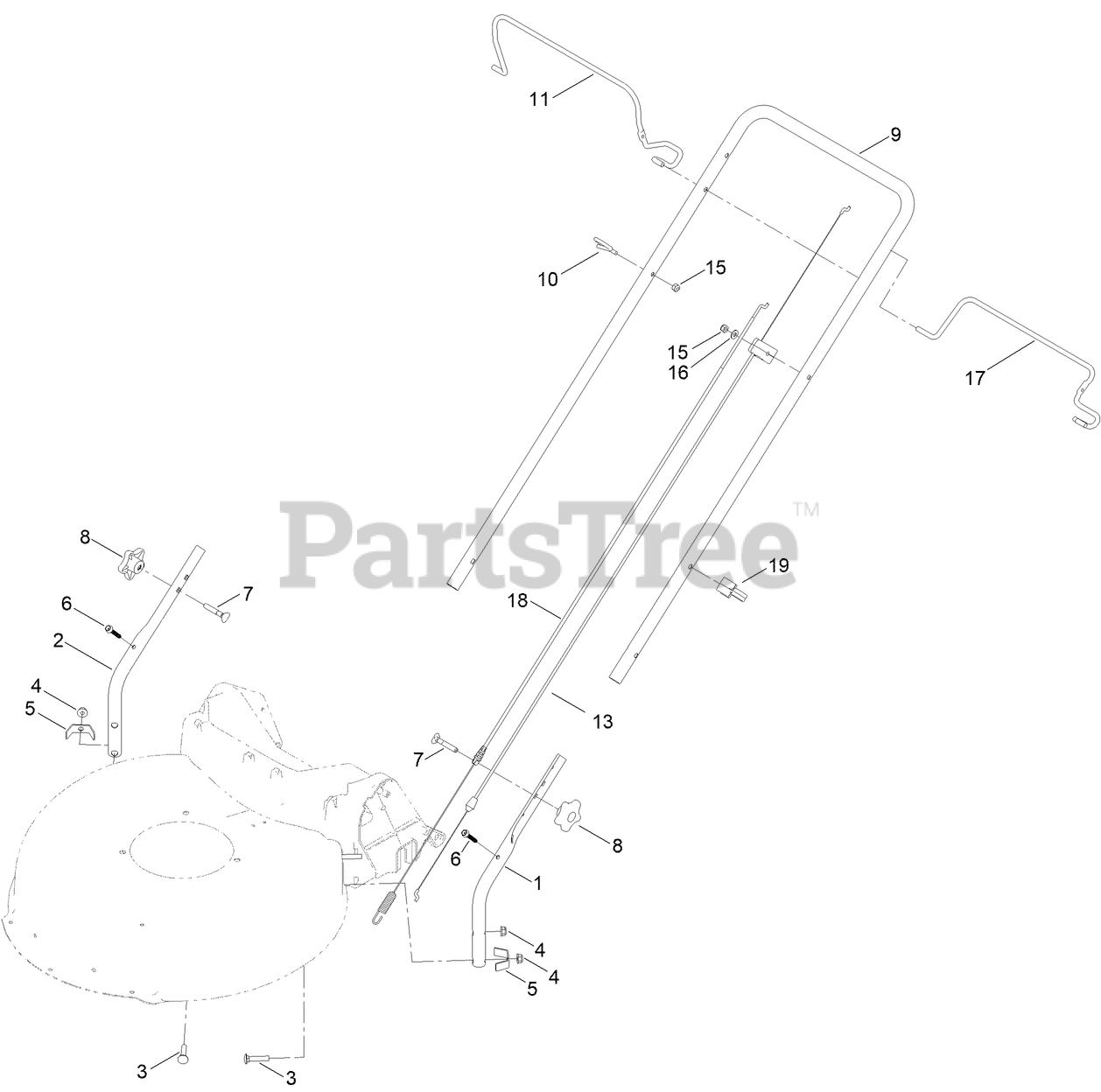

Handle Assembly Parts Diagram

  • Title
1

Lawn-Boy 136-5923-05

HANDLE-LOWER, LH

$47.99

$

In Stock, Qty 15

0

2

Lawn-Boy 136-5924-05

HANDLE-LOWER, RH

$23.99

$

In Stock, Qty 20+

0

3

Lawn-Boy 130-6654

BOLT-CARR

$1.49

$

In Stock, Qty 5

0

4

Lawn-Boy 130-6655

NUT-FLANGE, NI

$0.99

$

In Stock, Qty 17

0

5

Lawn-Boy 127-0699

BRACKET-CHUTE

$1.99

$

In Stock, only 4 left!

0

6

Lawn-Boy 130-6659

SCREW-FLANGE, SERRATED

$1.49

$

In Stock, Qty 15

0

7

Lawn-Boy 92-2260

SCREW-HANDLE

$3.99

$

In Stock, only 3 left!

0

8

Lawn-Boy 117-5976

KNOB-HANDLE

$2.99

$

In Stock, Qty 15

0

9

Lawn-Boy 140-3915-05

HANDLE-UPPER

$38.99

$

Usually ships in 3-6 days

0

10

Lawn-Boy 86-9671

GUIDE-ROPE

$4.49

$

In Stock, Qty 5

0

11

$14.99

$

In Stock, only 1 left!

0

13

Lawn-Boy 112-8818

CABLE-BRAKE

$35.99

$

In Stock, Qty 6

0

15

Lawn-Boy 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, only 3 left!

0

16

Lawn-Boy 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

17

Lawn-Boy 127-0719-03

BAIL-TRACTION

$25.99

$

In Stock, only 3 left!

0

18

Lawn-Boy 127-0733

CABLE-TRACTION

$18.99

$

In Stock, only 1 left!

0

19

Lawn-Boy 114-7988

GUIDE-CABLE

$2.99

$

In Stock, Qty 7

0
