17740 - Lawn-Boy Snow Thrower (SN: 400000000 - 999999999) Handle and Control Assembly Parts Diagram

Snow Thrower

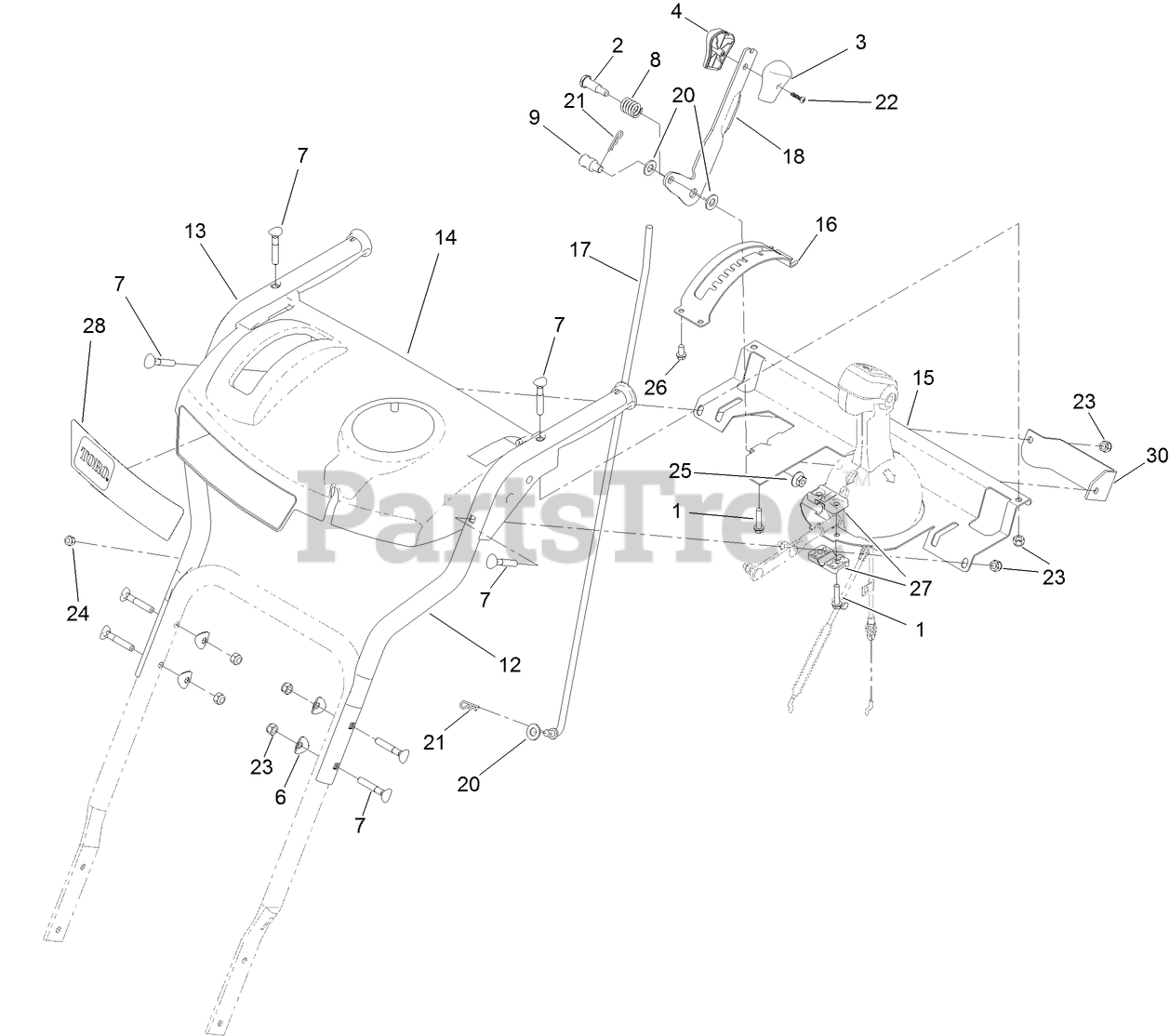

Handle and Control Assembly Parts Diagram

  • Title

1

Lawn-Boy 137-3100

SCREW-PLASTITE, HWH
(Superseded to 137-3101)

$1.49

$

In Stock, Qty 7

0

2

Lawn-Boy 137-3103

SCREW-SHOULDER, HH

$1.49

$

Usually ships in 3-6 days

0

3

Lawn-Boy 105-9999

KNOB-SHIFT, LH

$7.99

$

In Stock, only 4 left!

0

4

Lawn-Boy 106-4423

KNOB-SHIFT, RH

$7.99

$

In Stock, only 4 left!

0

6

Lawn-Boy 137-3009

WASHER-CUP

$0.99

$

Usually ships in 3-6 days

0

7

Lawn-Boy 137-3107

SCREW-HANDLE

$1.99

$

In Stock, Qty 5

0

8

Lawn-Boy 136-7121

SPRING-COMPRESSION

$2.99

$

Usually ships in 3-6 days

0

9

Lawn-Boy 136-7193

TRUNNION-ROD

$7.99

$

In Stock, Qty 10

0

12

Lawn-Boy 120-7173-03

HANDLE-UPPER, LH

$42.99

$

Usually ships in 3-6 days

0

13

Lawn-Boy 120-7174-03

HANDLE-UPPER, RH

$42.99

$

Usually ships in 3-6 days

0

14

Lawn-Boy 120-7194

PANEL-CONTROL, MASTER

$46.99

$

Usually ships in 3-6 days

0

15

Lawn-Boy 120-9251-03

SUPPORT-PANEL, CONTROL

$44.99

$

Usually ships in 3-6 days

0

16

Lawn-Boy 120-9258-03

MOUNT-SELECTOR, SPEED

$5.99

$

Usually ships in 3-6 days

0

17

Lawn-Boy 136-7163

ROD-SELECTOR, GEAR

$18.99

$

In Stock, only 4 left!

0

18

Lawn-Boy 121-1242-03

SELECTOR-SPEED

$11.99

$

In Stock, only 1 left!

0

20

Lawn-Boy 131-8667

WASHER-THRUST

$1.49

$

In Stock, Qty 12

0

21

Lawn-Boy 137-3083

PIN-HAIR

$1.49

$

In Stock, Qty 16

0

22

Lawn-Boy 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

23

Lawn-Boy 137-3093

NUT-HEX

$1.49

$

In Stock, Qty 15

0

24

Lawn-Boy 137-3094

NUT-HEX

$1.49

$

In Stock, Qty 14

0

25

Lawn-Boy 137-3038

NUT-HF

$5.49

$

Usually ships in 3-6 days

0

26

Lawn-Boy 46-8093

SCREW-PLASTITE

$1.49

$

Usually ships in 3-6 days

0

27

Lawn-Boy 105-9987

SUPPORT-ROD

$8.49

$

In Stock, Qty 7

0

28

Lawn-Boy 138-8457

DECAL-MODEL

$9.99

$

Usually ships in 3-6 days

0

30

Lawn-Boy 120-2301-03

PLATE-SUPPORT, SHIFT

$6.49

$

Usually ships in 3-6 days

0
