17740 - Lawn-Boy Snow Thrower (SN: 400000000 - 999999999) Fuel System and Carburetor Assembly Parts Diagram

Snow Thrower

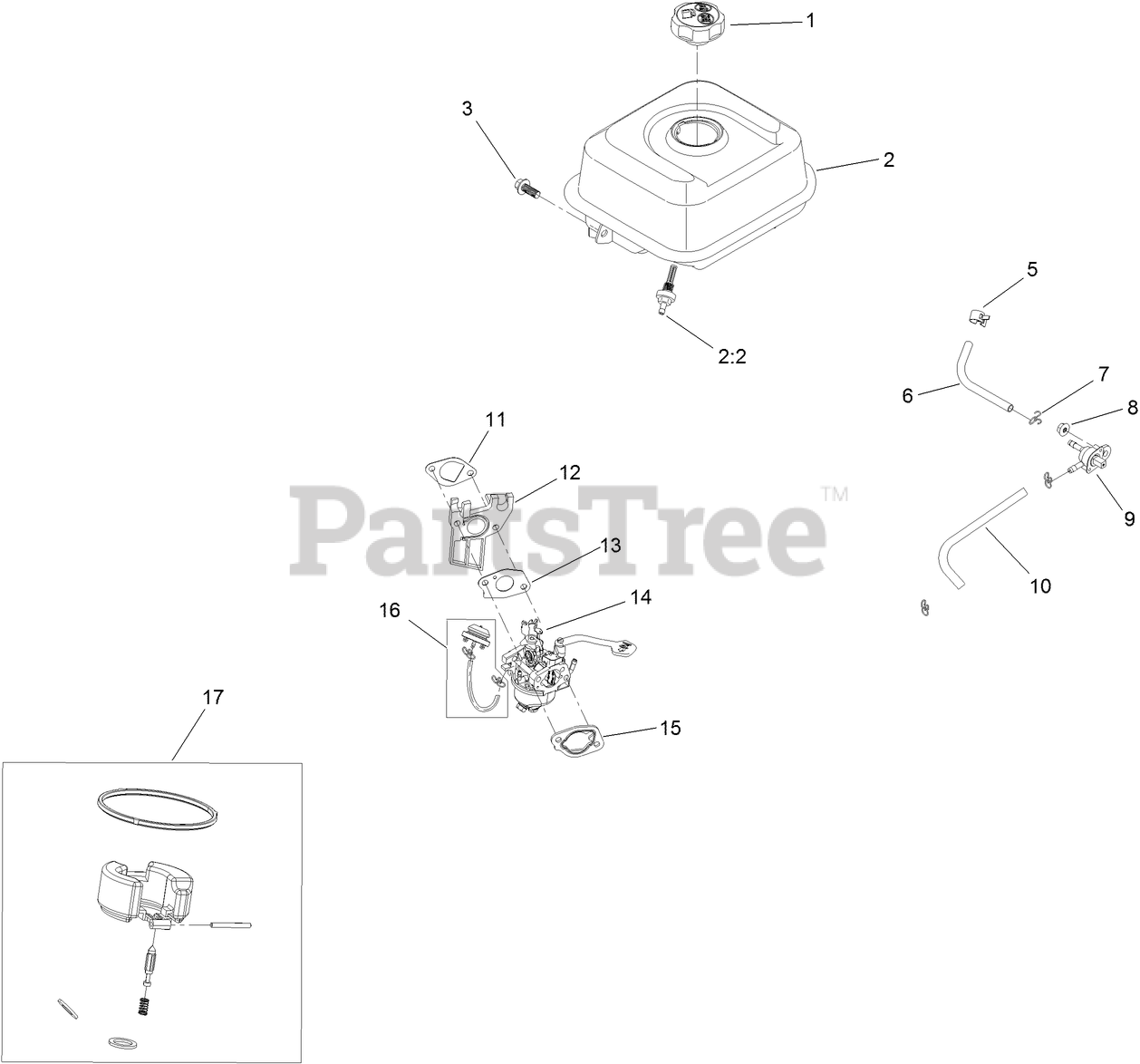

Fuel System and Carburetor Assembly Parts Diagram

  • Title

1

Lawn-Boy 133-9823

CAP-FUEL

$19.99

$

In Stock, only 2 left!

0

2

Lawn-Boy 127-9497

FUEL TANK AND FILTER ASM

$100.99

$

Usually ships in 3-6 days

0

2:2

Lawn-Boy 127-9065

FILTER-FUEL

$5.99

$

In Stock, only 2 left!

0

3

Lawn-Boy 121-0294

SCREW-HHF

$1.99

$

In Stock, Qty 8

0

5

Lawn-Boy 127-9120

CLAMP-HOSE

$1.99

$

In Stock, Qty 5

0

6

Lawn-Boy 127-9118

HOSE-FUEL, FORMED

$10.99

$

Usually ships in 3-6 days

0

7

Lawn-Boy 121-0087

CLAMP-HOSE

$1.49

$

In Stock, only 2 left!

0

8

Lawn-Boy 120-4236

NUT-FLANGE

$1.49

$

In Stock, Qty 17

0

9

Lawn-Boy 127-9117

VALVE-FUEL

$18.99

$

In Stock, only 1 left!

0

10

Lawn-Boy 127-9384

HOSE-FUEL, FORMED

$11.99

$

Usually ships in 3-6 days

0

11

Lawn-Boy 121-0076

GASKET-CARBURETOR

$1.99

$

In Stock, Qty 10

0

12

Lawn-Boy 121-0077

INSULATOR-CARBURETOR

$5.99

$

In Stock, only 2 left!

0

13

Lawn-Boy 121-0078

GASKET-CARBURETOR

$1.99

$

In Stock, Qty 11

0

14

Lawn-Boy 127-9111

CARBURETOR ASM

$90.99

$

In Stock, only 2 left!

0

15

Lawn-Boy 121-0080

GASKET-CARBURETOR

$5.99

$

In Stock, only 2 left!

0

16

Lawn-Boy 127-9079

PRIMER KIT

$29.99

$

In Stock, only 2 left!

0

17

Lawn-Boy 127-9394

INTERNAL CARB SERVICE KIT

$21.99

$

In Stock, only 2 left!

0

99

Lawn-Boy 127-9301

HIGH ALTITUDE KIT - G210

Note: Not illustrated

$13.99

$

Usually ships in 3-6 days

0
