17740 - Lawn-Boy Snow Thrower (SN: 400000000 - 999999999) Control Assembly Parts Diagram

Snow Thrower

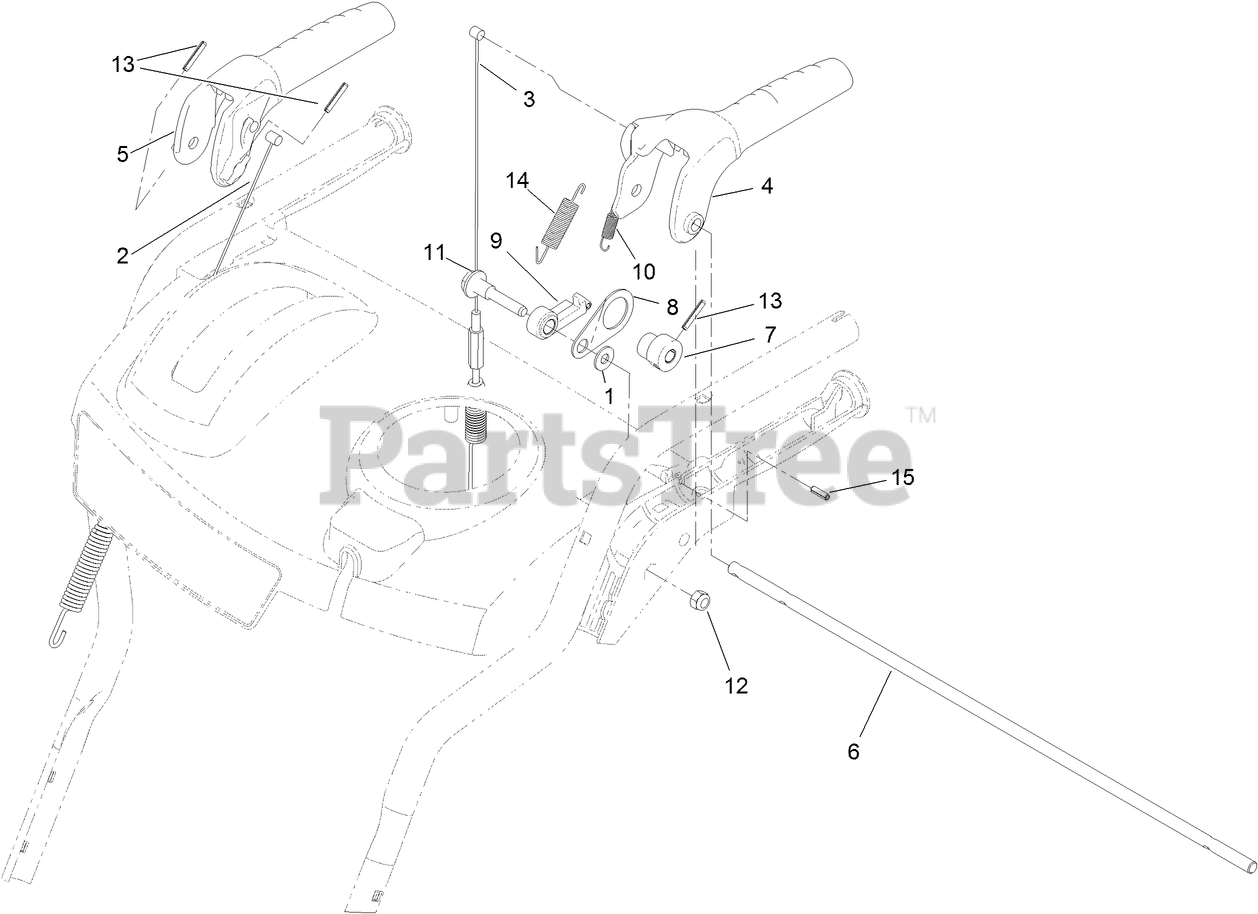

Control Assembly Parts Diagram

  • Title
1

Lawn-Boy 98-3499

WASHER-FLAT

$2.99

$

In Stock, only 2 left!

0

2

Lawn-Boy 121-6812

CABLE-AUGER

$30.99

$

Usually ships in 3-6 days

0

3

Lawn-Boy 121-6813

CABLE-TRACTION
(Superseded to 161-0975)

$28.99

$

Usually ships in 0 days

0

4

Lawn-Boy 121-1200

HANDLE-CONTROL, TRACTION

$19.99

$

Usually ships in 3-6 days

0

5

Lawn-Boy 121-1201

HANDLE-CONTROL, AUGER

$19.99

$

Usually ships in 3-6 days

0

6

Lawn-Boy 136-7125

ROD-LOCKOUT

$25.99

$

Usually ships in 3-6 days

0

7

Lawn-Boy 121-1203

CAM-LOCKOUT

$8.49

$

Usually ships in 3-6 days

0

8

Lawn-Boy 136-7160

LINK-LOCKOUT

$1.99

$

Usually ships in 3-6 days

0

9

Lawn-Boy 121-1205

LATCH-LOCKOUT

$8.49

$

Usually ships in 3-6 days

0

10

Lawn-Boy 136-7161

SPRING-LOCKOUT, HANDLE

$4.99

$

In Stock, only 1 left!

0

11

Lawn-Boy 136-7194

SCREW-SHOULDER

$1.99

$

Usually ships in 3-6 days

0

12

$1.49

$

In Stock, Qty 15

0

13

Lawn-Boy 137-3035

PIN-SPRING
(Superseded to 145-1655)

$1.99

$

In Stock, Qty 20+

0

14

Lawn-Boy 136-7162

SPRING-RETURN, LEVER

$4.99

$

Usually ships in 3-6 days

0

15

Lawn-Boy 32121-2

PIN-ROLL, SLOTTED

$0.99

$

In Stock, Qty 9

0
