17739 - Lawn-Boy 21" Walk-Behind Mower (SN: 406000000 - 999999999) Handle Assembly Parts Diagram

21" Walk-Behind Mower

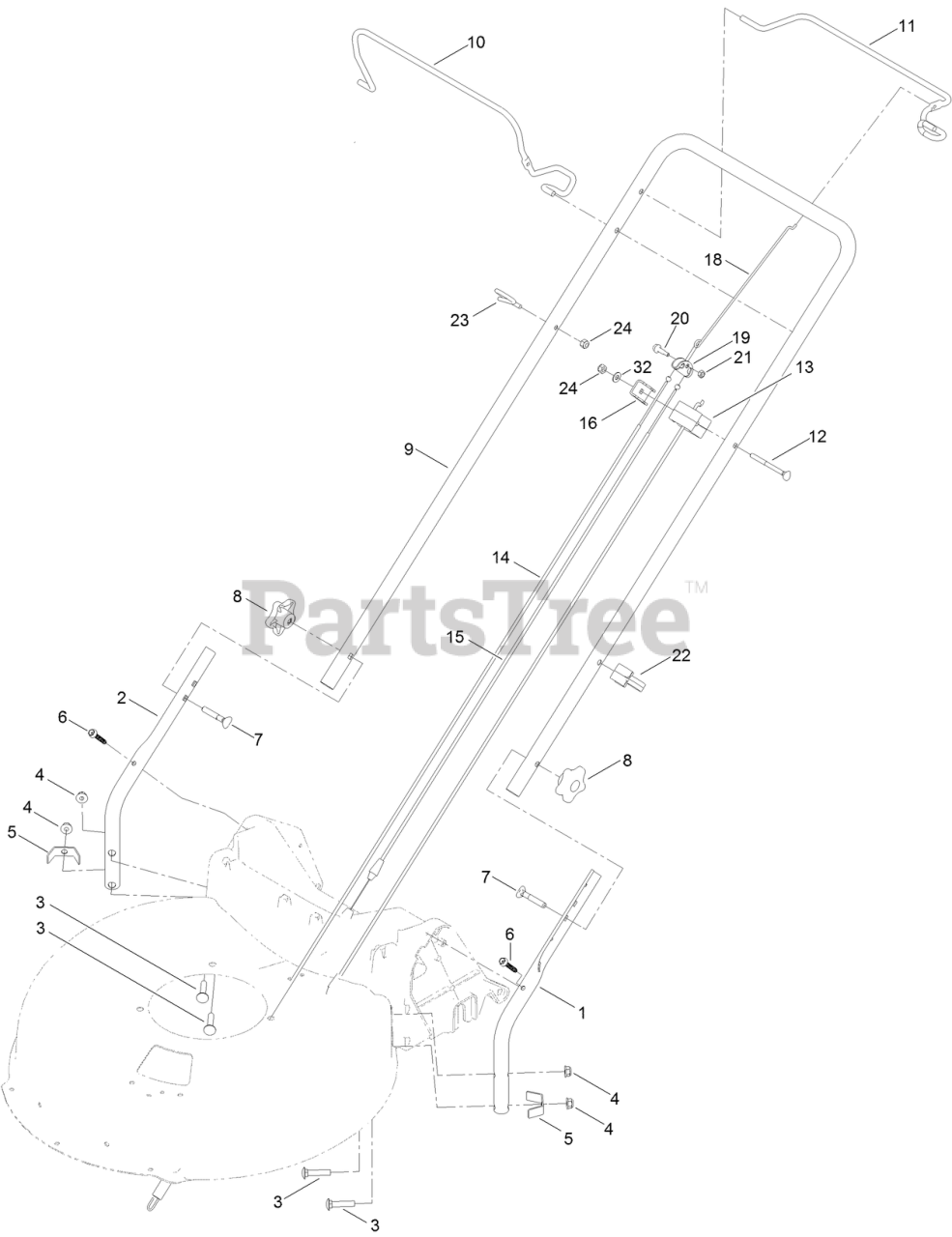

Handle Assembly Parts Diagram

  • Title

1

Lawn-Boy 136-5923-05

HANDLE-LOWER, LH

$47.99

$

In Stock, Qty 15

0

2

Lawn-Boy 136-5924-05

HANDLE-LOWER, RH

$23.99

$

In Stock, Qty 20+

0

3

Lawn-Boy 130-6654

BOLT-CARR

$1.49

$

In Stock, Qty 5

0

4

Lawn-Boy 130-6655

NUT-FLANGE, NI

$0.99

$

In Stock, Qty 17

0

5

Lawn-Boy 127-0699

BRACKET-CHUTE

$1.99

$

In Stock, only 4 left!

0

6

Lawn-Boy 130-6659

SCREW-FLANGE, SERRATED

$1.49

$

In Stock, Qty 15

0

7

Lawn-Boy 92-2260

SCREW-HANDLE

$3.99

$

In Stock, only 3 left!

0

8

Lawn-Boy 117-5976

KNOB-HANDLE

$2.99

$

In Stock, Qty 15

0

9

Lawn-Boy 127-0659-05

HANDLE-UPPER

$52.99

$

In Stock, only 1 left!

0

10

Lawn-Boy 138-3268-03

BAIL-BRAKE

$14.99

$

In Stock, only 1 left!

0

11

Lawn-Boy 127-0719-03

BAIL-TRACTION

$25.99

$

In Stock, only 3 left!

0

12

Lawn-Boy 92-2267

SCREW-HANDLE

$6.49

$

In Stock, only 4 left!

0

13

Lawn-Boy 132-4533

CABLE-BRAKE

$19.99

$

In Stock, only 1 left!

0

14

Lawn-Boy 133-1914

CABLE-TRACTION, FRONT

$17.99

$

In Stock, only 1 left!

0

15

Lawn-Boy 133-1915

CABLE-TRACTION, REAR

$12.99

$

Usually ships in 3-6 days

0

16

Lawn-Boy 136-5922

CLAMP-CABLE

$3.99

$

In Stock, Qty 18

0

18

Lawn-Boy 131-4515

LINKAGE, EQUALIZER
(Superseded to 140-3986)

$8.99

$

In Stock, Qty 10

0

19

Lawn-Boy 130-6719

YOKE-CABLE

$4.49

$

Usually ships in 3-6 days

0

20

Lawn-Boy 132-4519

SCREW-SHOULDER

$1.49

$

In Stock, Qty 5

0

21

Lawn-Boy 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

22

Lawn-Boy 114-7988

GUIDE-CABLE

$2.99

$

In Stock, Qty 7

0

23

Lawn-Boy 86-9671

GUIDE-ROPE

$4.49

$

In Stock, Qty 5

0

24

Lawn-Boy 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, only 3 left!

0

32

Lawn-Boy 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0
