17739 - Lawn-Boy 21" Walk-Behind Mower (SN: 316000001 - 316999999) (2016) Rear Wheel Assembly Parts Diagram

21" Walk-Behind Mower

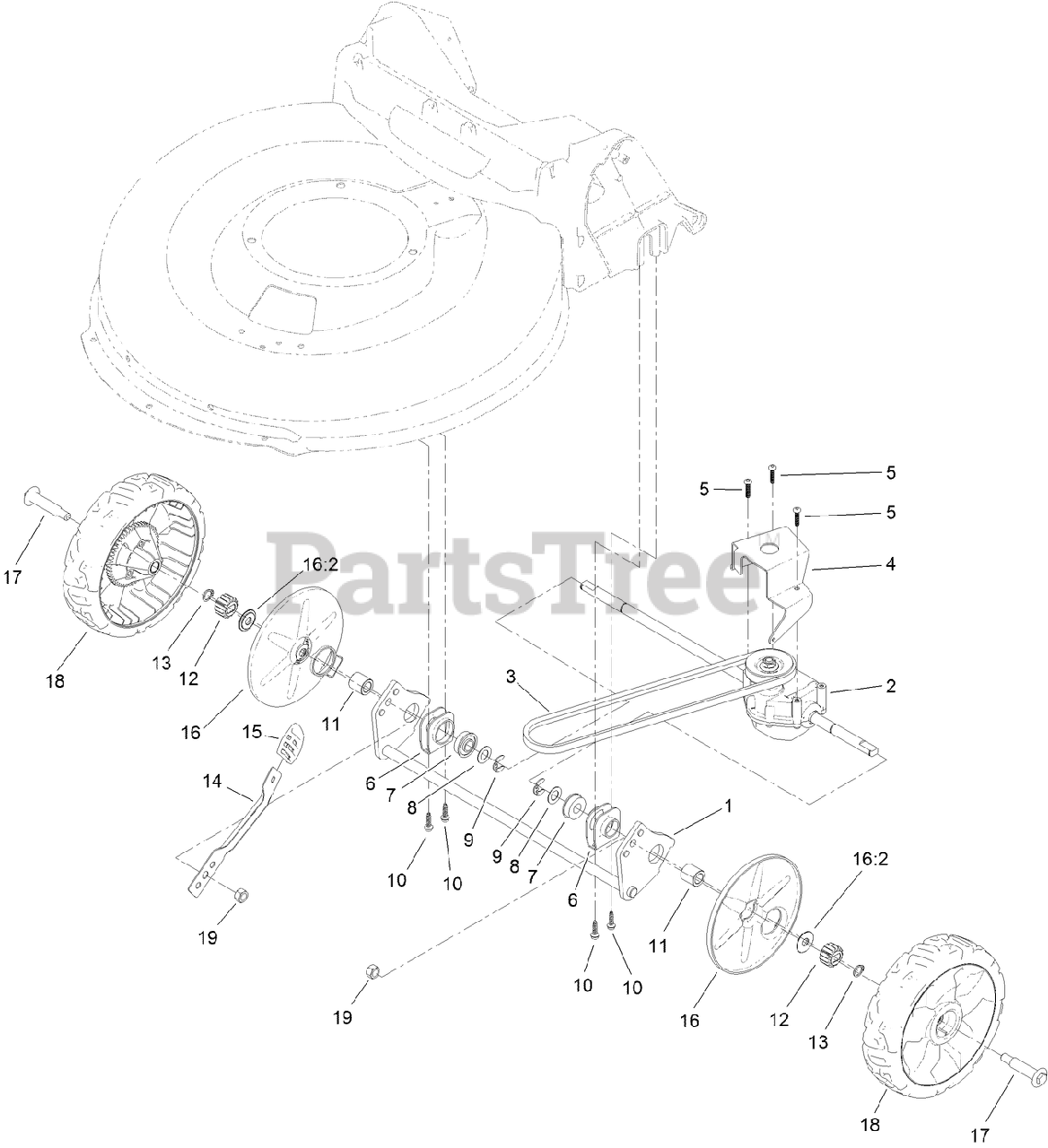

Rear Wheel Assembly Parts Diagram

  • Title

1

Lawn-Boy 127-0708-03

AXLE-REAR

$34.99

$

In Stock, only 1 left!

0

2

Lawn-Boy 130-6734

TRANSMISSION

$103.99

$

In Stock, only 4 left!

0

3

Lawn-Boy 110-9429

V-BELT

$17.99

$

In Stock, Qty 20+

0

4

Lawn-Boy 114-7977-03

BRACKET-TRANSMISSION

$13.99

$

In Stock, only 1 left!

0

5

Lawn-Boy 108-7476

SCREW-PLASTITE

$0.99

$

In Stock, Qty 20+

0

6

Lawn-Boy 127-0707

RETAINER-BEARING

$

$

Not available

7

Lawn-Boy 104-8699

BEARING-BALL

$4.99

$

In Stock, Qty 20+

0

8

Lawn-Boy 36-4780

WASHER-PLAIN

$7.99

$

In Stock, Qty 20+

0

9

Lawn-Boy 65-2720

RING-RETAINING,CLIP

$1.49

$

In Stock, Qty 20+

0

10

Lawn-Boy 127-6831

SCREW-HWH

$0.99

$

In Stock, Qty 20+

0

11

Lawn-Boy 127-6896

BUSHING-SLEEVE

$3.49

$

In Stock, Qty 20+

0

12

Lawn-Boy 131-0875

GEAR-PINION, 15T
(Superseded to 131-5399)

$5.49

$

In Stock, Qty 20+

0

13

Lawn-Boy 32151-61

RING-RETAINING

$2.99

$

In Stock, Qty 20+

0

14

Lawn-Boy 127-0711

ARM-SPRING

$6.99

$

In Stock, Qty 8

0

15

Lawn-Boy 105-3042

KNOB-LEVER, HOC

$4.49

$

In Stock, Qty 20+

0

16

Lawn-Boy 127-6840

WHEEL COVER ASM

$5.99

$

In Stock, Qty 20+

0

16:2

Lawn-Boy 614426

WASHER-STEPPED

$3.49

$

In Stock, Qty 20+

0

17

Lawn-Boy 92-1057

BOLT-SHOULDER

$3.99

$

In Stock, Qty 20+

0

18

Lawn-Boy 132-4538

See Supercession: 137-9187
(Superseded to 137-9187)

$39.99

$

In Stock, Qty 20+

0

19

Lawn-Boy 125-5069

NUT-HEX
(Superseded to 603773)

$2.99

$

In Stock, Qty 20+

0
