17739 - Lawn-Boy 21" Walk-Behind Mower (SN: 316000001 - 316999999) (2016) Front Wheel Assembly Parts Diagram

21" Walk-Behind Mower

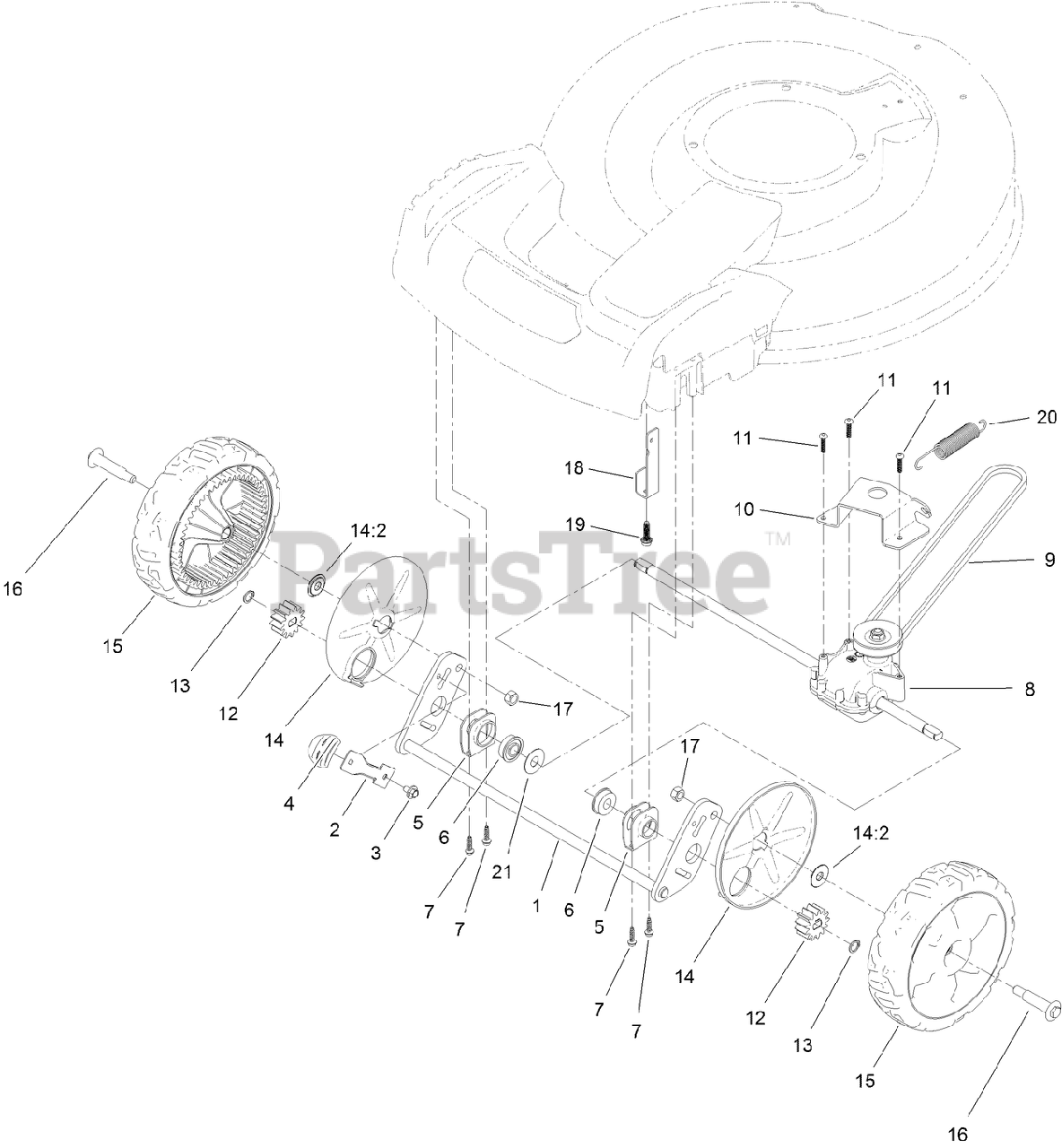

Front Wheel Assembly Parts Diagram

  • Title

1

Lawn-Boy 131-0833-03

AXLE-FRONT

$38.99

$

Usually ships in 3-6 days

0

2

Lawn-Boy 131-0842

ARM-SPRING

$12.99

$

In Stock, only 1 left!

0

3

Lawn-Boy 46-6810

SCREW AND WASHER ASM

$5.49

$

Usually ships in 3-6 days

0

4

Lawn-Boy 105-3042

KNOB-LEVER, HOC

$4.49

$

In Stock, Qty 5

0

5

Lawn-Boy 127-0707

RETAINER-BEARING

$

$

Not available

6

Lawn-Boy 104-8699

BEARING-BALL

$4.99

$

In Stock, Qty 17

0

7

Lawn-Boy 127-6831

SCREW-HWH

$0.99

$

In Stock, Qty 20+

0

8

Lawn-Boy 131-0845

TRANSMISSION
(Superseded to 137-4824)

$103.99

$

Usually ships in 3-6 days

0

9

Lawn-Boy 125-1011

BELT-V

$13.99

$

In Stock, Qty 10

0

10

Lawn-Boy 114-7978-03

BRACKET-TRANSMISSION

$11.99

$

In Stock, only 1 left!

0

11

Lawn-Boy 108-7476

SCREW-PLASTITE

$0.99

$

In Stock, Qty 10

0

12

Lawn-Boy 131-0896

GEAR-PINION, 13T

$6.99

$

In Stock, Qty 20+

0

13

Lawn-Boy 32151-61

RING-RETAINING

$2.99

$

In Stock, Qty 20+

0

14

Lawn-Boy 127-6840

WHEEL COVER ASM

$5.99

$

In Stock, Qty 11

0

14:2

Lawn-Boy 614426

WASHER-STEPPED

$3.49

$

In Stock, Qty 20+

0

15

Lawn-Boy 132-4535

8 INCH WHEEL ASM (FRONT, WHITE)
(Superseded to 137-9189)

$31.99

$

In Stock, only 2 left!

0

16

Lawn-Boy 92-1057

BOLT-SHOULDER

$3.99

$

In Stock, Qty 9

0

17

Lawn-Boy 125-5069

NUT-HEX
(Superseded to 603773)

$2.99

$

In Stock, Qty 8

0

18

Lawn-Boy 131-0877-03

BRACKET-ANCHOR, CABLE

$5.49

$

Usually ships in 3-6 days

0

19

Lawn-Boy 130-6658

SCREW-FLANGE, PLASTIC

$1.49

$

In Stock, Qty 6

0

20

Lawn-Boy 131-4560

SPRING-EXTENSION

$7.99

$

In Stock, only 1 left!

0

21

Lawn-Boy 110-7179

WASHER-PLAIN

$

$

Currently unavailable
